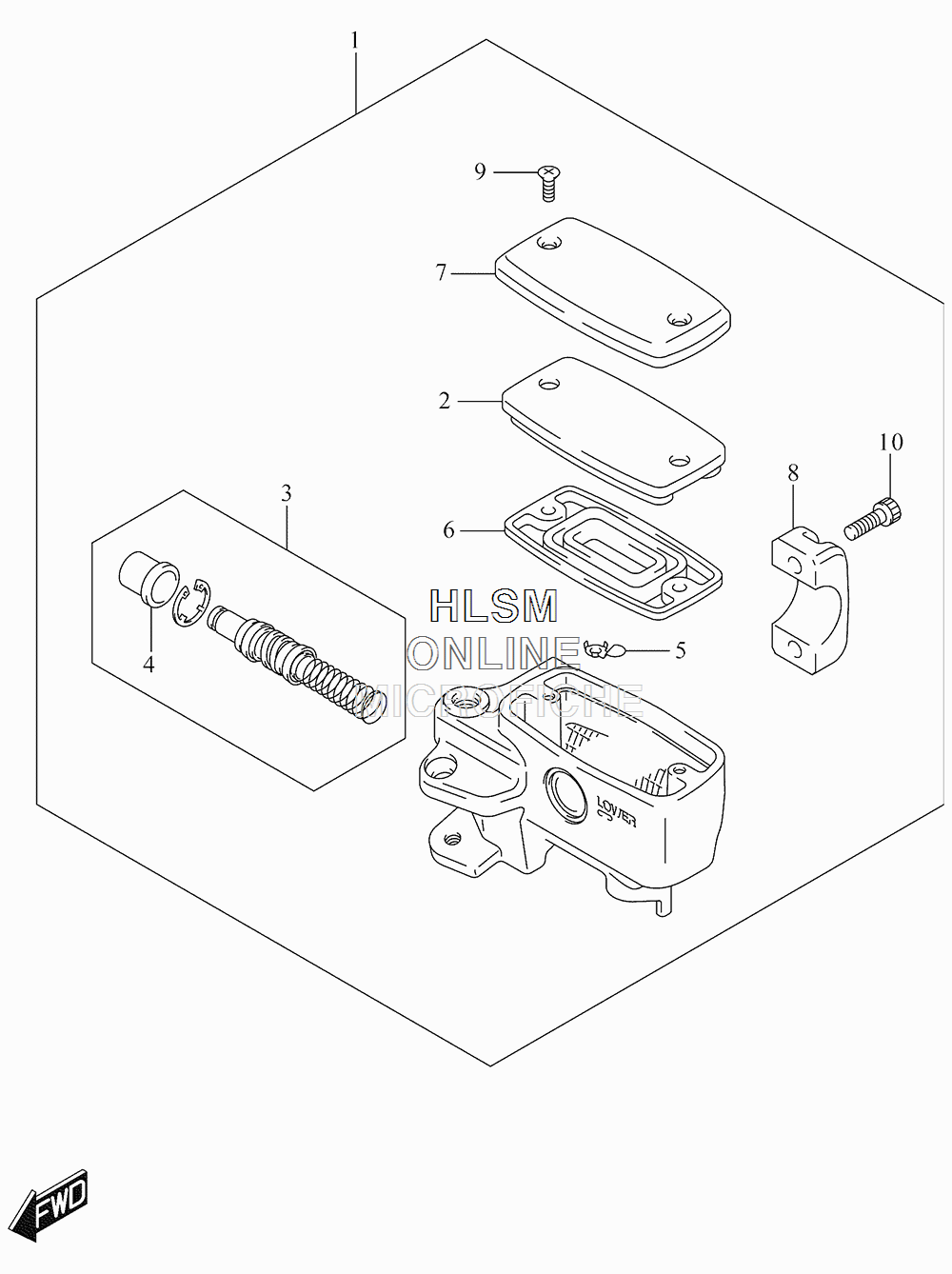

BRAKE - FRONT MASTER CYLINDER для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
159600-10F61 CYLINDER ASSY, FRONT MASTERCYLINDER ASSY, FRONT MASTER
-
257437-10F00 ...PLATE, DIAPHRAGM...PLATE, DIAPHRAGM
-
359601-45810 ...PISTON/CUP SET...PISTON/CUP SET
-
459666-44300 ......BOOT......BOOT
-
559664-32F00 ...PROTECTOR...PROTECTOR
-
659667-10F00 ...DIAPHRAGM...DIAPHRAGM
-
759669-10F10 ...CAP...CAP
-
859671-10F00 ...HOLDER...HOLDER
-
902122-04127 ...SCREW...SCREW
-
1007130-06207 ...BOLT...BOLT
