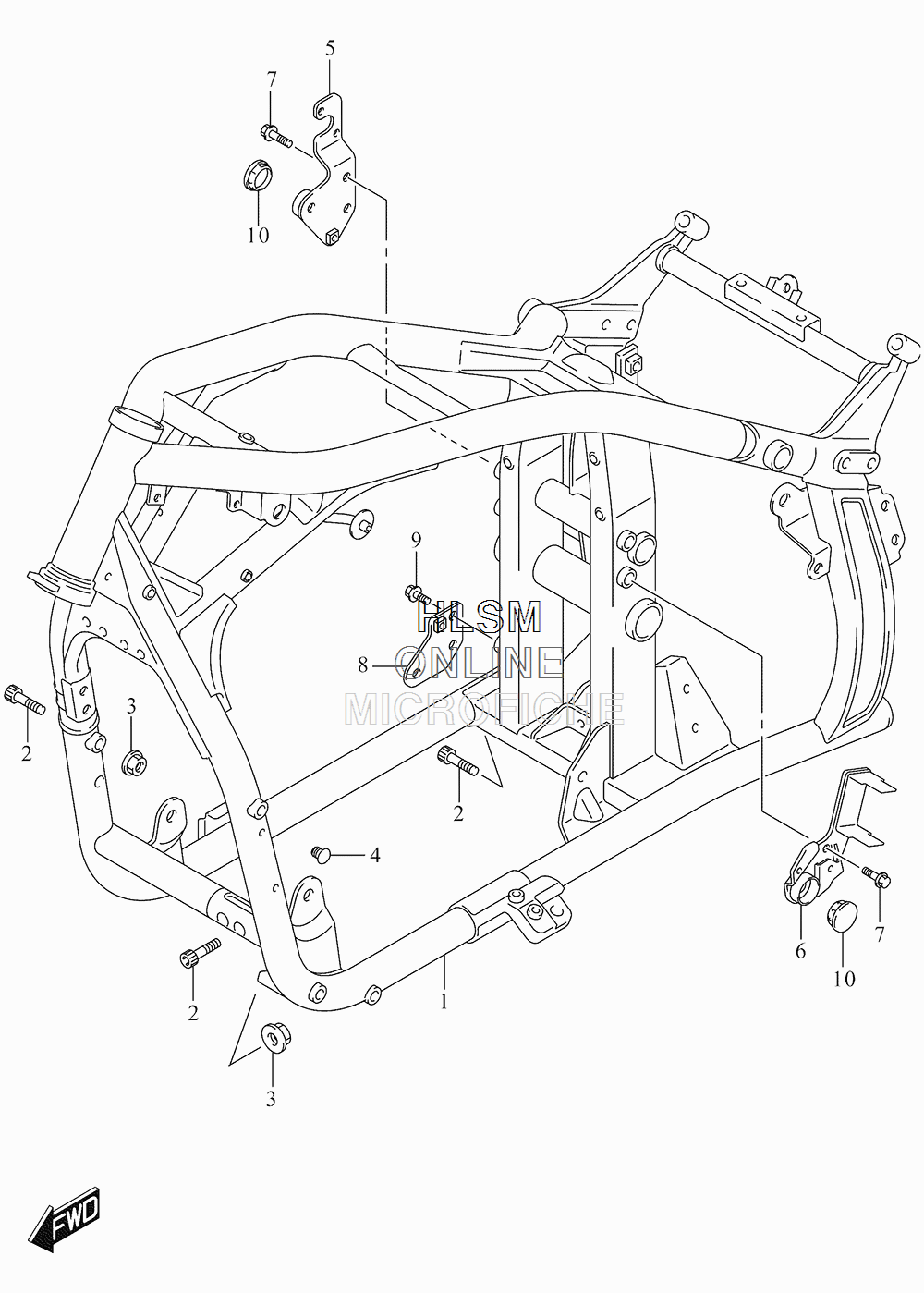

FRAME для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
141100-40H20-019 FRAME (BLACK)FRAME (BLACK)
-
207130-1035B BOLTBOLT
-
308319-3110A NUTNUT
-
409250-09001 CAP (OD:14)CAP (OD:14)
-
541930-40H10 PLATE, MOUNT REAR RIGHT HANDPLATE, MOUNT REAR RIGHT HAND
-
641940-40H10 PLATE, MOUNT REAR LEFT HANDPLATE, MOUNT REAR LEFT HAND
-
701550-0820A BOLTBOLT
-
841951-40H00 PLATE, MOUNT REAR LOWER RIGHT HANDPLATE, MOUNT REAR LOWER RIGHT HAND
-
901550-0820A BOLTBOLT
-
1043585-48G10 CAPCAP
