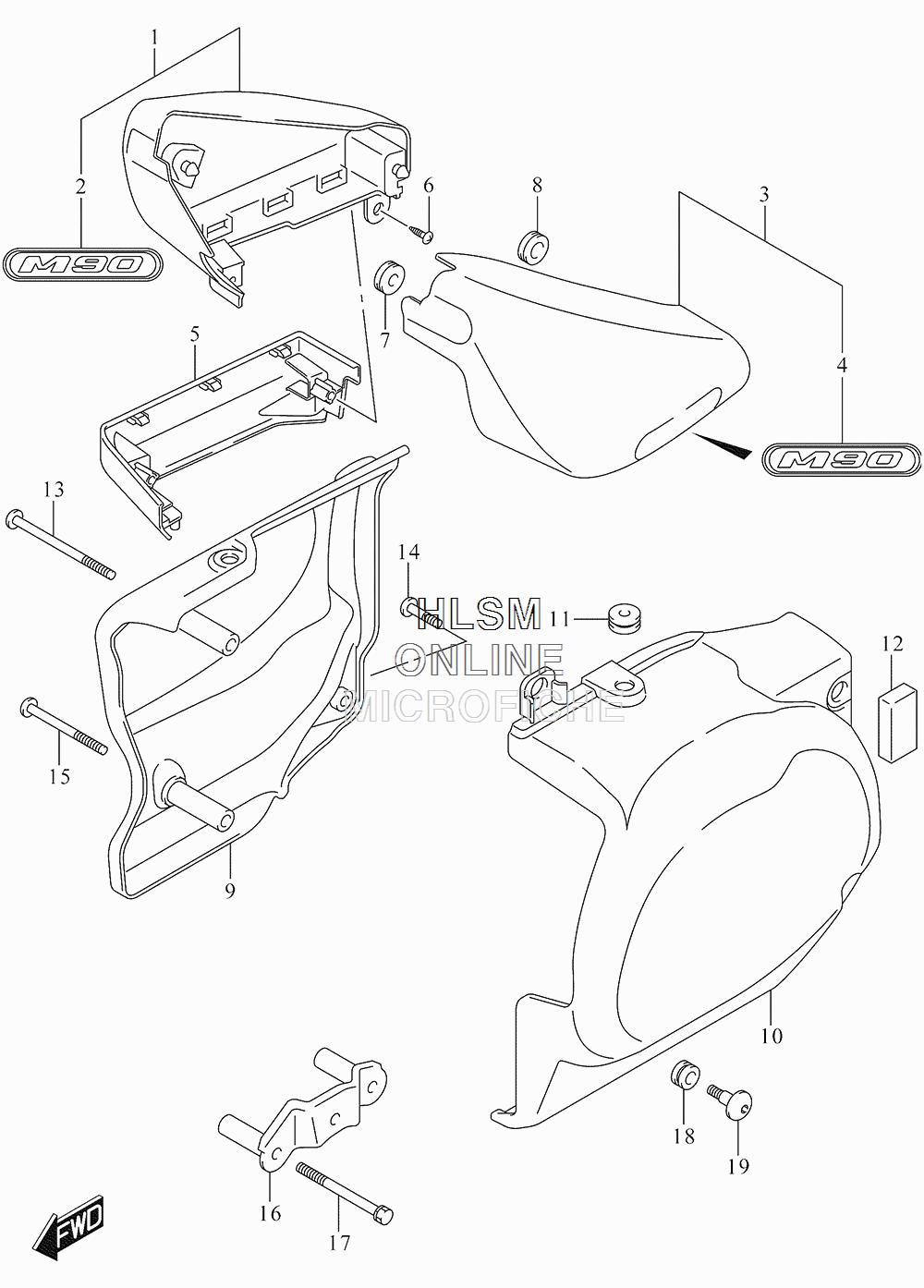

SIDE COVER для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска

№

Артикул

Название
1

47110-40H01-YVB COVER, SIDE RIGHT HAND (BLACK)

COVER, SIDE RIGHT HAND (BLACK)
1

47110-40H01-YWW COVER, SIDE RIGHT HAND (WHITE)

COVER, SIDE RIGHT HAND (WHITE)
2

68131-40H01 ...EMBLEM

...EMBLEM
3

47210-40H01-YVB COVER, SIDE LEFT HAND (BLACK)

COVER, SIDE LEFT HAND (BLACK)
3

47210-40H01-YWW COVER, SIDE LEFT HAND (WHITE)

COVER, SIDE LEFT HAND (WHITE)
4

68131-40H01 ...EMBLEM

...EMBLEM
5

47121-40H00 COVER, SIDE LOWER RIGHT HAND

COVER, SIDE LOWER RIGHT HAND
6

03541-0516A SCREW

SCREW
7

09320-08049 CUSHION

CUSHION
8

09320-08018 CUSHION

CUSHION
9

47130-40H00 COVER, LOWER RIGHT HAND

COVER, LOWER RIGHT HAND
10

47231-40H00 COVER, LOWER LEFT HAND

COVER, LOWER LEFT HAND
11

09320-06504 CUSHION

CUSHION
12

51827-01A00 CUSHION, LEFT HAND

CUSHION, LEFT HAND
13

47139-40H00 SCREW, RIGHT HAND FRONT UPPER

SCREW, RIGHT HAND FRONT UPPER
14

09139-06140 SCREW (6X16)

SCREW (6X16)
15

47138-40H00 SCREW, RIGHT HAND FRONT LOWER

SCREW, RIGHT HAND FRONT LOWER
16

47250-06J00 BRACKET, LOWER LEFT HAND

BRACKET, LOWER LEFT HAND
17

01547-0650A BOLT

BOLT
18

09320-09016 CUSHION

CUSHION
19

09139-06126 SCREW (6X20)

SCREW (6X20)
