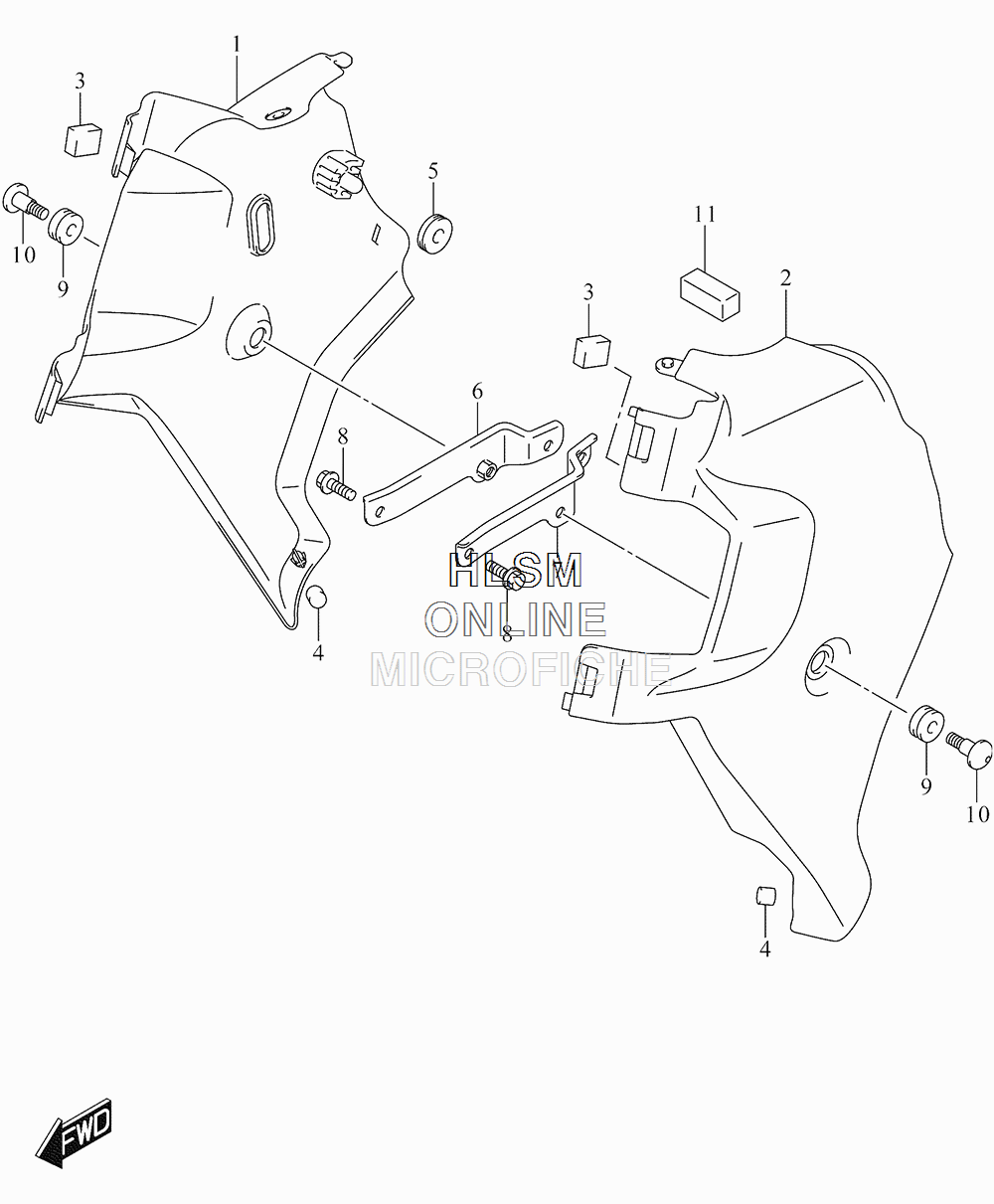

FRAME HEAD COVER для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
147351-40H00-019 COVER, FRAME HEAD RIGHT HAND (BLACK)COVER, FRAME HEAD RIGHT HAND (BLACK)
-
247361-40H00-019 COVER, FRAME HEAD LEFT HAND (BLACK)COVER, FRAME HEAD LEFT HAND (BLACK)
-
317798-39G00 CUSHIONCUSHION
-
409250-12013 CAP (OD:12.3)CAP (OD:12.3)
-
509320-08018 CUSHIONCUSHION
-
647370-40H00 PLATE, HEAD COVER RIGHT HANDPLATE, HEAD COVER RIGHT HAND
-
747380-40H00 PLATE, HEAD COVER LEFT HANDPLATE, HEAD COVER LEFT HAND
-
801547-0616A BOLTBOLT
-
909320-09016 CUSHIONCUSHION
-
1009139-06179 BOLT (6X20)BOLT (6X20)
-
1147191-22D00 CUSHION, UPPERCUSHION, UPPER
