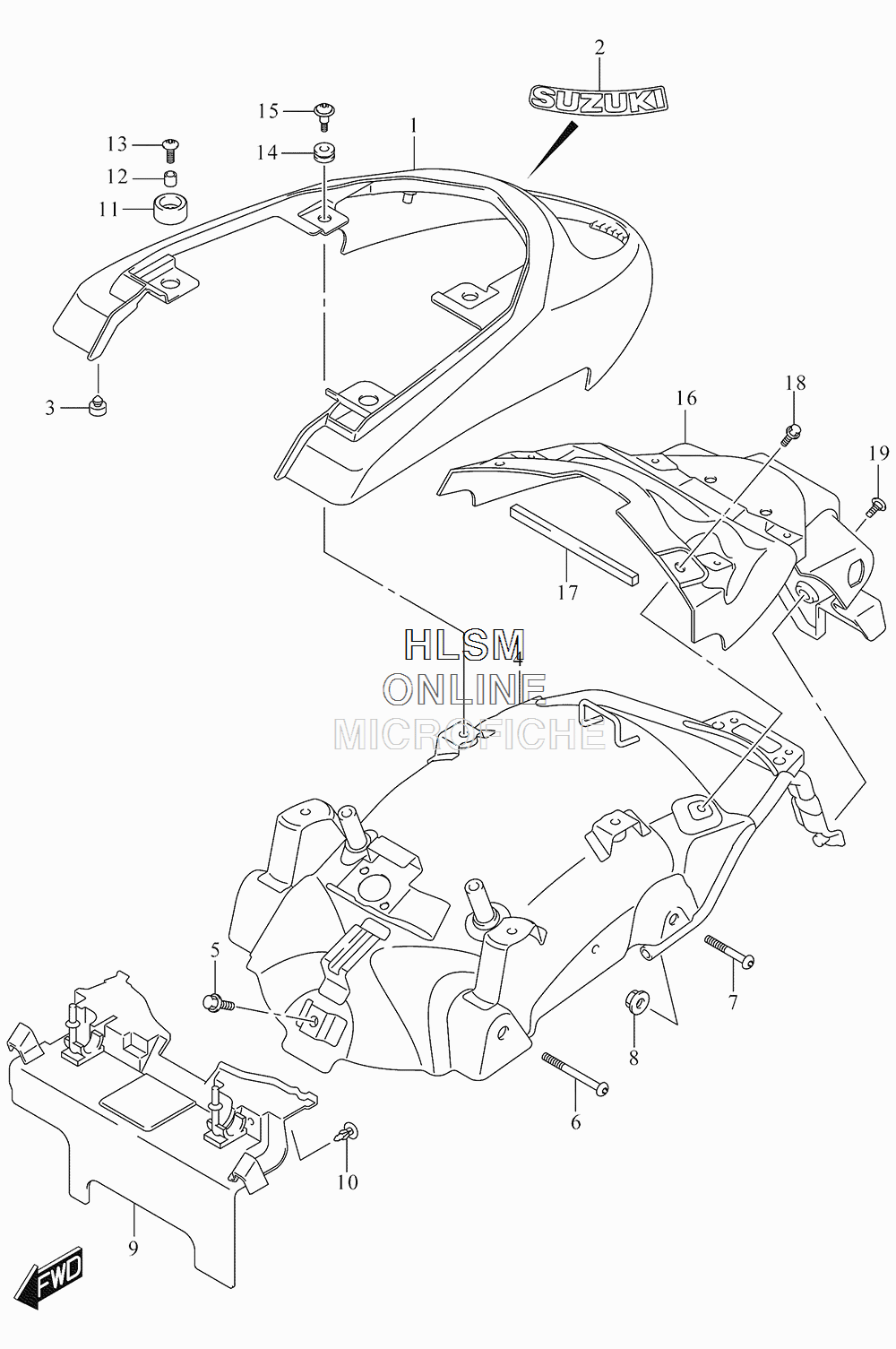

FENDER - REAR для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска

№

Артикул

Название
1

63110-40H00-YVB FENDER, REAR (BLACK)

FENDER, REAR (BLACK)
1

63110-40H00-YWW FENDER, REAR (WHITE)

FENDER, REAR (WHITE)
2

68641-19F00-YES ...EMBLEM (SILVER) (FOR YVB)

...EMBLEM (SILVER) (FOR YVB)
2

68641-19F00-YJH ...EMBLEM (GRAY) (FOR YWW)

...EMBLEM (GRAY) (FOR YWW)
3

09250-06012 ...PLUG (OD:10)

...PLUG (OD:10)
4

63140-40H10 BRACE, FENDER

BRACE, FENDER
5

01550-0812A BOLT

BOLT
6

09106-08182 BOLT (8X70)

BOLT (8X70)
7

09106-08183 BOLT (8X50)

BOLT (8X50)
8

08316-1008A NUT

NUT
9

63112-40H00 MUDGUARD, FRONT

MUDGUARD, FRONT
10

09409-06318 CLIP

CLIP
11

09320-10045 CUSHION

CUSHION
12

09180-06286 SPACER (6.5X10X9.4)

SPACER (6.5X10X9.4)
13

09139-06139 SCREW (6X16)

SCREW (6X16)
14

09320-09016 CUSHION

CUSHION
15

09139-06190 BOLT (6X20)

BOLT (6X20)
16

63311-40H00 EXTENSION

EXTENSION
17

47161-29B00 CUSHION

CUSHION
18

09111-06107 BOLT (6X12)

BOLT (6X12)
19

09139-06144 SCREW (6X12)

SCREW (6X12)
