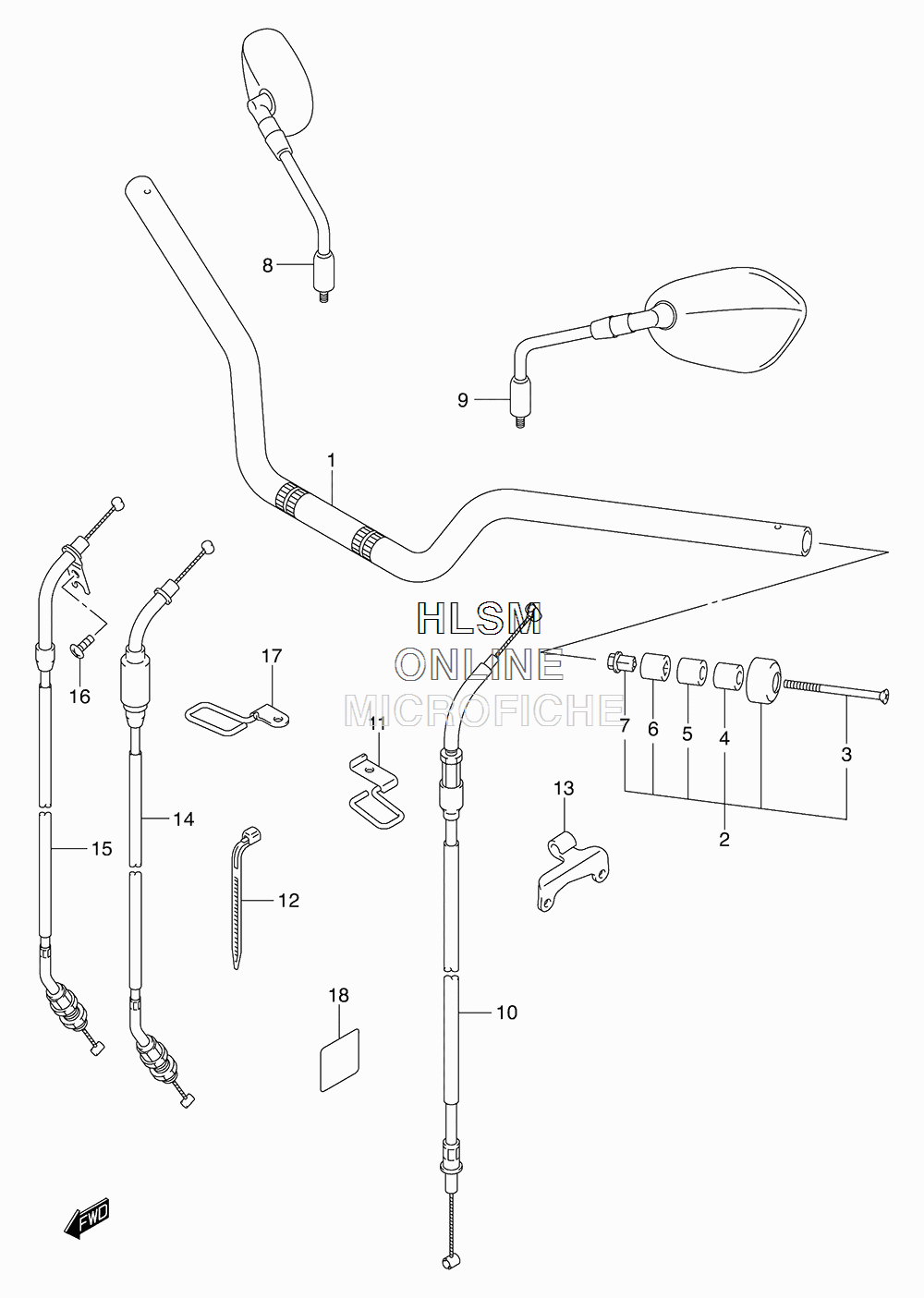

HANDLEBAR для Suzuki SFV650A ABS L3 - 2013 года выпуска

№

Артикул

Название
1

56111-44H00 HANDLEBAR

HANDLEBAR
2

56200-41830 BALANCER SET, HANDLEBAR

BALANCER SET, HANDLEBAR
3

02122-0670B ...SCREW

...SCREW
4

56272-42F00 ...EXPANDER, OUTER

...EXPANDER, OUTER
5

09180-06161 ...SPACER (6.5X16X15)

...SPACER (6.5X16X15)
6

56272-10G00 ...EXPANDER, INNER

...EXPANDER, INNER
7

56273-10G10 ...NUT

...NUT
8

56500-08J10 MIRROR ASSY, REAR VIEW RH

MIRROR ASSY, REAR VIEW RH
9

56600-08J10 MIRROR ASSY, REAR VIEW LH

MIRROR ASSY, REAR VIEW LH
10

58200-44H00 CABLE ASSY, CLUTCH

CABLE ASSY, CLUTCH
11

58630-44H00 GUIDE, CLUTCH CABLE

GUIDE, CLUTCH CABLE
12

09407-18402 CLAMP (L:165)

CLAMP (L:165)
13

58634-44H00 STOPPER, CLUTCH CABLE

STOPPER, CLUTCH CABLE
14

58300-44H00 CABLE ASSY, THROTTLE NO.1

CABLE ASSY, THROTTLE NO.1
15

58300-44H10 CABLE ASSY, THROTTLE NO.2

CABLE ASSY, THROTTLE NO.2
16

09125-05042 SCREW (5X10)

SCREW (5X10)
17

58620-44H20 GUIDE, THROTTLE CABLE NO.1

GUIDE, THROTTLE CABLE NO.1
18

87873-56K50 TAPE, HEAD PIPE

TAPE, HEAD PIPE
