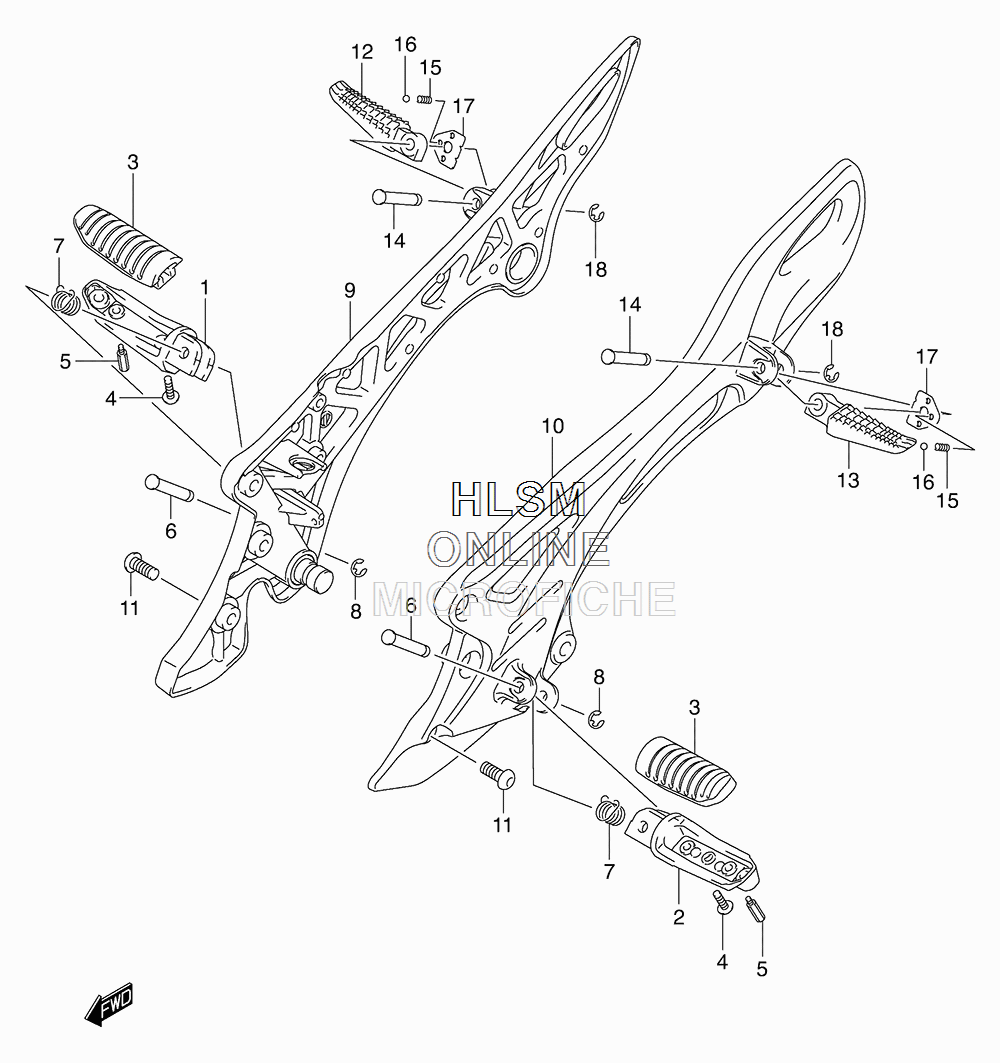

FOOTREST для Suzuki SFV650A ABS L3 - 2013 года выпуска
-
№АртикулНазвание
-
143511-44G10 BAR, FRONT FOOTREST RIGHTBAR, FRONT FOOTREST RIGHT
-
243521-44G10 BAR, FRONT FOOTREST LEFTBAR, FRONT FOOTREST LEFT
-
343550-44G10 RUBBERRUBBER
-
402142-0512A SCREWSCREW
-
543576-48B30 BOLT, BANK SENSORBOLT, BANK SENSOR
-
609208-08019 PINPIN
-
709448-14046 SPRINGSPRING
-
808332-1106A E RINGE RING
-
943510-44H00-20H BRACKET, FOOTREST RIGHT HAND (SILVER)BRACKET, FOOTREST RIGHT HAND (SILVER)
-
1043521-44H00-20H BRACKET, FOOTREST LEFT HAND (SILVER)BRACKET, FOOTREST LEFT HAND (SILVER)
-
1109106-08186 BOLT (8X23)BOLT (8X23)
-
1243611-37H00 BAR, PILLION RIGHTBAR, PILLION RIGHT
-
1343621-37H00 BAR, PILLION LEFTBAR, PILLION LEFT
-
1409208-08020 PINPIN
-
1509440-05003 SPRINGSPRING
-
1606111-07004 BALLBALL
-
1743816-01H10 PLATEPLATE
-
1808332-1106A E RINGE RING
