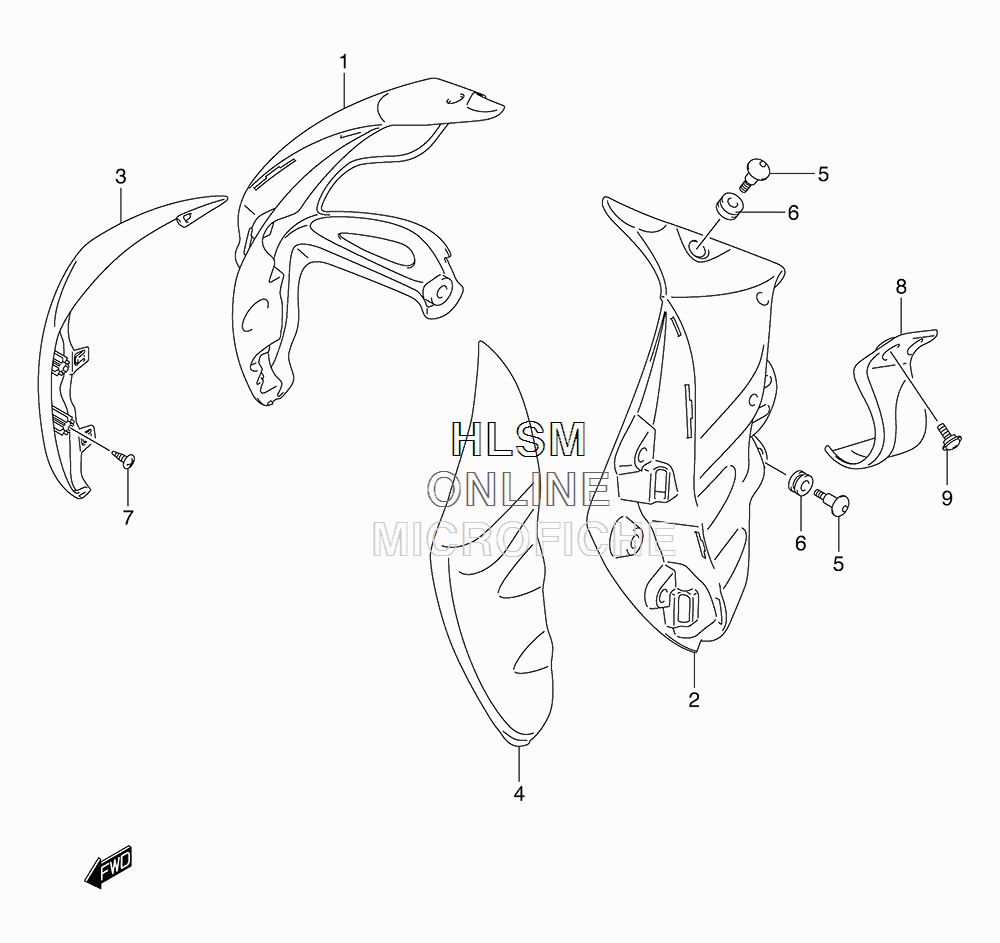

BODY COVER для Suzuki SFV650A ABS L3 - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    47531-44H00 COVER, FRAME BODY RH
    COVER, FRAME BODY RH
  • 2
    47532-44H00-YLF COVER, BODY INNER RIGHT HAND (GRAY) (FOR AA3)
    COVER, BODY INNER RIGHT HAND (GRAY) (FOR AA3)
  • 2
    47532-44H00-YWW COVER, BODY INNER RIGHT HAND (WHITE) (FOR AJP)
    COVER, BODY INNER RIGHT HAND (WHITE) (FOR AJP)
  • 2
    47532-44H00-YKV COVER, BODY INNER RIGHT HAND (BLACK) (FOR KGL)
    COVER, BODY INNER RIGHT HAND (BLACK) (FOR KGL)
  • 3
    47541-44H00 COVER, FRAME BODY LH
    COVER, FRAME BODY LH
  • 4
    47542-44H00-YLF COVER, BODY INNER LEFT HAND (GRAY) (FOR AA3)
    COVER, BODY INNER LEFT HAND (GRAY) (FOR AA3)
  • 4
    47542-44H00-YWW COVER, BODY INNER LEFT HAND (WHITE) (FOR AJP)
    COVER, BODY INNER LEFT HAND (WHITE) (FOR AJP)
  • 4
    47542-44H00-YKV COVER, BODY INNER LEFT HAND (BLACK) (FOR KGL)
    COVER, BODY INNER LEFT HAND (BLACK) (FOR KGL)
  • 5
    09139-06126 SCREW (6X20)
    SCREW (6X20)
  • 6
    09320-09016 CUSHION
    CUSHION
  • 7
    03541-0512B SCREW
    SCREW
  • 8
    47543-44H00 COVER, BODY REAR LH
    COVER, BODY REAR LH
  • 9
    09139-05064 SCREW (5X13)
    SCREW (5X13)
