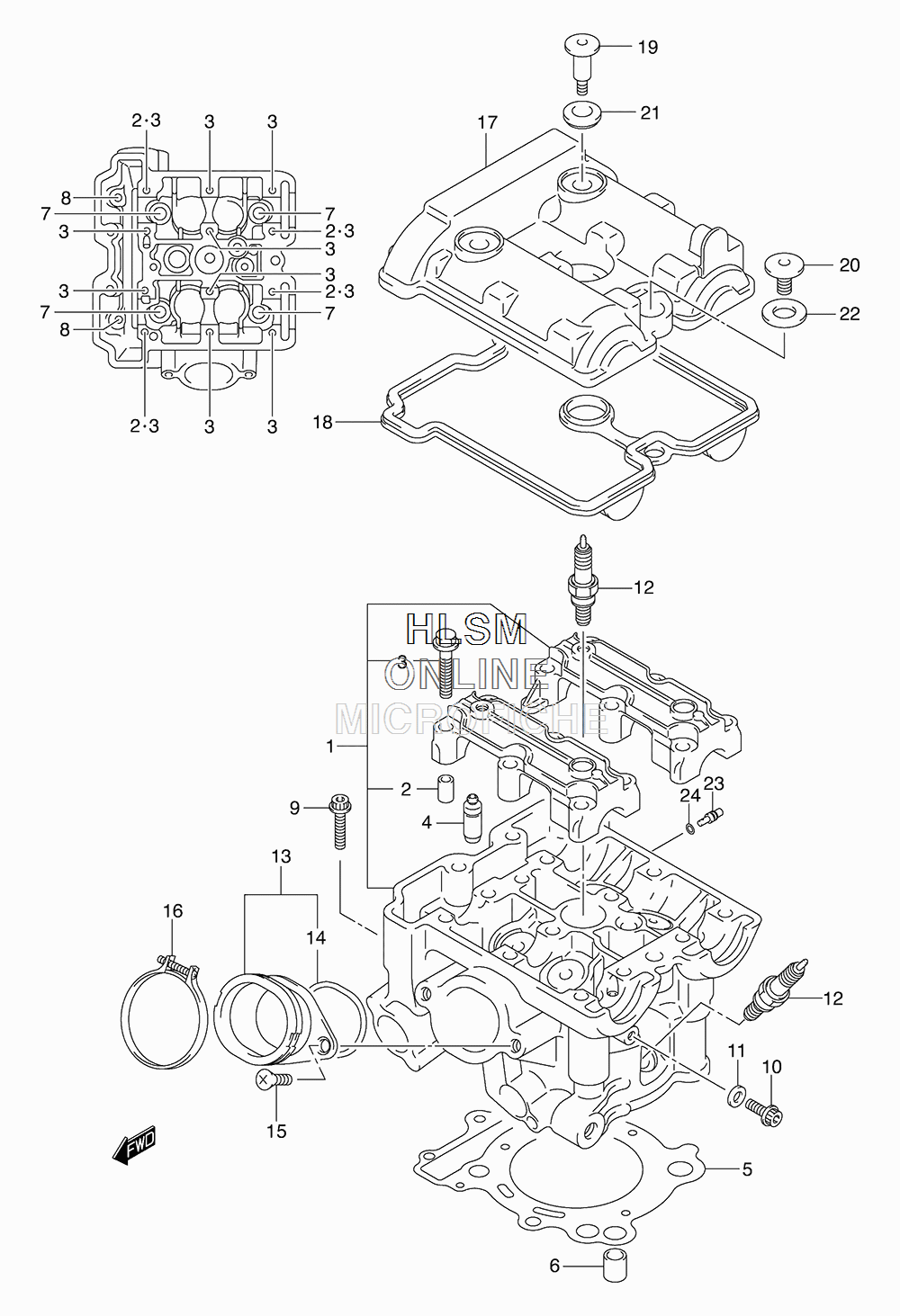

CYLINDER HEAD (REAR) для Suzuki SFV650A ABS L3 - 2013 года выпуска

№

Артикул

Название
1

11103-44H10 HEAD ASSY, CYLINDER REAR

HEAD ASSY, CYLINDER REAR
2

09206-08001 ...PIN (8X11)

...PIN (8X11)
3

09103-06266 ...BOLT (6X40)

...BOLT (6X40)
4

11115-18D72 GUIDE, VALVE (OPT)

GUIDE, VALVE (OPT)
5

11141-20F00 GASKET, CYLINDER HEAD

GASKET, CYLINDER HEAD
6

04211-13189 PIN

PIN
7

11117-44H00 BOLT (10X160)

BOLT (10X160)
8

09103-06103 BOLT (6X70)

BOLT (6X70)
9

07120-0640A BOLT

BOLT
10

09103-06222 BOLT (6X12)

BOLT (6X12)
11

09168-06023 GASKET (5.8X13X1.2)

GASKET (5.8X13X1.2)
12

09482-00556 SPARK PLUG (NGK,CR8EIA-9)

SPARK PLUG (NGK,CR8EIA-9)
12

09482-00555 SPARK PLUG (DENSO,IU24D)

SPARK PLUG (DENSO,IU24D)
12

09482-00558 SPARK PLUG (NGK,CR9EIA-9) (OPT)

SPARK PLUG (NGK,CR9EIA-9) (OPT)
12

09482-00557 SPARK PLUG (DENSO,IU27D) (OPT)

SPARK PLUG (DENSO,IU27D) (OPT)
12

09482-00554 SPARK PLUG (NGK,CR7EIA-9) (OPT)

SPARK PLUG (NGK,CR7EIA-9) (OPT)
13

13102-17G10 PIPE ASSY, INTAKE REAR

PIPE ASSY, INTAKE REAR
14

09280-46006 ...O RING (D:2.4,ID:47X42)

...O RING (D:2.4,ID:47X42)
15

02122-0616B SCREW

SCREW
16

13827-40H01 CLAMP

CLAMP
17

11172-19F20 COVER, CYLINDER HEAD REAR

COVER, CYLINDER HEAD REAR
18

11173-19F01 GASKET, CYLINDER HEAD COVER

GASKET, CYLINDER HEAD COVER
19

09106-07009 BOLT (7X17.5)

BOLT (7X17.5)
20

09106-07010 BOLT (7X31)

BOLT (7X31)
21

11191-27E00 WASHER

WASHER
22

11192-13E00 CUSHION, HEAD COVER BOLT

CUSHION, HEAD COVER BOLT
23

09493-80005 JET (8)

JET (8)
24

09280-04004 O RING (D:1.2,ID:4)

O RING (D:1.2,ID:4)
