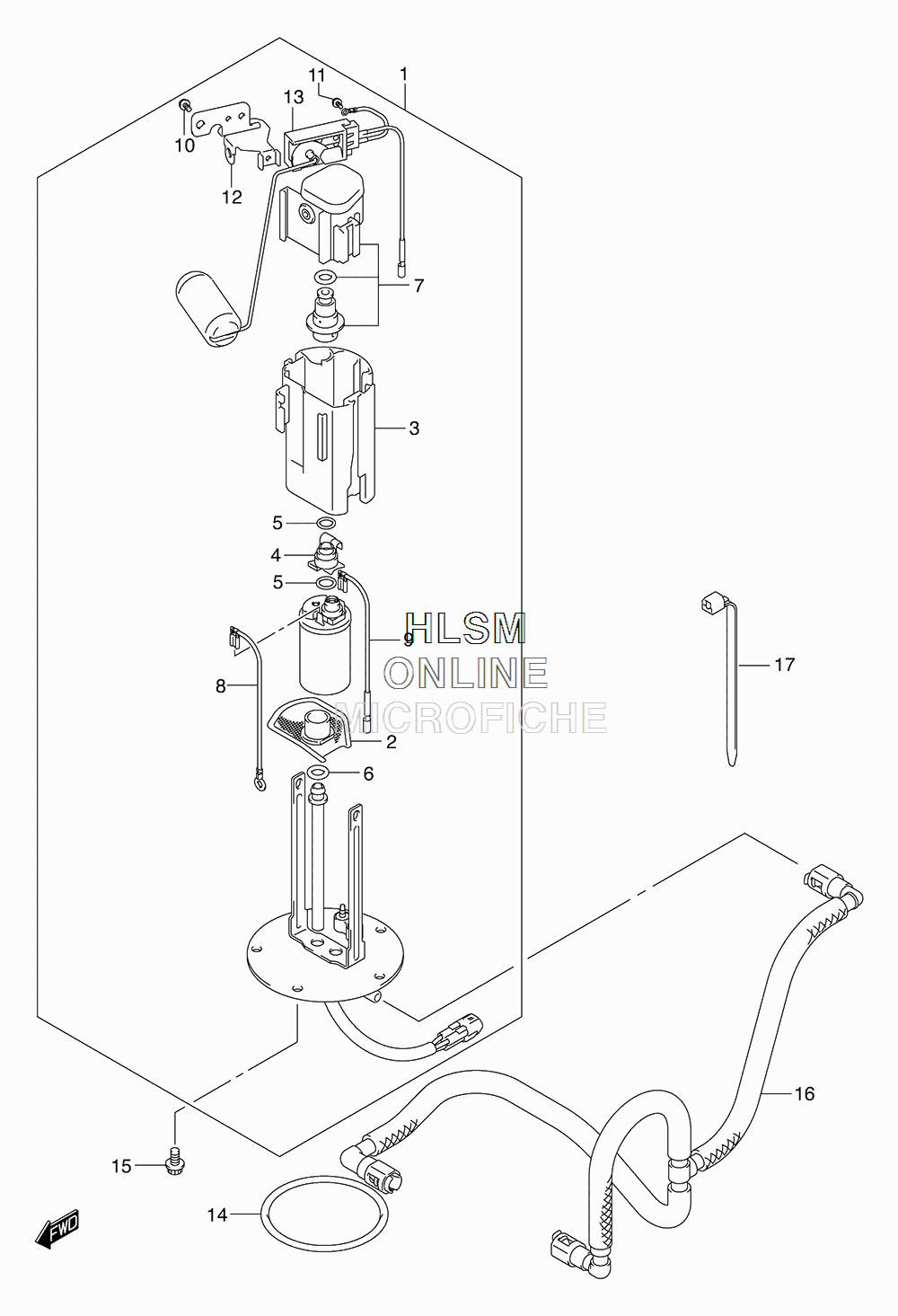

FUEL PUMP для Suzuki SFV650A ABS L3 - 2013 года выпуска
-
№АртикулНазвание
-
115100-44H00 PUMP ASSY, FUELPUMP ASSY, FUEL
-
215420-05H00 ...STRAINER...STRAINER
-
315111-27G00 ...CUP, RESERVOIR...CUP, RESERVOIR
-
415112-05H00 ...JOINT...JOINT
-
515113-05H00 ...O RING...O RING
-
615113-35F00 ...O RING...O RING
-
715610-27G00 ...REGULATOR...REGULATOR
-
815114-27G00 ...WIPE, EARTH...WIPE, EARTH
-
915115-27G00 ...WIRE, LEAD...WIRE, LEAD
-
1015116-44H00 ...SCREW...SCREW
-
1115116-10F00 ...SCREW...SCREW
-
1215181-44H00 ...BRACKET, FUEL GAUGE...BRACKET, FUEL GAUGE
-
1334810-44H00 ...GAUGE ASSY...GAUGE ASSY
-
1415201-35F00 O RING, FUEL PUMPO RING, FUEL PUMP
-
1507120-0612A BOLTBOLT
-
1615810-44H01 HOSE, FUELHOSE, FUEL
-
1709407-18402 CLAMP (L:165)CLAMP (L:165)
