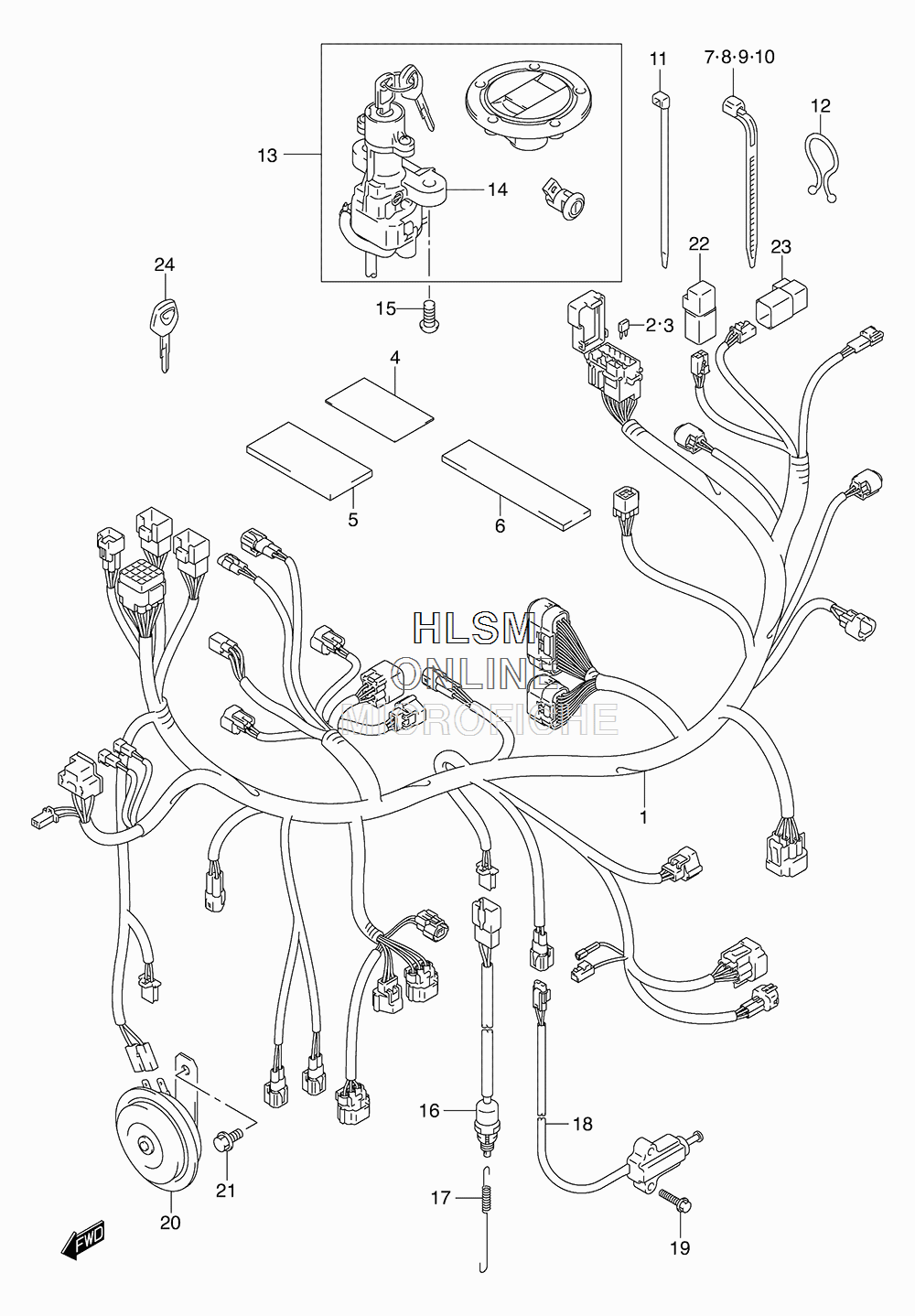

ELECTRICAL - WIRING HARNESS для Suzuki SFV650A ABS L3 - 2013 года выпуска

№

Артикул

Название
1

36610-44HH0 HARNESS, WIRING

HARNESS, WIRING
2

09481-10501 ...FUSE (10A)

...FUSE (10A)
3

09481-15501 ...FUSE (15A)

...FUSE (15A)
4

36654-06J00 CAP, TS

CAP, TS
5

36611-16G00 PROTECTOR (28X50X0.13)

PROTECTOR (28X50X0.13)
6

36920-08D00 PROTECTOR (30X60X3)

PROTECTOR (30X60X3)
7

94474-22D00 PROTECTOR (30X70)

PROTECTOR (30X70)
8

33652-26E00 PROTECTOR (20X90X1)

PROTECTOR (20X90X1)
9

09407-11401 CLAMP (L:95)

CLAMP (L:95)
10

09407-14403 CLAMP (L:125)

CLAMP (L:125)
11

09407-18402 CLAMP (L:165)

CLAMP (L:165)
12

09407-19401 CLAMP (L:190)

CLAMP (L:190)
13

09407-14407 CLAMP (L:145)

CLAMP (L:145)
14

36859-44H00 WIRE, ABS LEAD

WIRE, ABS LEAD
15

37000-17860 LOCK SET

LOCK SET
16

37100-16G40 ...LOCK ASSY, STEERING

...LOCK ASSY, STEERING
17

09139-08016 BOLT (8X20)

BOLT (8X20)
18

37740-44H01 SWITCH ASSY, STOP LAMP

SWITCH ASSY, STOP LAMP
19

09443-06016 SPRING

SPRING
20

37840-25D00 SWITCH ASSY, SIDE STAND

SWITCH ASSY, SIDE STAND
21

01547-0620A BOLT

BOLT
22

38500-16G01 HORN ASSY

HORN ASSY
23

01550-0812A BOLT

BOLT
24

38740-24X50 RELAY ASSY, FUEL PUMP

RELAY ASSY, FUEL PUMP
25

38740-24X50 RELAY ASSY, FAN MOTOR

RELAY ASSY, FAN MOTOR
26

37146-33E00 KEY, BLANK (OPT)

KEY, BLANK (OPT)
