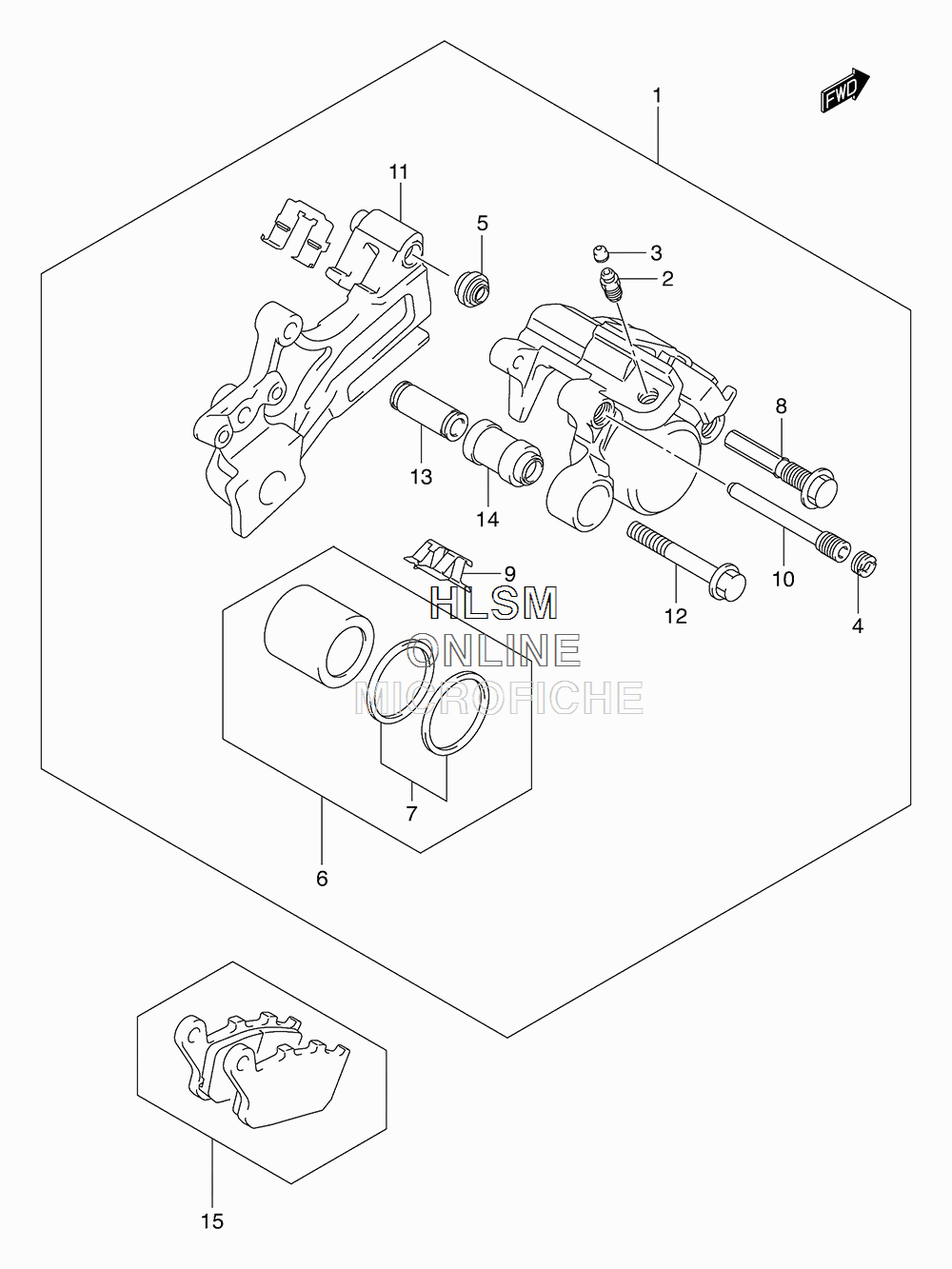

BRAKE - REAR CALIPER для Suzuki SFV650A ABS L3 - 2013 года выпуска`
-
№АртикулНазвание
-
169100-44H10-999 CALIPER ASSY, RRCALIPER ASSY, RR
-
259121-01A00 ...BLEEDER...BLEEDER
-
359122-46H00 ...CAP, BLEEDER...CAP, BLEEDER
-
459146-21E10 ...PLUG, PIN...PLUG, PIN
-
559303-14500 ...BOOT...BOOT
-
669101-44860 ...PISTON SET...PISTON SET
-
769100-04820 ......SEAL SET, PISTON......SEAL SET, PISTON
-
869105-04F00 ...BOLT...BOLT
-
969115-06G00 ...SPRING, PAD...SPRING, PAD
-
1069141-40F00 ...PIN, PAD...PIN, PAD
-
1169150-44H10 ...BRACKET...BRACKET
-
1269182-04F00 ...BOLT...BOLT
-
1369185-04F00 ...SLEEVE...SLEEVE
-
1469186-04F00 ...BOOT, SLEEVE...BOOT, SLEEVE
-
1569101-44850 PAD SETPAD SET
