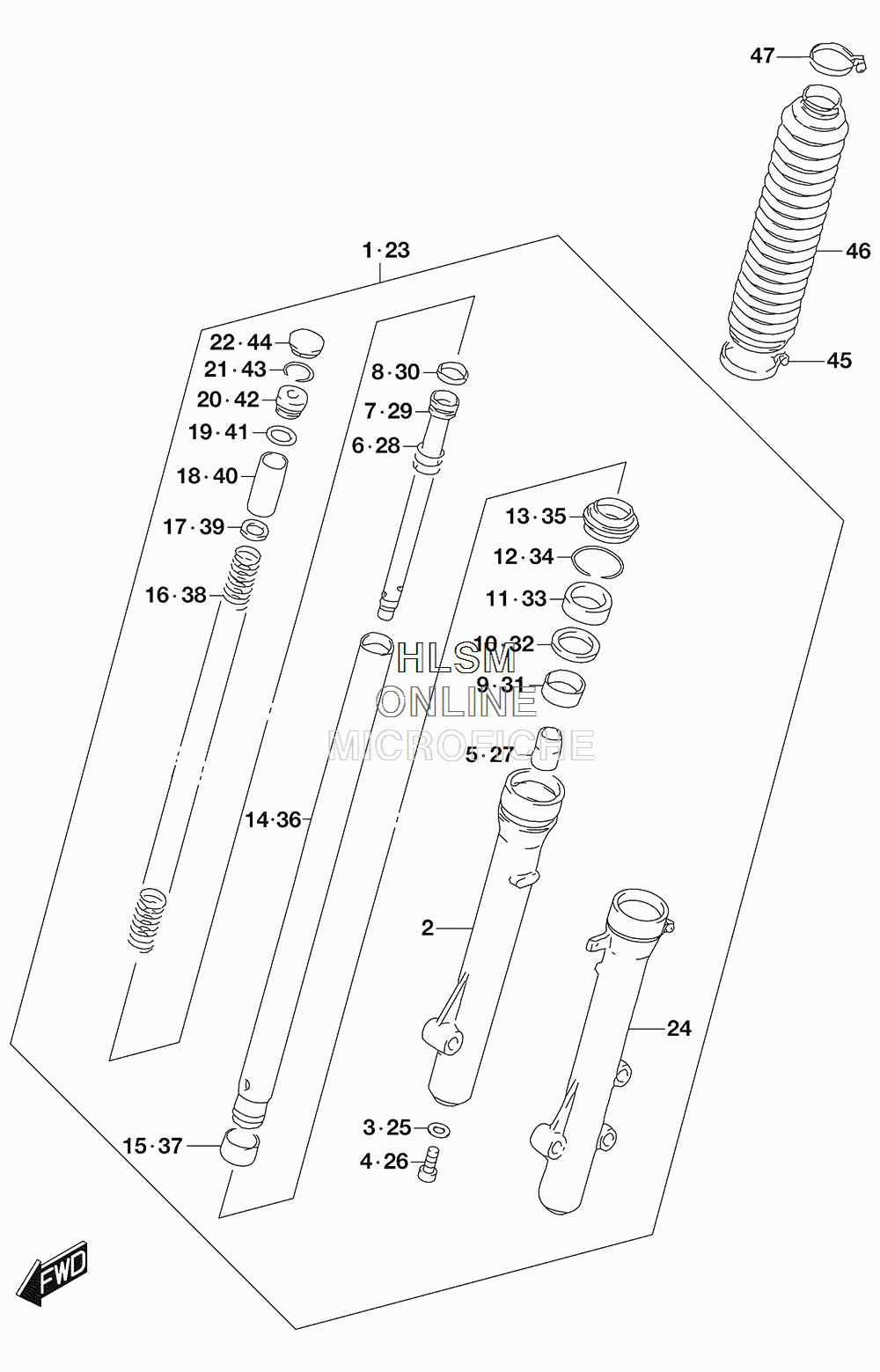

SUSPENSION - FRONT FORK для Suzuki DR200S [DR200SL5] - 2015 года выпуска
-
№АртикулНазвание
-
151103-42AA0 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251131-01A01 ...TUBE, OUTER (RH)...TUBE, OUTER (RH)
-
351148-31030 ...GASKET...GASKET
-
451147-06F10 ...BOLT, CENTER...BOLT, CENTER
-
551195-43530 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
651177-01A00 ...SPRING, REBOUND...SPRING, REBOUND
-
751146-42AA0 ...CYLINDER...CYLINDER
-
851196-45200 ...RING, PISTON...RING, PISTON
-
951152-33300 ...BUSH, GUIDE...BUSH, GUIDE
-
1051168-30B00 ...SPACER, SEAL...SPACER, SEAL
-
1151153-19D10 ...SEAL, OIL...SEAL, OIL
-
1251156-01A00 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
1351173-01A00 ...DUST SEAL...DUST SEAL
-
1451110-01A30 ...TUBE, INNER...TUBE, INNER
-
1551121-33300 ...PISTON...PISTON
-
1651171-42AA0 ...SPRING, MAIN...SPRING, MAIN
-
1751192-20510 ...SEAT, SPRING...SEAT, SPRING
-
1851176-42AA0 ...SPACER, SPRING...SPACER, SPRING
-
1951181-31030 ...O RING...O RING
-
2051175-47400 ...BOLT, SPRING...BOLT, SPRING
-
2151169-47400 ...RING, STOPPER...RING, STOPPER
-
2251189-31230 ...CAP...CAP
-
2351104-42AA0 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2451141-01A01 ...TUBE, OUTER (LH)...TUBE, OUTER (LH)
-
2551148-31030 ...GASKET...GASKET
-
2651147-06F10 ...BOLT, CENTER...BOLT, CENTER
-
2751195-43530 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
2851177-01A00 ...SPRING, REBOUND...SPRING, REBOUND
-
2951146-42AA0 ...CYLINDER...CYLINDER
-
3051196-45200 ...RING, PISTON...RING, PISTON
-
3151152-33300 ...BUSH, GUIDE...BUSH, GUIDE
-
3251168-30B00 ...SPACER, SEAL...SPACER, SEAL
-
3351153-19D10 ...SEAL, OIL...SEAL, OIL
-
3451156-01A00 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
3551173-01A00 ...DUST SEAL...DUST SEAL
-
3651110-01A30 ...TUBE, INNER...TUBE, INNER
-
3751121-33300 ...PISTON...PISTON
-
3851171-42AA0 ...SPRING, MAIN...SPRING, MAIN
-
3951192-20510 ...SEAT, SPRING...SEAT, SPRING
-
4051176-42AA0 ...SPACER, SPRING...SPACER, SPRING
-
4151181-31030 ...O RING...O RING
-
4251175-47400 ...BOLT, SPRING...BOLT, SPRING
-
4351169-47400 ...RING, STOPPER...RING, STOPPER
-
4451189-31230 ...CAP...CAP
-
4551576-42AA0 BAND, BOOT LOWERBAND, BOOT LOWER
-
4651571-01A00-019 BOOT (BLACK)BOOT (BLACK)
-
4751575-01A00 BAND, BOOT UPPERBAND, BOOT UPPER
