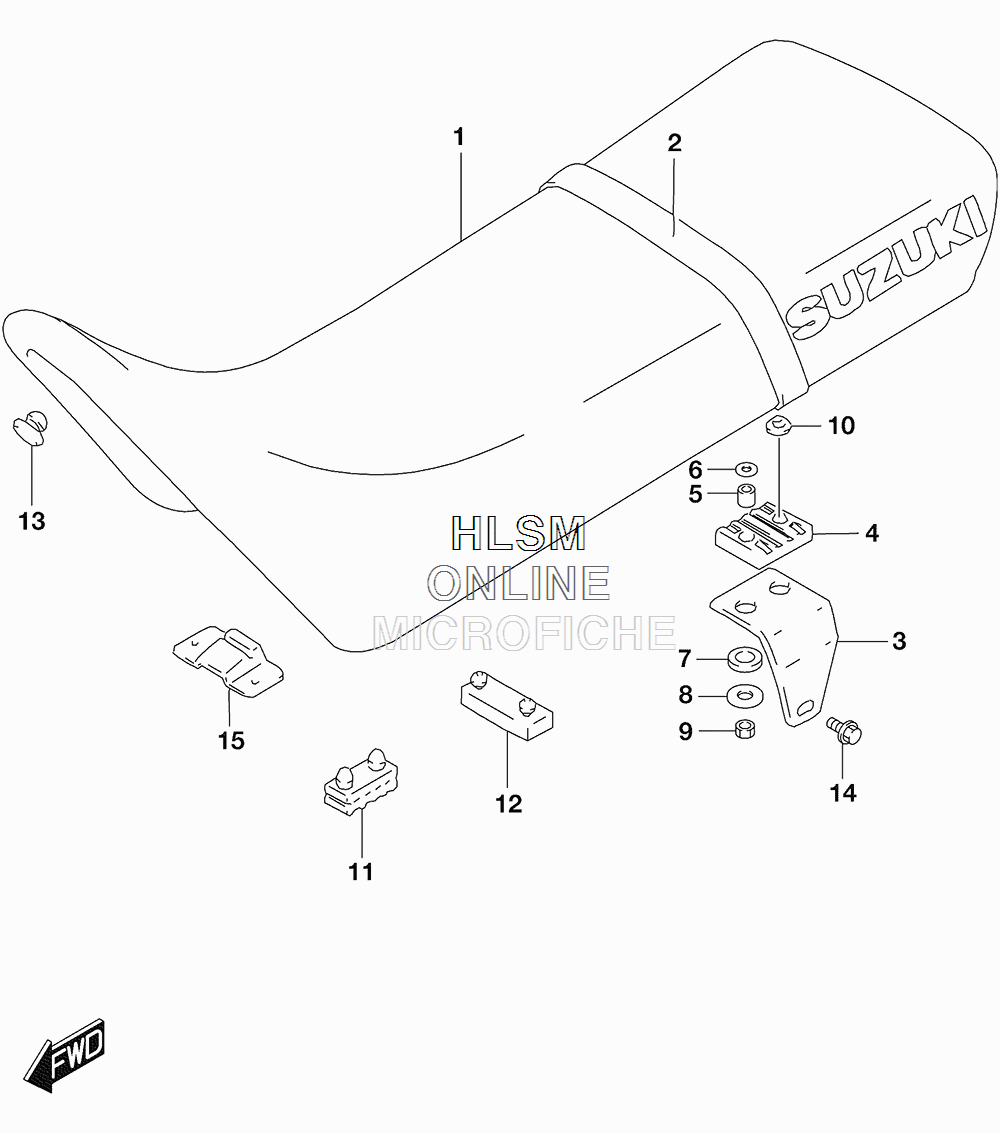

SEAT для Suzuki DR200S [DR200SL5] - 2015 года выпуска

№

Артикул

Название
1

45100-49J00-AX8 SEAT ASSY (BLACK/SILVER)

SEAT ASSY (BLACK/SILVER)
2

45180-49J00 ...BAND, SEAT GRIP

...BAND, SEAT GRIP
3

45117-49J00 ...BRACKET, SEAT

...BRACKET, SEAT
4

45150-23450 ...CUSHION, FRONT PLATE

...CUSHION, FRONT PLATE
5

45219-49J00 ...SPACER, SEAT BRACKET

...SPACER, SEAT BRACKET
6

09160-06131 ...WASHER (6.5X16X4)

...WASHER (6.5X16X4)
7

45147-23450 ...CUSHION, SEAT FR

...CUSHION, SEAT FR
8

09160-06012 ...WASHER (6.5X22X1.6)

...WASHER (6.5X22X1.6)
9

08316-2006A ...NUT

...NUT
10

09169-06053 ...WASHER

...WASHER
11

45149-31300 ...CUSHION

...CUSHION
12

45149-43500 ...CUSHION

...CUSHION
13

09329-10001 ...CUSHION

...CUSHION
14

01550-0812A BOLT

BOLT
15

45119-42A00 PLATE, SEAT FRONT HOOK

PLATE, SEAT FRONT HOOK
