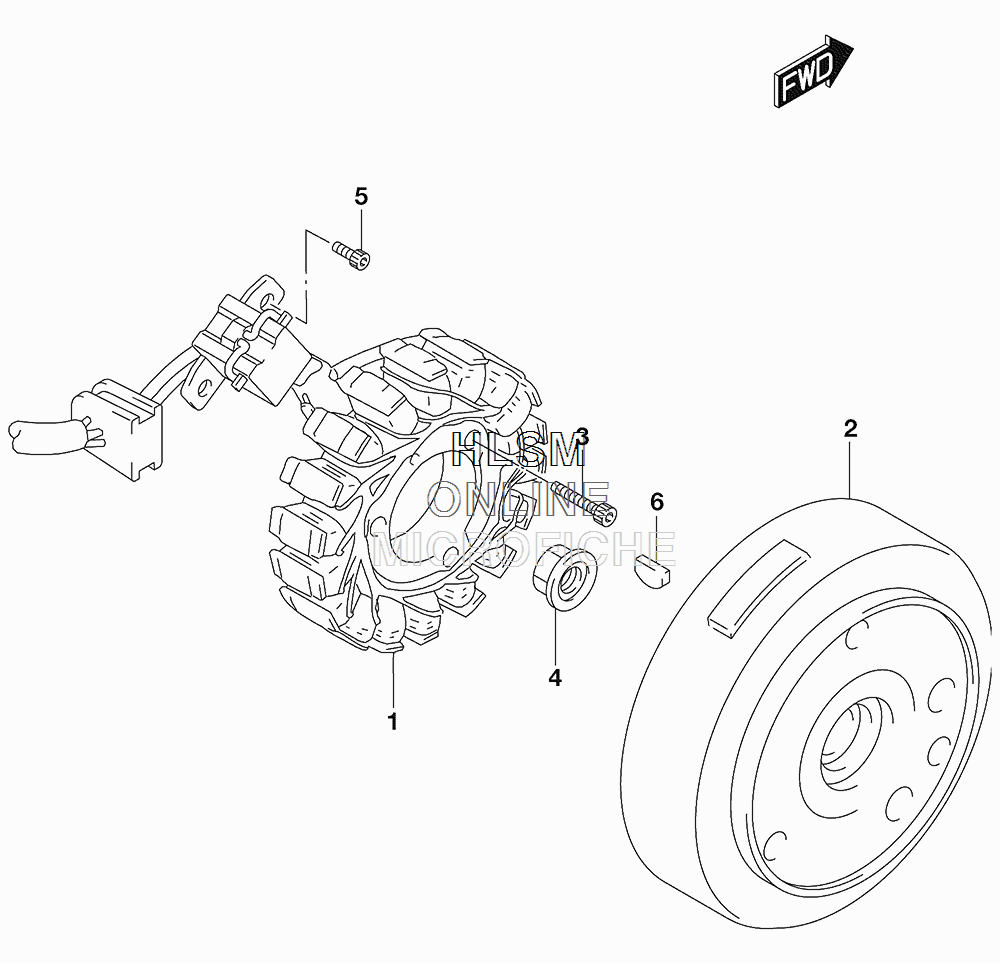

MAGNETO для Suzuki DR200S [DR200SL5] - 2015 года выпуска
-
№АртикулНазвание
-
132101-49J00 STATOR ASSYSTATOR ASSY
-
232102-49J00 ROTOR ASSYROTOR ASSY
-
307130-0525A BOLTBOLT
-
431792-26F10 NUT, MAGNETO ROTORNUT, MAGNETO ROTOR
-
507130-0512A BOLTBOLT
-
609420-03008 KEYKEY
