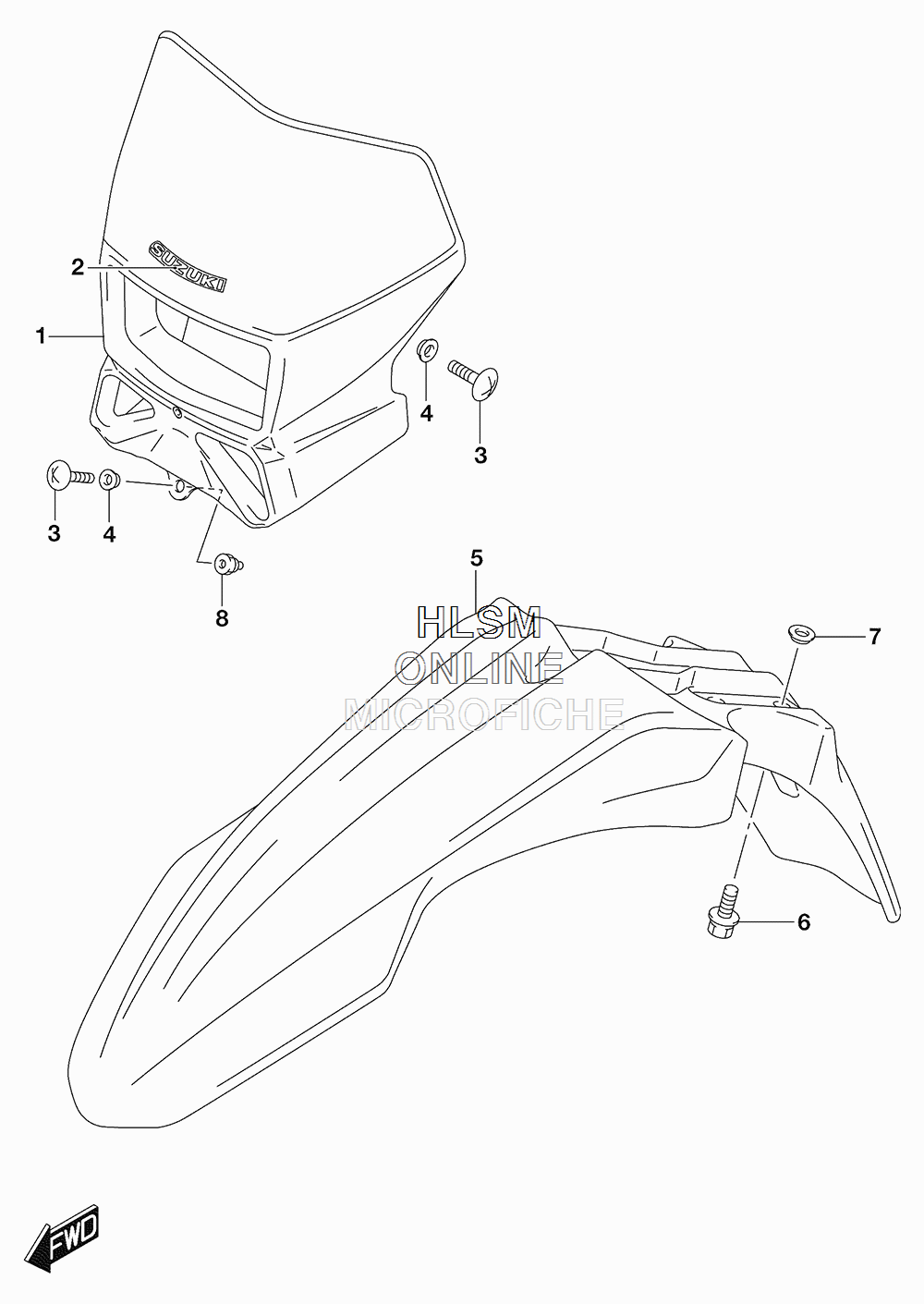

HEADLAMP HOUSING для Suzuki DR200S [DR200SL5] - 2015 года выпуска
-
№АртикулНазвание
-
151811-29F50-30H COVER, HEADLAMP (WHITE)COVER, HEADLAMP (WHITE)
-
268131-49J00-YHG EMBLEM, ''SUZUKI'' (GRAY)EMBLEM, ''SUZUKI'' (GRAY)
-
302142-0612A SCREWSCREW
-
409169-06071 WASHERWASHER
-
553111-49J00-019 FENDER, FRONT (BLACK)FENDER, FRONT (BLACK)
-
553111-49J00-YU1 FENDER, FRONT (YELLOW)FENDER, FRONT (YELLOW)
-
609116-06170 BOLT (6X16)BOLT (6X16)
-
709169-06073 WASHERWASHER
-
851812-49J00 BOLT, HEADLAMP COVERBOLT, HEADLAMP COVER
