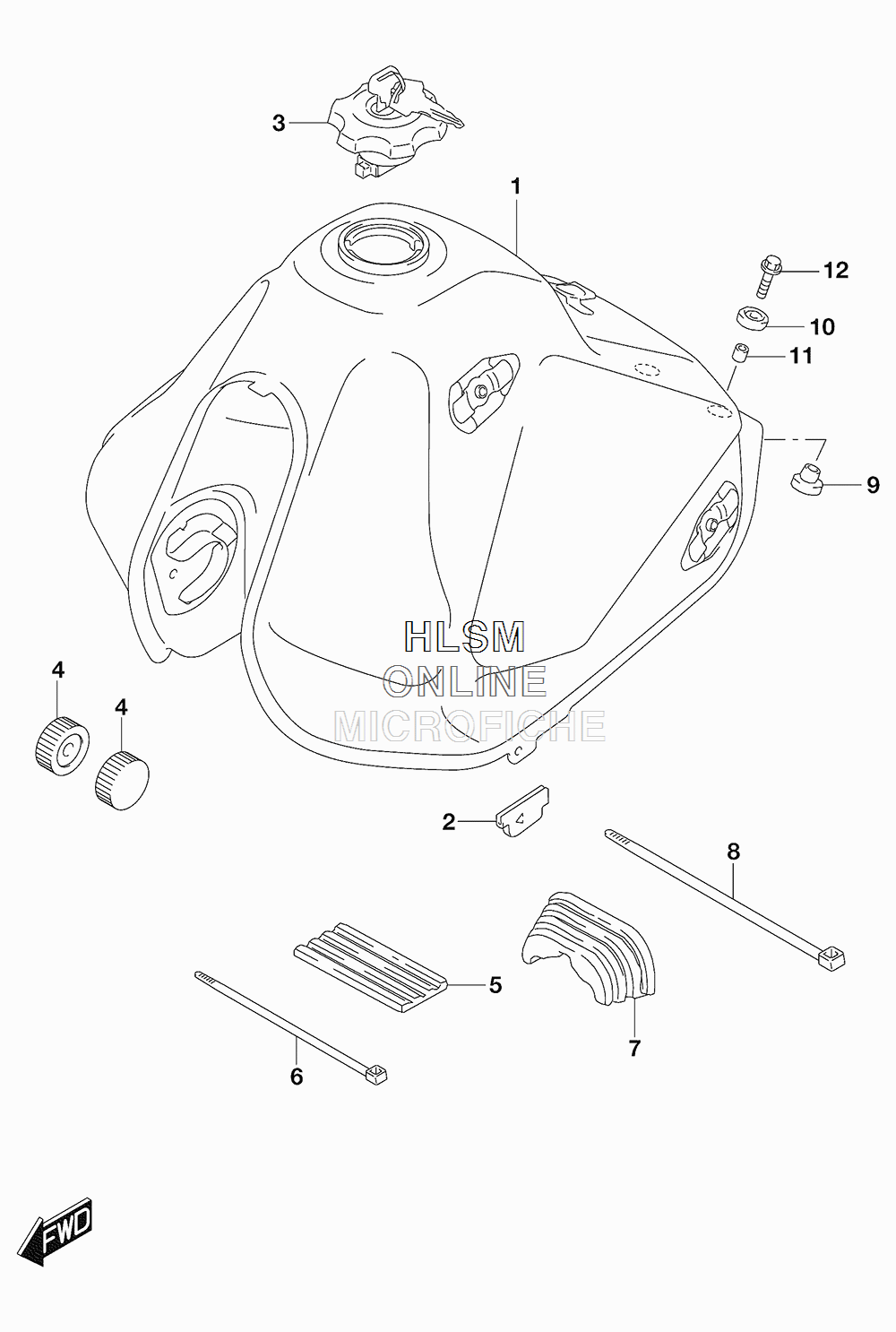

FUEL TANK для Suzuki DR200S [DR200SL5] - 2015 года выпуска
-
№АртикулНазвание
-
144100-49J00-019 TANK ASSY, FUEL (BLACK)TANK ASSY, FUEL (BLACK)
-
244164-49J00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
344200-29820 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
409329-10016 CUSHIONCUSHION
-
544541-14500 CUSHION, FUEL TANK UPPERCUSHION, FUEL TANK UPPER
-
609407-25402 CLAMP (L:248)CLAMP (L:248)
-
744542-14A00 CUSHION, FUEL TANK REARCUSHION, FUEL TANK REAR
-
809407-30402 CLAMP (L:300)CLAMP (L:300)
-
909320-10020 CUSHIONCUSHION
-
1009320-14022 CUSHIONCUSHION
-
1109180-06271 SPACER (6.5X9X18)SPACER (6.5X9X18)
-
1201570-0630B BOLTBOLT
