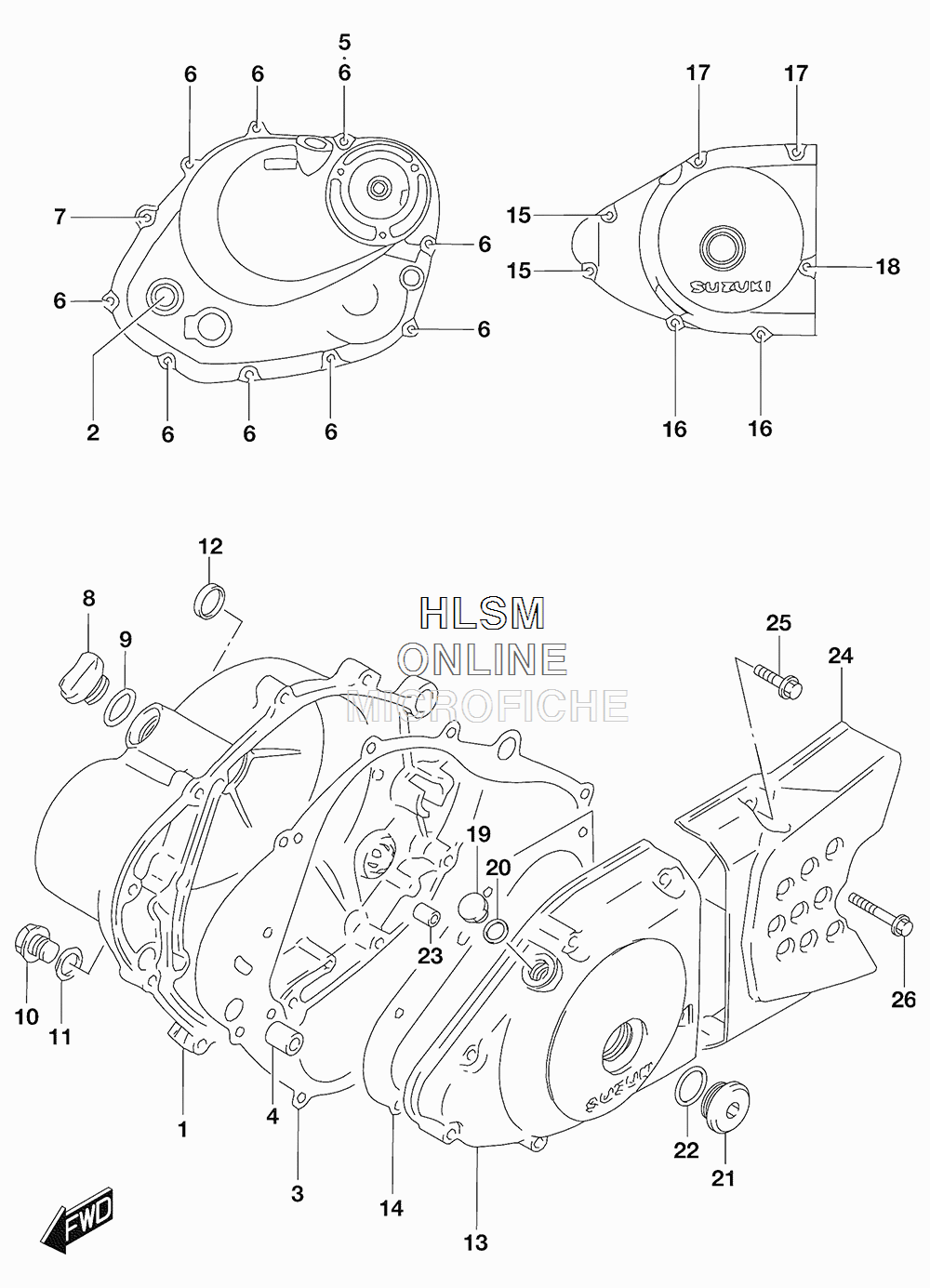

CRANKCASE COVER для Suzuki DR200S [DR200SL5] - 2015 года выпуска
-
№АртикулНазвание
-
111340-42A20 COVER, CLUTCHCOVER, CLUTCH
-
211971-45010 ...LENS, OIL LEVEL...LENS, OIL LEVEL
-
311482-05211 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
404211-13189 KNOCK PINKNOCK PIN
-
509168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
601547-0630A BOLTBOLT
-
701547-0645A BOLTBOLT
-
809259-20019 PLUGPLUG
-
909280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1009247-14026 PLUG (14X12)PLUG (14X12)
-
1109168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1211342-12C51 PLUG, CLUTCH COVER KICKPLUG, CLUTCH COVER KICK
-
1311351-42A30 COVER, MAGNETOCOVER, MAGNETO
-
1411483-05312 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1501547-0630A BOLTBOLT
-
1601547-0635A BOLTBOLT
-
1701547-0640A BOLTBOLT
-
1801547-0650A BOLTBOLT
-
1909247-12104 PLUG (12X9)PLUG (12X9)
-
2009168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
2109259-26011 PLUG (26X9)PLUG (26X9)
-
2209280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
2304211-09129 KNOCK PINKNOCK PIN
-
2411360-42A20 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2501547-0625A BOLTBOLT
-
2601547-0635A BOLTBOLT
