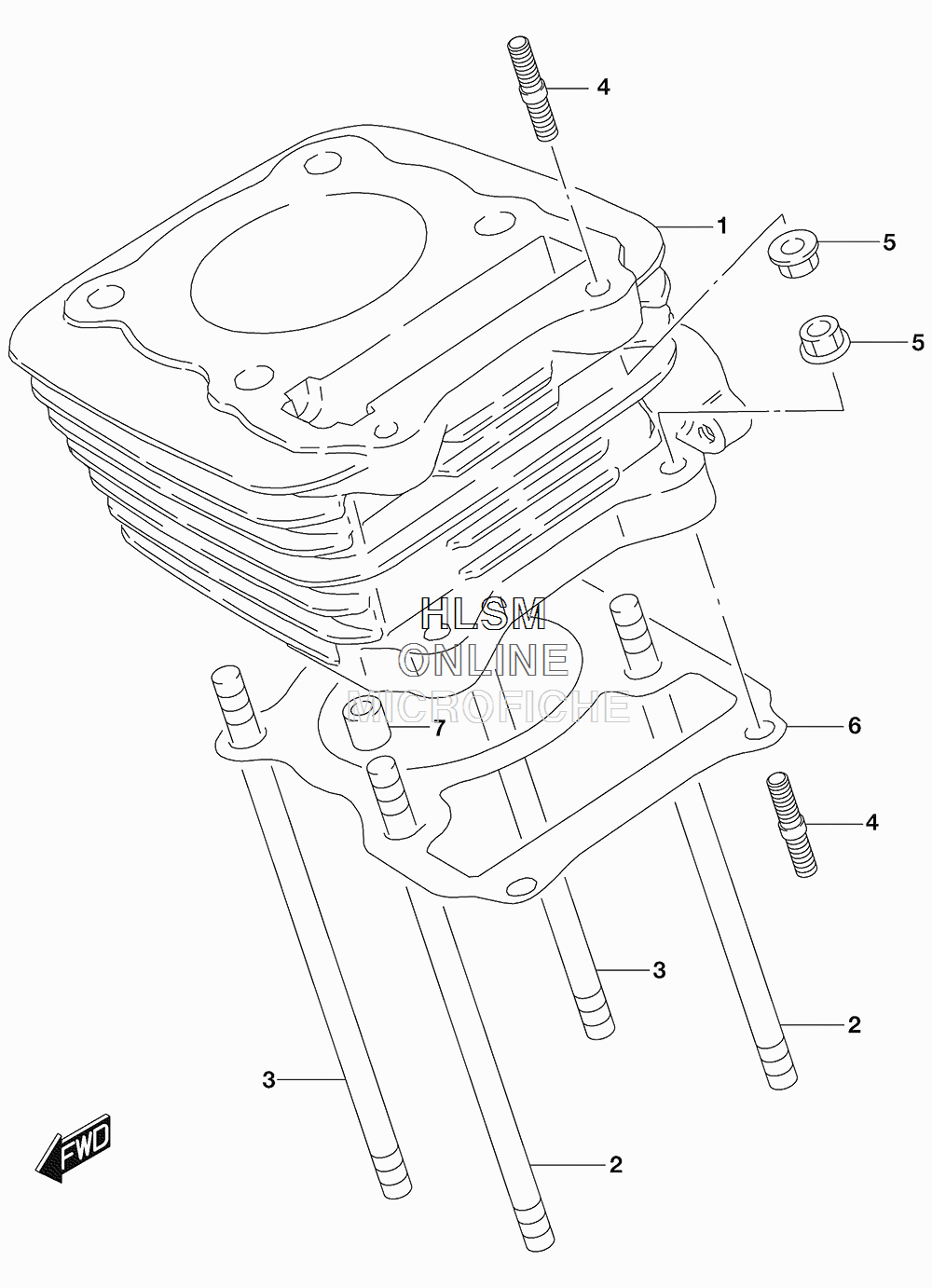

CYLINDER для Suzuki DR200S [DR200SL5] - 2015 года выпуска
-
№АртикулНазвание
-
111211-13G50-0F0 CYLINDERCYLINDER
-
209108-08195 STUD BOLTSTUD BOLT
-
309108-08184 STUD BOLT (8X167)STUD BOLT (8X167)
-
401421-0625A STUD BOLTSTUD BOLT
-
508316-1006A NUTNUT
-
611241-42A10 GASKET, CYLINDERGASKET, CYLINDER
-
704211-11149 KNOCK PINKNOCK PIN
