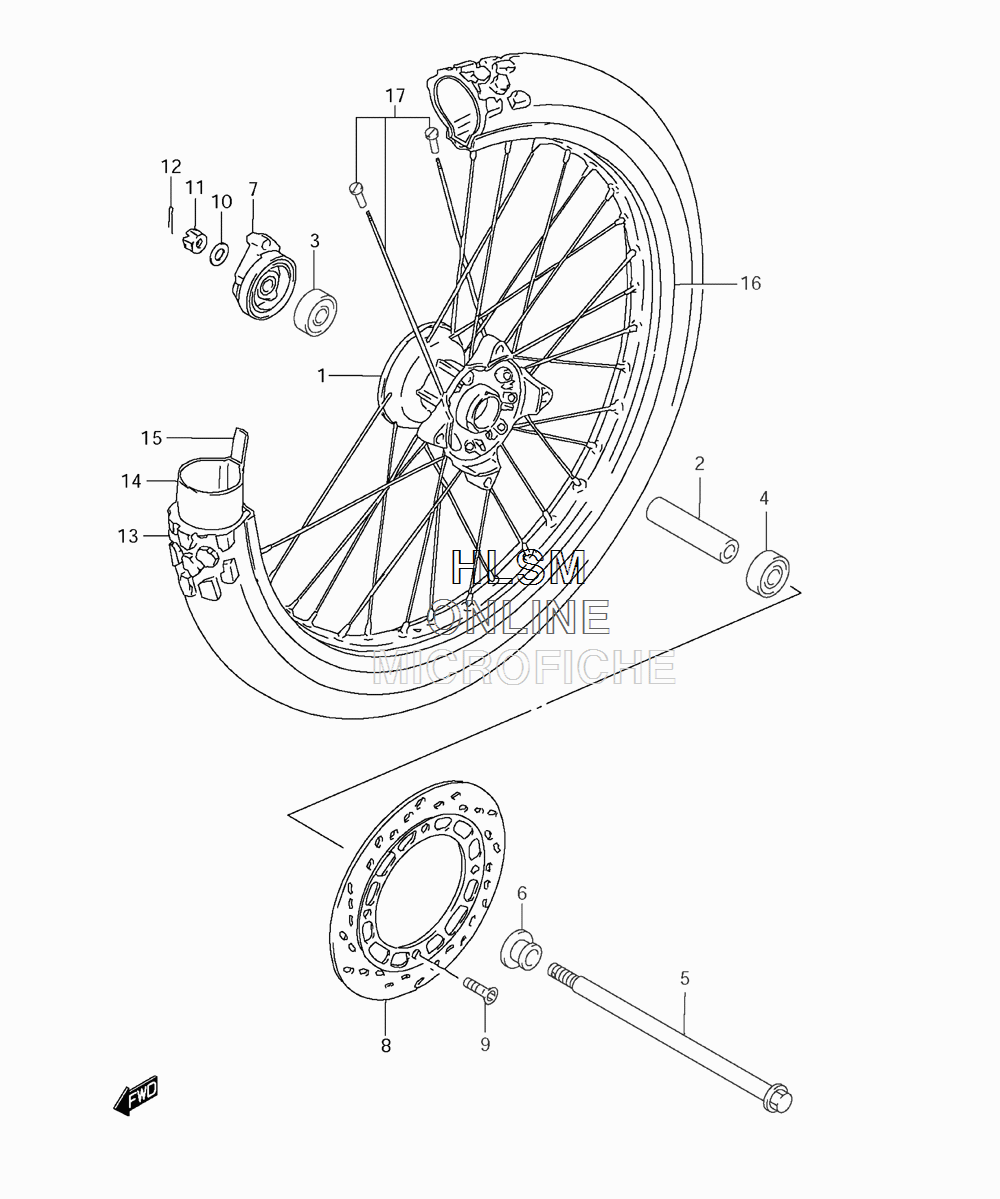

WHEEL - FRONT для Suzuki DR-200SEL3 - 2013 года выпуска

№

Артикул

Название
1

54111-44A10 HUB, FRONT WHEEL

HUB, FRONT WHEEL
2

09180-12146 SPACER (12.5X19X60.5)

SPACER (12.5X19X60.5)
3

08113-62017 BEARING

BEARING
4

08133-62017 BEARING

BEARING
5

54711-44A01 AXLE, FRONT

AXLE, FRONT
6

54740-02B40 SPACER, FRONT AXLE LEFT

SPACER, FRONT AXLE LEFT
7

54600-01A00 BOX ASSY, SPEEDOMETER GEAR

BOX ASSY, SPEEDOMETER GEAR
8

59221-13A01 DISC, FRONT BRAKE

DISC, FRONT BRAKE
9

09106-08155 BOLT (8X20)

BOLT (8X20)
10

08322-0112B WASHER

WASHER
11

09141-12004 NUT

NUT
12

04111-3025A COTTER PIN

COTTER PIN
13

55110-42AA0 TIRE, FRNT (70/100-21M/C 44P)

TIRE, FRNT (70/100-21M/C 44P)
14

55200-42AA1 TUBE ASSY, WHEEL INNER

TUBE ASSY, WHEEL INNER
15

55261-32E01 PROTECTOR, WHEEL INNER TUBE

PROTECTOR, WHEEL INNER TUBE
16

55311-42AA0 RIM, FRONT WHEEL (21X1.60)

RIM, FRONT WHEEL (21X1.60)
17

55320-42A00 SPOKE SET, FRONT WHEEL

SPOKE SET, FRONT WHEEL
