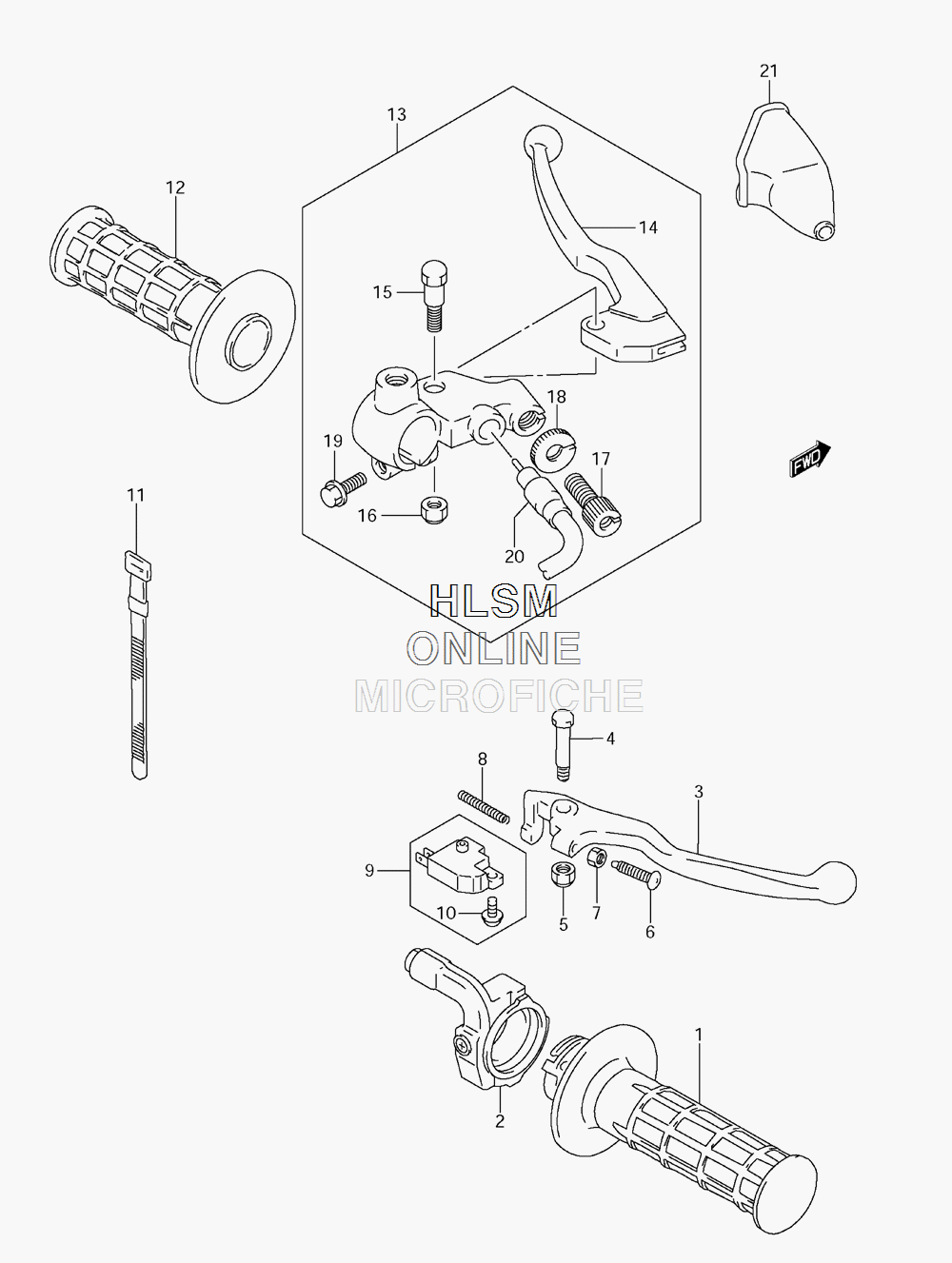

HANDLEBAR - LEVERS для Suzuki DR-200SEL3 - 2013 года выпуска`
-
№АртикулНазвание
-
157110-14D00 GRIP, THROTTLEGRIP, THROTTLE
-
257100-13610 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
357421-03D00 LEVER, BRAKELEVER, BRAKE
-
457431-14500 BOLT, BRAKE LEVERBOLT, BRAKE LEVER
-
508319-2106A NUTNUT
-
657431-14511 BOLT, ADJUSTBOLT, ADJUST
-
708310-0005A NUTNUT
-
857318-14502 SPRING, RETURNSPRING, RETURN
-
957460-14J01 SWITCH ASSY, FRONT BRAKESWITCH ASSY, FRONT BRAKE
-
1057465-17C00 ...SCREW...SCREW
-
1109407-12402 CLAMP (L:120)CLAMP (L:120)
-
1257211-27C00 GRIP, LEFTGRIP, LEFT
-
1357500-44AF0 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1457621-44AF0 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1557431-21D11 ...BOLT, LEVER PIVOT...BOLT, LEVER PIVOT
-
1608319-2106B ...NUT...NUT
-
1757441-08C00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
1857442-44AF0 ...NUT, LOCK...NUT, LOCK
-
1901547-06207 ...BOLT...BOLT
-
2057560-44AF0 ...SWITCH ASSY, CLUTCH...SWITCH ASSY, CLUTCH
-
2157341-29F01 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
