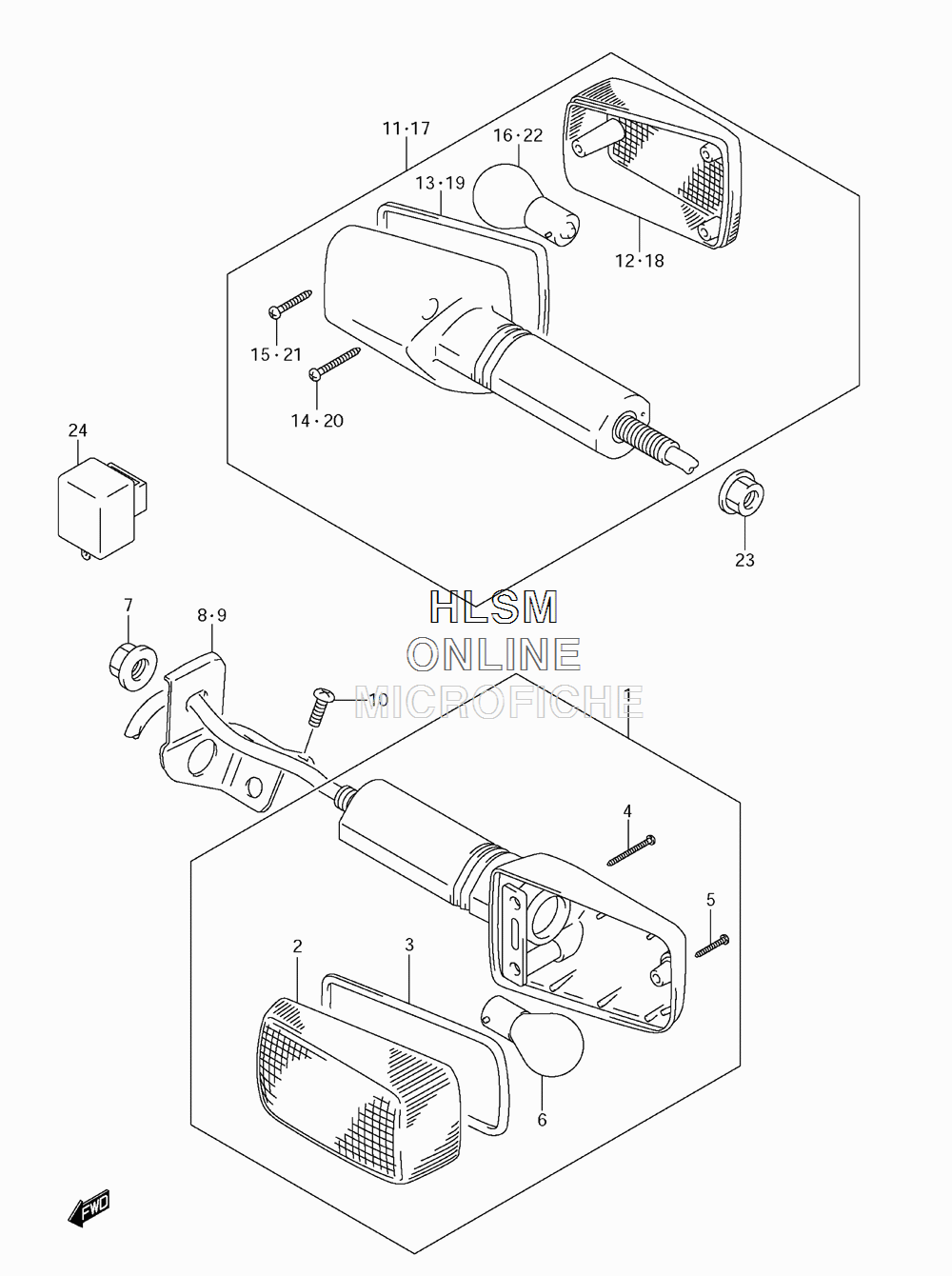

TURN SIGNAL ASSY. для Suzuki DR-200SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
135601-29EC0 LAMP ASSY, FRONT TURNSIGNAL (LEFT/RIGHT)LAMP ASSY, FRONT TURNSIGNAL (LEFT/RIGHT)
-
235612-17C20 ...LENS...LENS
-
335613-27A00 ...GASKET...GASKET
-
435623-27A00 ...SCREW...SCREW
-
535725-40511 ...SCREW...SCREW
-
609471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
708316-1010A NUTNUT
-
835670-44A01 BRACKET, FRONT TURN RIGHTBRACKET, FRONT TURN RIGHT
-
935680-44A01 BRACKET, FRONT TURN LEFTBRACKET, FRONT TURN LEFT
-
1002142-0508A SCREWSCREW
-
1135603-29EK0 LAMP ASSY, REAR TURNSIGNAL RIGHTLAMP ASSY, REAR TURNSIGNAL RIGHT
-
1235652-17C20 ...LENS...LENS
-
1335613-27A00 ...GASKET...GASKET
-
1435623-27A00 ...SCREW...SCREW
-
1535725-40511 ...SCREW...SCREW
-
1609471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1735603-29EK0 LAMP ASSY, REAR TURNSIGNAL LEFTLAMP ASSY, REAR TURNSIGNAL LEFT
-
1835652-17C20 ...LENS...LENS
-
1935613-27A00 ...GASKET...GASKET
-
2035623-27A00 ...SCREW...SCREW
-
2135725-40511 ...SCREW...SCREW
-
2209471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
2308316-1010A NUTNUT
-
2438610-31X50 RELAY ASSY, TURNSIGNALRELAY ASSY, TURNSIGNAL
