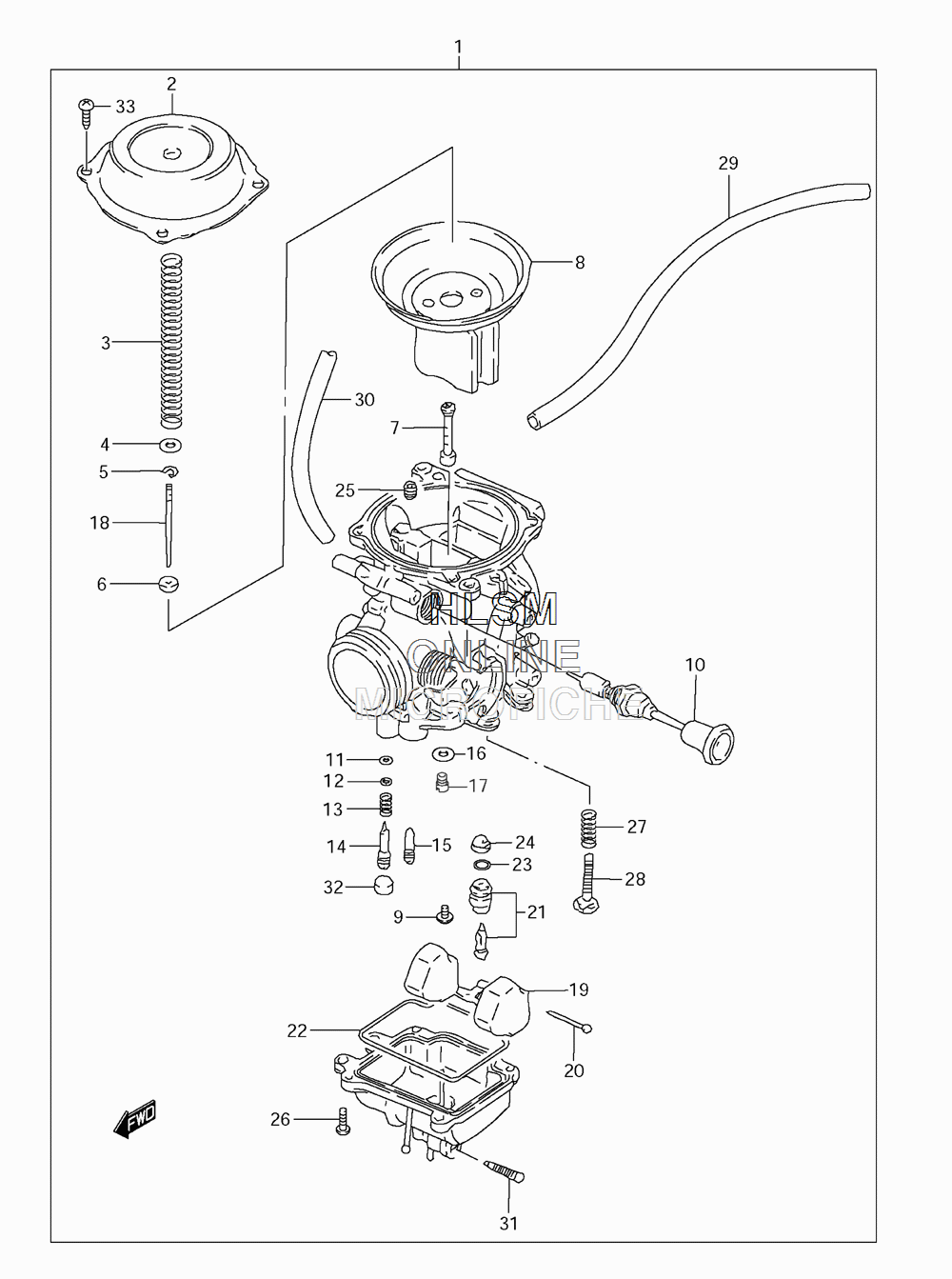

CARBURETOR ASSY. (CALIF ONLY) для Suzuki DR-200SEL3 - 2013 года выпуска

№

Артикул

Название
1

13200-42AE1 CARBURETOR ASSY

CARBURETOR ASSY
2

13502-42A00 ...COVER

...COVER
3

13417-42A00 ...SPRING

...SPRING
4

13382-42A00 ...RING

...RING
5

13394-10010 ...CLIP, NEEDLE

...CLIP, NEEDLE
6

13387-47010 ...RING

...RING
7

09494-00881 ...JET, NEEDLE (P-5M)

...JET, NEEDLE (P-5M)
8

13500-42A00 ...DIAPHRAGM ASSY

...DIAPHRAGM ASSY
9

13602-43410 ...SCREW

...SCREW
10

13411-42A20 ...PLUNGER ASSY

...PLUNGER ASSY
11

13295-29900 ...O RING

...O RING
12

13291-29900 ...WASHER

...WASHER
13

13268-47070 ...SPRING

...SPRING
14

13279-47070 ...SCREW, PILOT

...SCREW, PILOT
15

09492-35008 ...JET, PILOT (35)

...JET, PILOT (35)
16

13382-03110 ...WASHER

...WASHER
17

09491-25010 ...JET, MAIN (125)

...JET, MAIN (125)
18

13383-42AC0 ...NEEDLE, JET (5D77-1)

...NEEDLE, JET (5D77-1)
19

13250-42A00 ...FLOAT

...FLOAT
20

13254-92311 ...PIN, FLOAT

...PIN, FLOAT
21

13370-44500 ...VALVE ASSY, NEEDLE

...VALVE ASSY, NEEDLE
22

13251-42A00 ...O RING, FLOAT CHAMBER

...O RING, FLOAT CHAMBER
23

13374-35C00 ...O RING, NEEDLE VALVE SEAT

...O RING, NEEDLE VALVE SEAT
24

13376-19F00 ...FILTER

...FILTER
25

09493-27001 ...JET, AIR (#135)

...JET, AIR (#135)
26

02112-0412A ...SCREW

...SCREW
27

13268-37420 ...SPRING, THROTTLE SCREW

...SPRING, THROTTLE SCREW
28

13267-25D00 ...ADJUSTER

...ADJUSTER
29

09352-50823-600 ...HOSE (5X8.2X600)

...HOSE (5X8.2X600)
30

09355-45855-600 ...HOSE (4.5X8.5X600)

...HOSE (4.5X8.5X600)
31

13247-13A00 ...SCREW, DRAIN

...SCREW, DRAIN
32

13281-05A00 ...PLUG

...PLUG
33

02112-0408A ...SCREW

...SCREW
