GASKET SET для Suzuki DR-200SEL3 - 2013 года выпуска

  • №
    Артикул
    Название

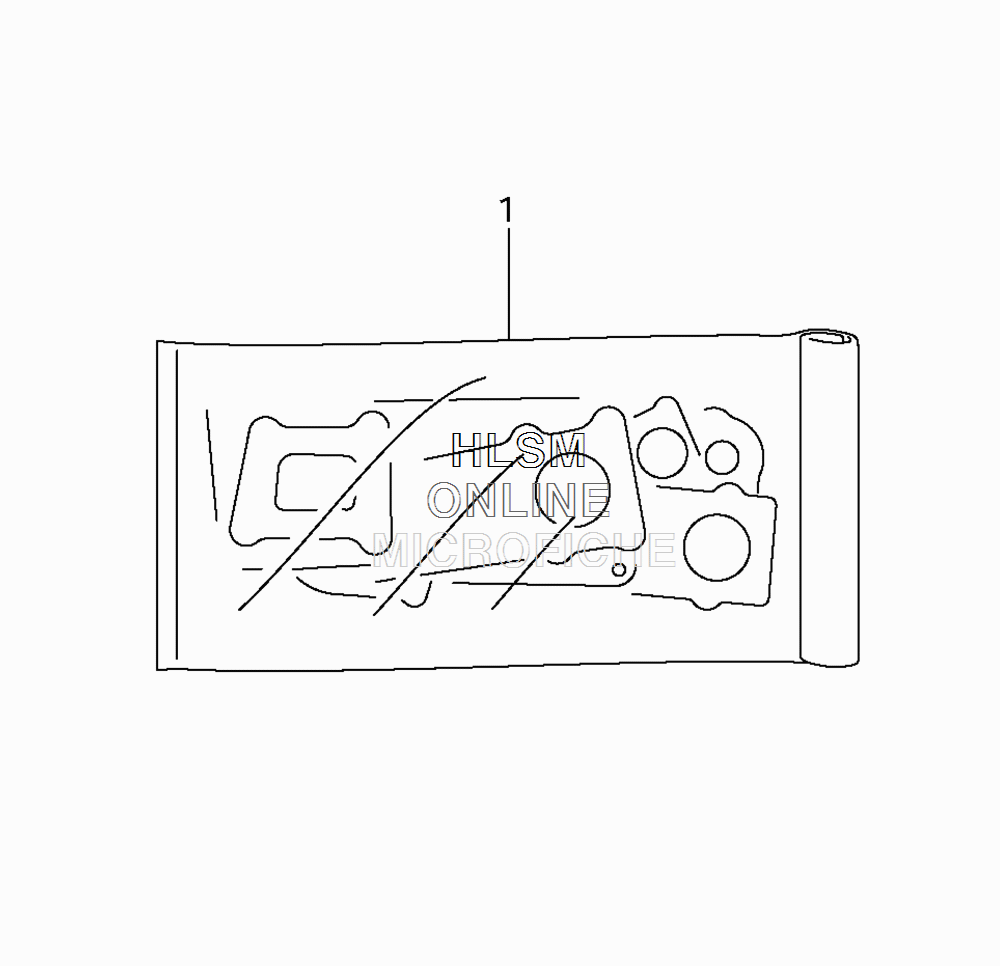

  • 1
    11401-42830 GASKET SET
    GASKET SET
  • 2
    11141-18A00 ...GASKET, CYLINDER HEAD
    ...GASKET, CYLINDER HEAD
  • 3
    11241-42A10 ...GASKET, CYLINDER
    ...GASKET, CYLINDER
  • 4
    11482-05211 ...GASKET, CLUTCH COVER
    ...GASKET, CLUTCH COVER
  • 5
    11483-05312 ...GASKET, MAGNETO COVER
    ...GASKET, MAGNETO COVER
  • 6
    12837-19B10 ...GASKET, TENSIONER ADJUSTER
    ...GASKET, TENSIONER ADJUSTER
  • 7
    14181-42A00 ...GASKET, EXHAUST PIPE
    ...GASKET, EXHAUST PIPE
  • 8
    09168-06023 ...GASKET (5.8X13X1.2)
    ...GASKET (5.8X13X1.2)
  • 9
    09168-08021 ...GASKET (8.5X17X2.3)
    ...GASKET (8.5X17X2.3)
  • 10
    09168-14002 ...GASKET (13.8X18.8X4.8)
    ...GASKET (13.8X18.8X4.8)
  • 11
    09280-09005 ...O RING (D:1.9,ID:8.6)
    ...O RING (D:1.9,ID:8.6)
  • 12
    09280-13004 ...O RING (D:1.9,ID:13)
    ...O RING (D:1.9,ID:13)
  • 13
    09280-17003 ...O RING (D:3.1,ID:16.8)
    ...O RING (D:3.1,ID:16.8)
  • 14
    09280-21008 ...O RING (D:2.5,ID:21)
    ...O RING (D:2.5,ID:21)
  • 15
    09280-22008 ...O RING (D:3.1,ID:22.7)
    ...O RING (D:3.1,ID:22.7)
  • 16
    09280-30001 ...O RING (D:3,ID:29.5)
    ...O RING (D:3,ID:29.5)
  • 17
    09280-35001 ...O RING (D:1.9,ID:34.6)
    ...O RING (D:1.9,ID:34.6)
  • 18
    09280-54001 ...O RING (D:2.4,ID:52.6)
    ...O RING (D:2.4,ID:52.6)
  • 19
    09280-60005 ...O RING (D:2.4,ID:60.5)
    ...O RING (D:2.4,ID:60.5)
