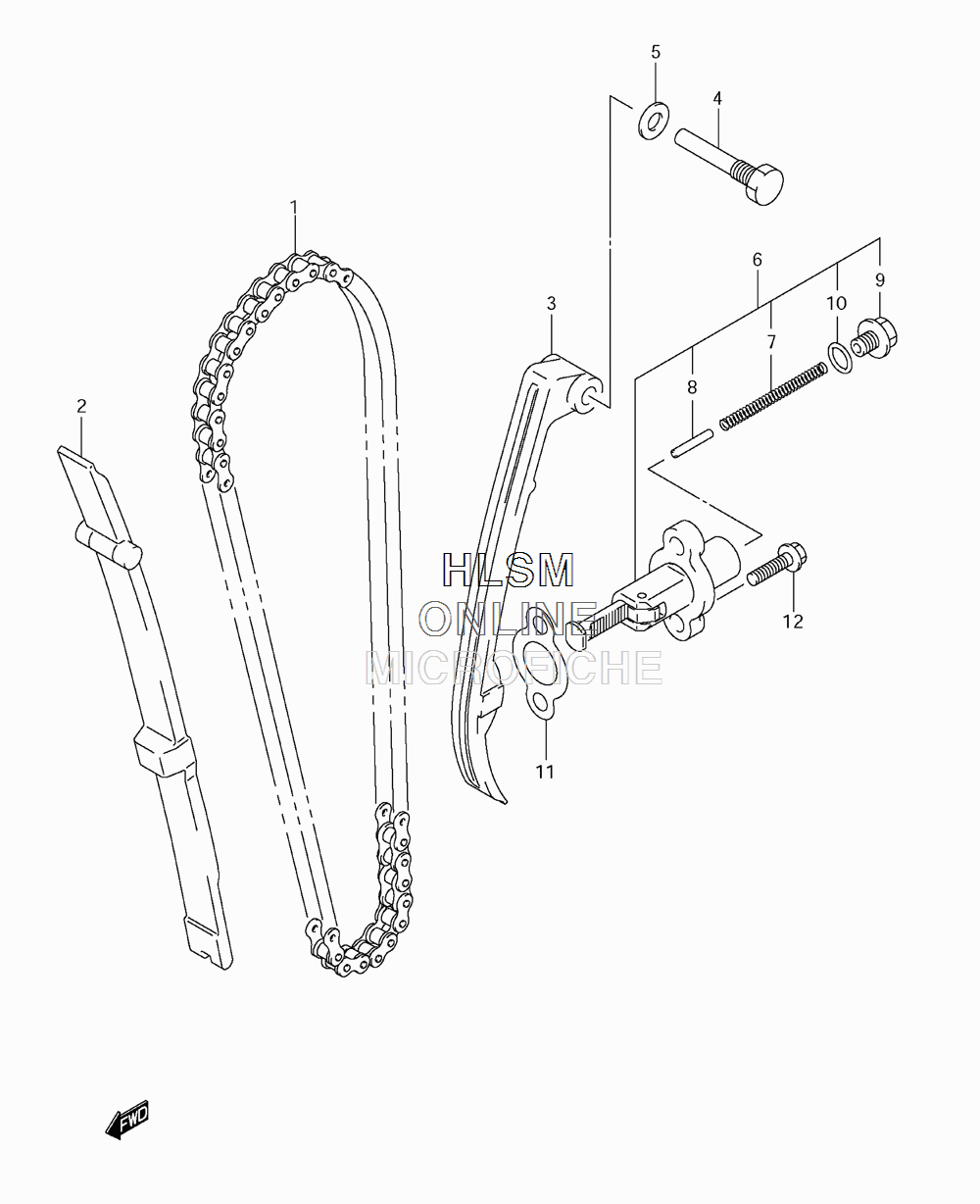

CAM CHAIN ASSY. W/ TENSIONER для Suzuki DR-200SEL3 - 2013 года выпуска
-
№АртикулНазвание
-
112760-42A00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-18A00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-18A01 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32400 BOLT, CAM CHAIN TENSIONERBOLT, CAM CHAIN TENSIONER
-
509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
612830-19B02 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
712833-19B00 ...SPRING...SPRING
-
812835-19B00 ...BAR...BAR
-
912834-19B00 ...PLUG...PLUG
-
1012832-02A00 ...O RING...O RING
-
1112837-19B10 GASKET, TENSIONER ADJUSTERGASKET, TENSIONER ADJUSTER
-
1201547-0620A BOLTBOLT
