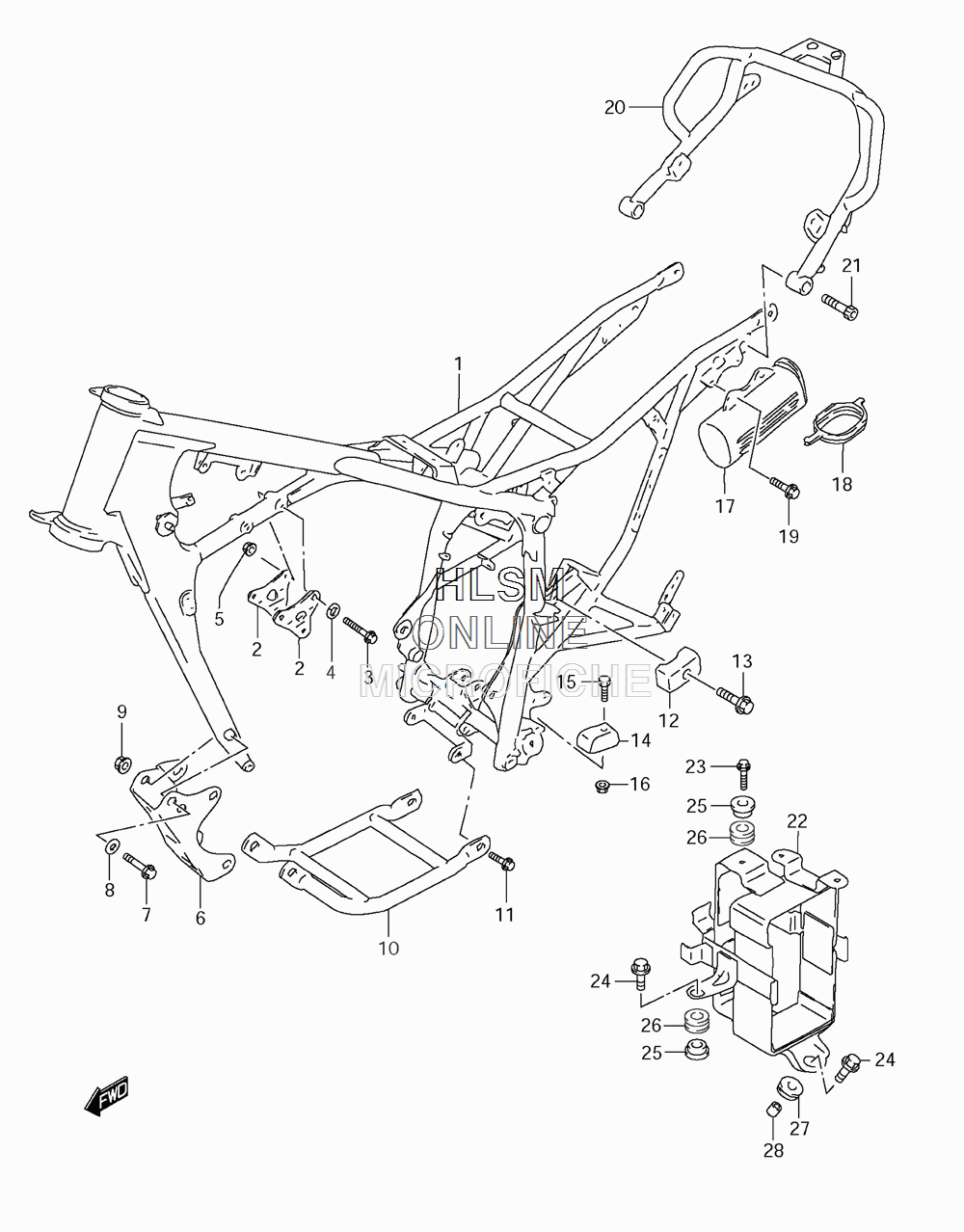

FRAME для Suzuki DR-200SEL3 - 2013 года выпуска

№

Артикул

Название
1

41100-44AL0-YPT FRAME (GRAY)

FRAME (GRAY)
2

41991-42A00-291 PLATE, MOUNT UPPER (BLACK)

PLATE, MOUNT UPPER (BLACK)
3

09103-08332 BOLT (8X53)

BOLT (8X53)
4

08321-0108A LOCK WASHER

LOCK WASHER
5

08319-3108A NUT

NUT
6

41992-44AA1-YPT PLATE, MOUNT LOWER (GRAY)

PLATE, MOUNT LOWER (GRAY)
7

09103-08293 BOLT (8X70)

BOLT (8X70)
8

08321-0108A LOCK WASHER

LOCK WASHER
9

08319-3108A NUT

NUT
10

42510-44AA0-YPT PROTECTOR, ENGINE (GRAY)

PROTECTOR, ENGINE (GRAY)
11

01551-1016A BOLT

BOLT
12

43911-44A00 GUIDE, CHAIN CONTROL UPPER

GUIDE, CHAIN CONTROL UPPER
13

01580-0635B BOLT

BOLT
14

43912-42AA0 GUIDE, CHAIN CONTROL LOWER

GUIDE, CHAIN CONTROL LOWER
15

09128-06006 BOLT (6X20)

BOLT (6X20)
16

08319-3106B NUT

NUT
17

41551-38201 HOLDER, TOOL

HOLDER, TOOL
18

41552-37210 CAP, TOOL HOLDER

CAP, TOOL HOLDER
19

09116-06165 BOLT (6X16)

BOLT (6X16)
20

43980-44AB2-YPT GRIP, REAR (YPT - GRAY)

GRIP, REAR (YPT - GRAY)
21

09106-08105 BOLT (8X30)

BOLT (8X30)
22

41540-44AA0 HOLDER, BATTERY

HOLDER, BATTERY
23

01550-0620B BOLT

BOLT
24

09116-06047 BOLT (6X25)

BOLT (6X25)
25

09169-06065 WASHER

WASHER
26

09320-08021 CUSHION

CUSHION
27

09320-10501 CUSHION

CUSHION
28

09180-06285 SPACER (6.5X10X9)

SPACER (6.5X10X9)
