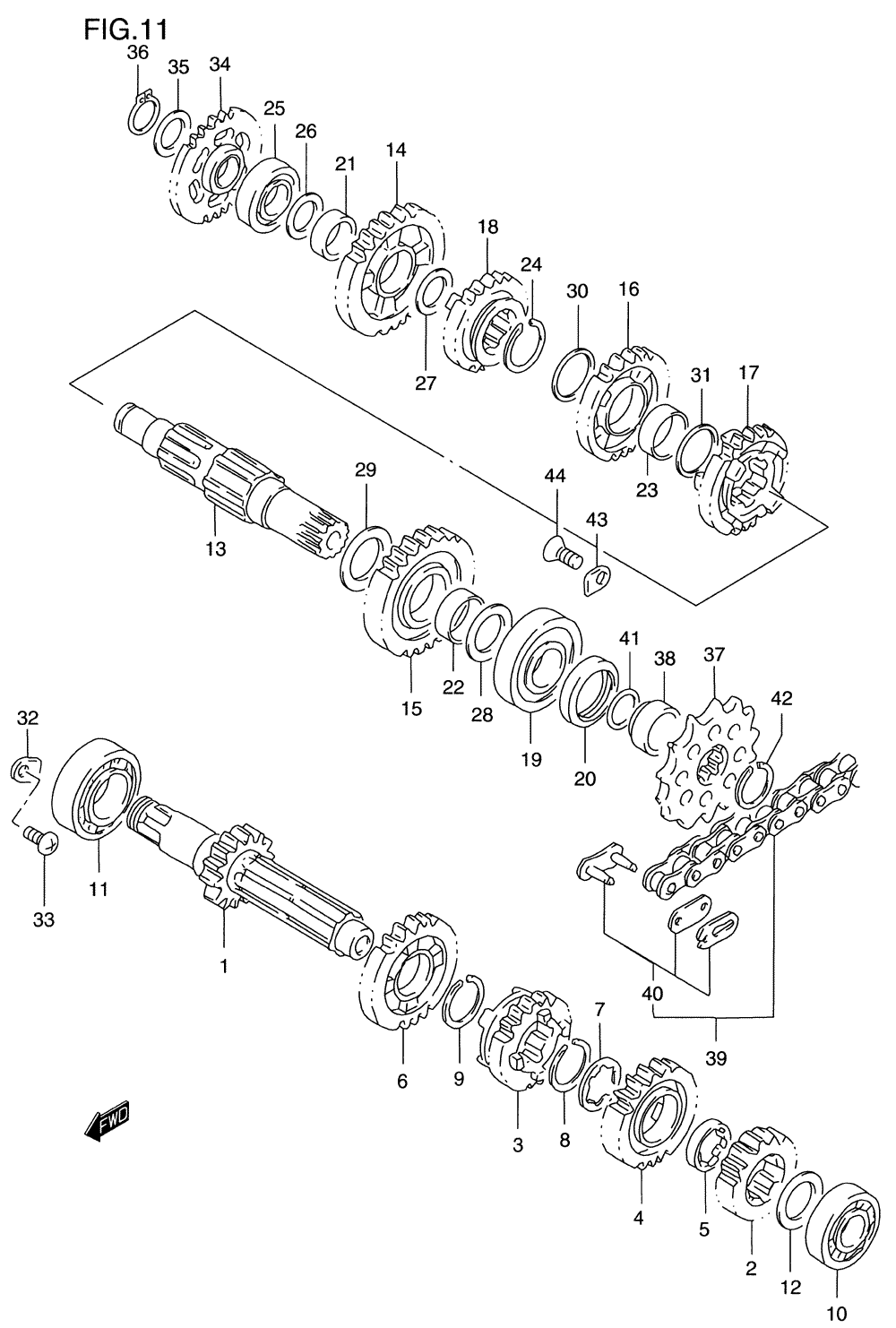

TRANSMISSION для Suzuki RM250Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    24120-37E00 SHAFT, COUNTER (NT:15)
    SHAFT, COUNTER (NT:15)
  • 2
    24221-37E00 GEAR, 2ND DRIVE (NT:17)
    GEAR, 2ND DRIVE (NT:17)
  • 3-2
    24231-37E01 GEAR, 3RD DRIVE (NT:19)
    GEAR, 3RD DRIVE (NT:19)
  • 4
    24241-37E00 GEAR, 4TH DRIVE (NT:21)
    GEAR, 4TH DRIVE (NT:21)
  • 5
    24242-37E00 BUSH, 4TH DRIVE GEAR
    BUSH, 4TH DRIVE GEAR
  • 6
    24251-37E00 GEAR, 5TH DRIVE (NT:23)
    GEAR, 5TH DRIVE (NT:23)
  • 7
    09167-25012 WASHER, 4TH (25.1X31X1.0)
    WASHER, 4TH (25.1X31X1.0)
  • 8
    09380-25010 CIRCLIP, 4TH DRIVE
    CIRCLIP, 4TH DRIVE
  • 9
    09380-25010 CIRCLIP, 5TH DRIVE
    CIRCLIP, 5TH DRIVE
  • 10
    08143-62037 BEARING, CNTR (LEFT)
    BEARING, CNTR (LEFT)
  • 11
    08143-62057 BEARING, CNTR (RIGHT)
    BEARING, CNTR (RIGHT)
  • 12-2
    09181-17223 WASHER, 2ND (17X30X1.0)
    WASHER, 2ND (17X30X1.0)
  • 13
    24131-28C03 SHAFT, DRIVE
    SHAFT, DRIVE
  • 14
    24311-37E00 GEAR, 1ST DRIVEN (NT:27)
    GEAR, 1ST DRIVEN (NT:27)
  • 15-2
    24321-37E01 GEAR, 2ND DRIVEN (NT:25)
    GEAR, 2ND DRIVEN (NT:25)
  • 16
    24331-37E00 GEAR, 3RD DRIVEN (NT:23)
    GEAR, 3RD DRIVEN (NT:23)
  • 17-4
    24341-37E11 GEAR, 4TH DRIVEN (NT:21)
    GEAR, 4TH DRIVEN (NT:21)
  • 18
    24351-37E00 GEAR, 5TH DRIVEN (NT:20)
    GEAR, 5TH DRIVEN (NT:20)
  • 19-2
    09262-22030 BEARING, DRIVE (22X56X15)
    BEARING, DRIVE (22X56X15)
  • 20
    09283-28020 SEAL, DRIVE (28X38X6)
    SEAL, DRIVE (28X38X6)
  • 21
    09300-20037 BUSH, 1ST DRIVEN GEAR
    BUSH, 1ST DRIVEN GEAR
  • 22
    09300-25031 BUSH, 2ND DRIVEN GEAR
    BUSH, 2ND DRIVEN GEAR
  • 23
    09300-25031 BUSH, 3RD DRIVEN GEAR
    BUSH, 3RD DRIVEN GEAR
  • 24
    09380-25010 CIRCLIP, 3RD DRIVEN
    CIRCLIP, 3RD DRIVEN
  • 25
    09262-17023 BEARING, DRIVE (17X40X12)
    BEARING, DRIVE (17X40X12)
  • 26-2
    09181-17223 WASHER, 1ST (17X30X1.0)
    WASHER, 1ST (17X30X1.0)
  • 27-2
    09181-20195 WASHER, 1ST (20X30X1.0)
    WASHER, 1ST (20X30X1.0)
  • 28-2
    09181-22240 WASHER, 2ND DRIVEN GEAR (22X34X1.5)
    WASHER, 2ND DRIVEN GEAR (22X34X1.5)
  • 29-2
    09181-25167 WASHER, 2ND DRIVEN NO.2 (25X34X1.0)
    WASHER, 2ND DRIVEN NO.2 (25X34X1.0)
  • 30-2
    09181-25167 WASHER, 3RD DRIVEN GEAR (25X34X1.0)
    WASHER, 3RD DRIVEN GEAR (25X34X1.0)
  • 31
    08221-25305 WASHER, 3RD DRIVEN NO.2
    WASHER, 3RD DRIVEN NO.2
  • 32
    24741-21A00 RETAINER, CNTR SHAFT BRG
    RETAINER, CNTR SHAFT BRG
  • 33
    02112-06123 SCREW, CNTR RETAINER
    SCREW, CNTR RETAINER
  • 34-2
    26260-37E01 GEAR, KICK STARTER (NT:27)
    GEAR, KICK STARTER (NT:27)
  • 35-2
    09181-17130 WASHER, KICK (17X24X0.5)
    WASHER, KICK (17X24X0.5)
  • 36
    08331-31176 CIRCLIP, KICK IDLE GR
    CIRCLIP, KICK IDLE GR
  • 37-1
    27511-15D00 SPROCKET, ENGINE (NT:13)
    SPROCKET, ENGINE (NT:13)
  • 37-2
    27511-47D00 SPROCKET, ENGINE (NT:14) (OPT)
    SPROCKET, ENGINE (NT:14) (OPT)
  • 38
    27531-28C00 SPACER, ENGINE SPROCKET
    SPACER, ENGINE SPROCKET
  • 39-2
    27600-43D00-112 CHAIN ASSY (DID520DS5,112LE)
    CHAIN ASSY (DID520DS5,112LE)
  • 40
    27620-43D00 ...JOINT ASSY, CHAIN
    ...JOINT ASSY, CHAIN
  • 41
    09280-20006 O RING (D:1.9,ID:19.8)
    O RING (D:1.9,ID:19.8)
  • 42
    09380-22006 CIRCLIP, ENGINE SPROCKET
    CIRCLIP, ENGINE SPROCKET
  • 43
    24741-20A00 RETAINER, DRIVE SHAFT
    RETAINER, DRIVE SHAFT
  • 44
    02122-06123 SCREW
    SCREW
