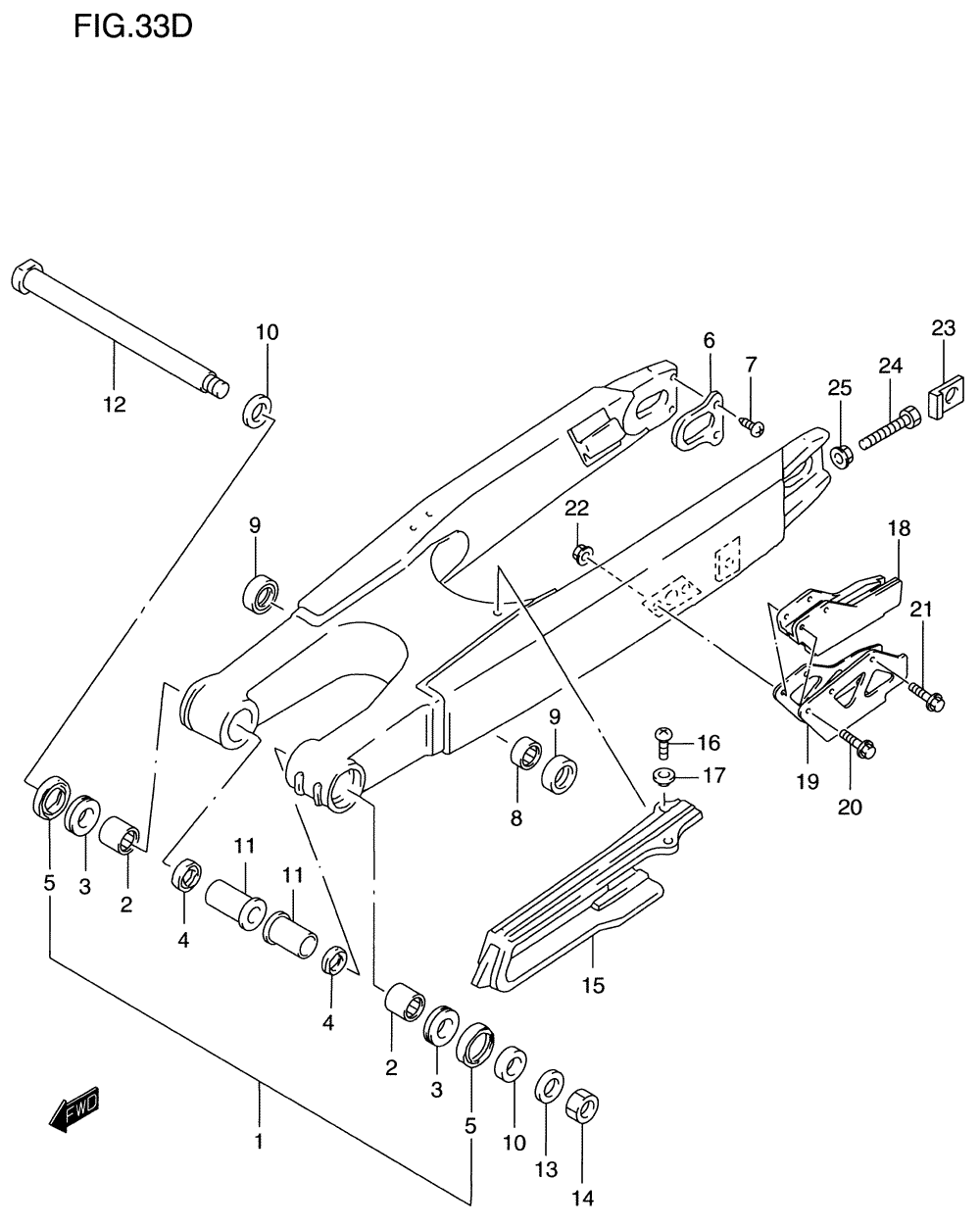

SUSPENSION - REAR ARM для Suzuki RM250Y - 2000 года выпуска

№

Артикул

Название
1

61000-37E20 SWINGING ARM ASSY (REAR)

SWINGING ARM ASSY (REAR)
2

09263-22017 ...BEARING, PIVOT (22X29X30)

...BEARING, PIVOT (22X29X30)
3

09263-22064 ...BEARING (OUTER) (22X35X2)

...BEARING (OUTER) (22X35X2)
4

09285-22001 ...SEAL (INNER) (22X29X4)

...SEAL (INNER) (22X29X4)
5

61262-36E00 ...SEAL (OUTER) (29.2X37X4)

...SEAL (OUTER) (29.2X37X4)
6

61128-37E20 ...PLATE (INNER)

...PLATE (INNER)
7

02122-04103 ...SCREW (4X10)

...SCREW (4X10)
8

09263-20086 ...BEARING, ROD (20X27X15)

...BEARING, ROD (20X27X15)
9

62624-14500 SEAL (REAR) (19X27X4)

SEAL (REAR) (19X27X4)
10

61251-36E01 SPACER, PIVOT (OUTER)

SPACER, PIVOT (OUTER)
11

61252-36E00 SPACER, PIVOT (INNER)

SPACER, PIVOT (INNER)
12

61211-28C00 SHAFT, PIVOT

SHAFT, PIVOT
13

08322-01163 WASHER

WASHER
14

09159-16007 NUT

NUT
15

61273-36E40 BUFFER, CHAIN TOUCH DEFENSE

BUFFER, CHAIN TOUCH DEFENSE
16

02112-05123 SCREW

SCREW
17

09169-05022 WASHER

WASHER
18

61341-36E30 GUIDE, CHAIN

GUIDE, CHAIN
19

61342-36E30 PLATE, GUIDE (OUTER)

PLATE, GUIDE (OUTER)
20

01547-06503 BOLT (UPPER)

BOLT (UPPER)
21

01547-06123 BOLT (REAR)

BOLT (REAR)
22

08319-31063 NUT

NUT
23

61445-36E40 WASHER, CHAIN ADJUSTER

WASHER, CHAIN ADJUSTER
24

09100-08287 BOLT (8X50)

BOLT (8X50)
25

09159-08034 NUT

NUT
