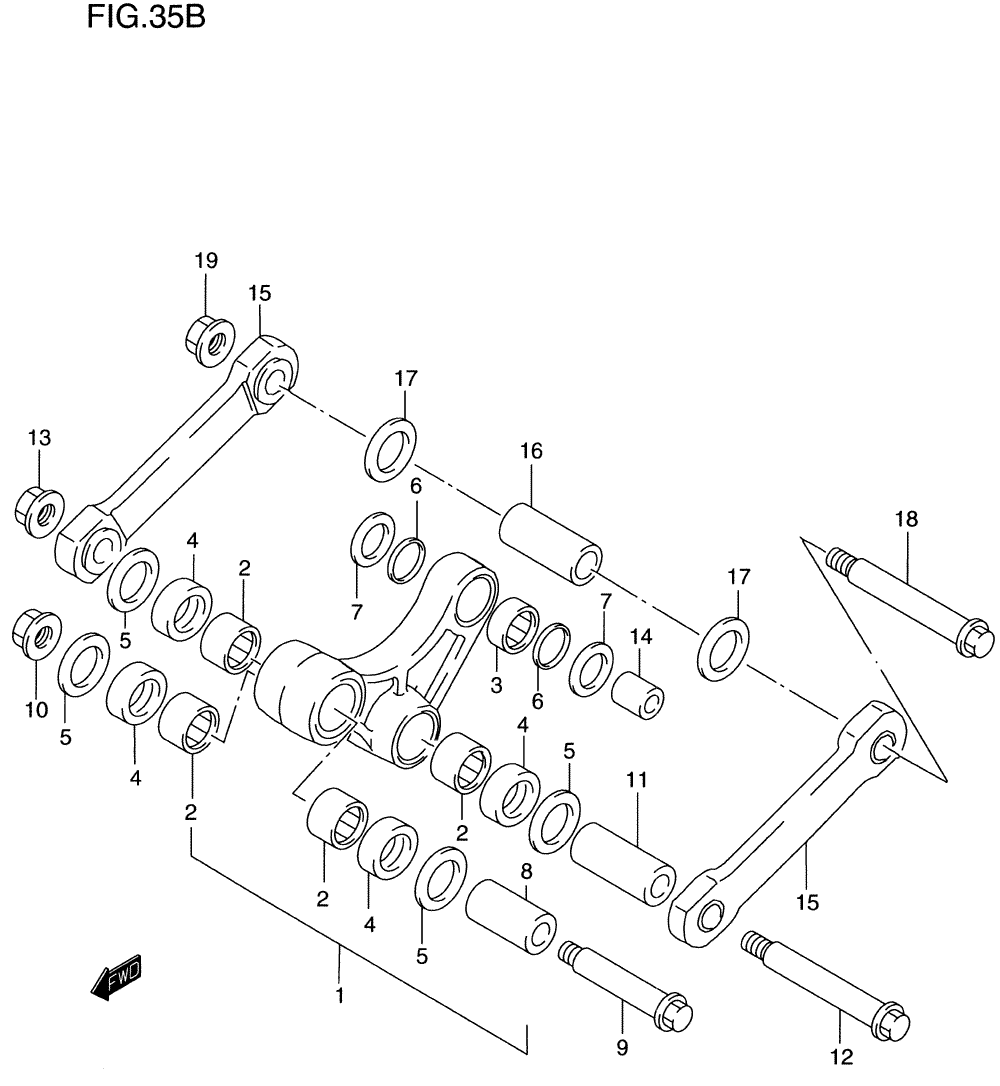

SUSPENSION - CUSHION LEVER для Suzuki RM250Y - 2000 года выпуска
-
№АртикулНазвание
-
162600-37830 LEVER SET, CUSHION (REAR)LEVER SET, CUSHION (REAR)
-
209263-20086 ...BEARING (20X27X15)...BEARING (20X27X15)
-
309263-16033 ...BEARING (16X22X12)...BEARING (16X22X12)
-
462624-14500 SEAL, DUST (19X27X4)SEAL, DUST (19X27X4)
-
562647-37E00 THRUST WASHER (20X32.5X1.6)THRUST WASHER (20X32.5X1.6)
-
609284-16005 SEAL (REAR) (16X22X2.5)SEAL (REAR) (16X22X2.5)
-
762685-37E00 THRUST WASHER (16X28.5X1.6)THRUST WASHER (16X28.5X1.6)
-
862317-37E10 SPACEER (FRONT) (15X20X45)SPACEER (FRONT) (15X20X45)
-
962658-37E01 BOLT (FRONT) (12X76)BOLT (FRONT) (12X76)
-
1008319-31128 NUTNUT
-
1162646-37E10 SPACER (CENTER) (15X20X57.4)SPACER (CENTER) (15X20X57.4)
-
1262621-37E01 BOLT (CENTER) (12X100)BOLT (CENTER) (12X100)
-
1308319-31128 NUTNUT
-
1462684-36E10 SPACER (REAR) (10X16X22)SPACER (REAR) (10X16X22)
-
1562640-37E11 ROD, CUSHION LEVER (REAR)ROD, CUSHION LEVER (REAR)
-
1662646-37E10 SPACER, ROD (15X20X57.4)SPACER, ROD (15X20X57.4)
-
1762647-37E00 THRUST WASHER (20X32.5X1.6)THRUST WASHER (20X32.5X1.6)
-
1862621-37E01 BOLT, ROD (12X100)BOLT, ROD (12X100)
-
1908319-31128 NUTNUT
