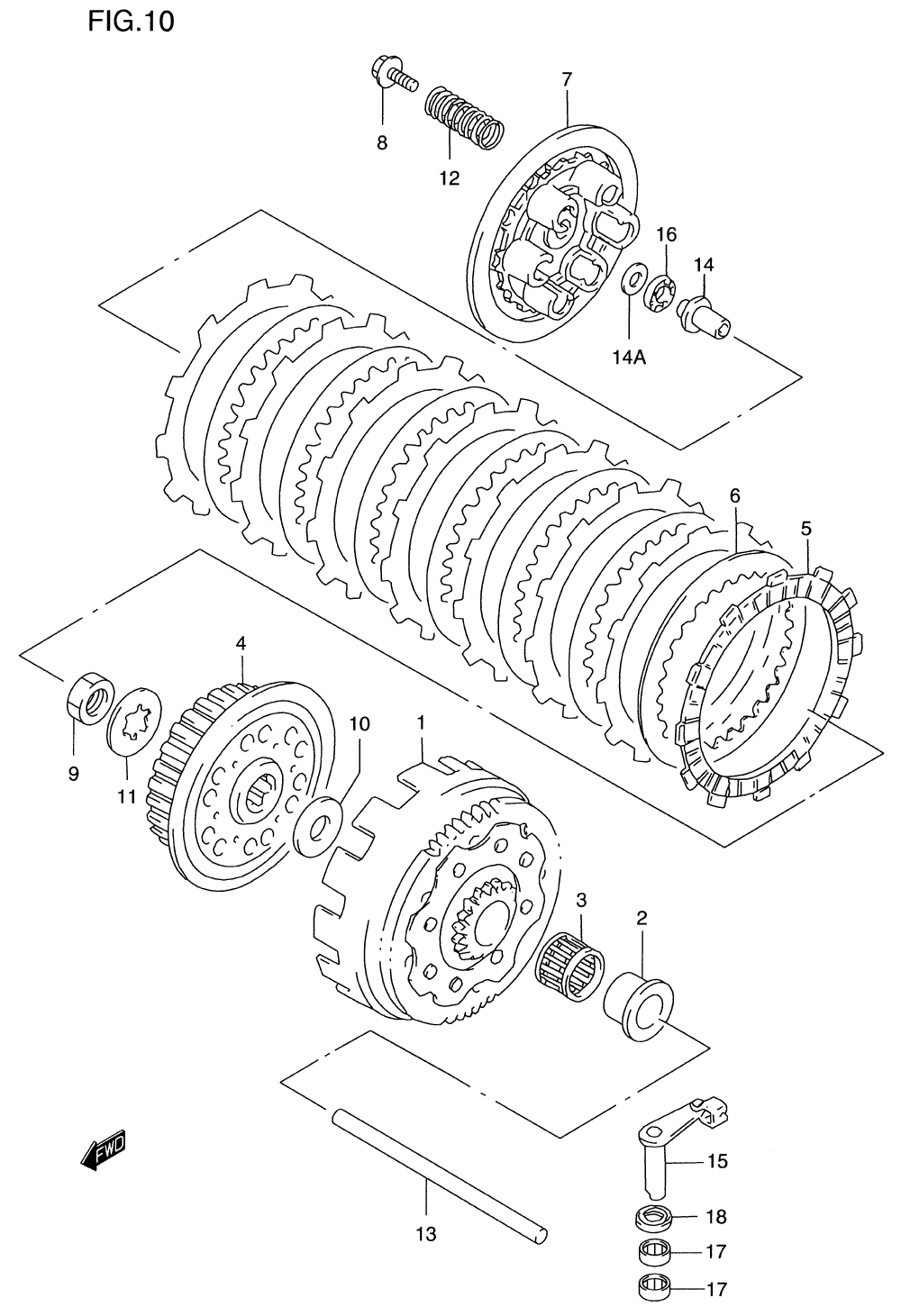

CLUTCH ASSY. для Suzuki RM250Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1-2
    21200-37E02 GEAR ASSY, PRIMARY DRIVEN (NT:63/21)
    GEAR ASSY, PRIMARY DRIVEN (NT:63/21)
  • 2
    21251-37E00 SPACER, PRIMARY DRIVEN GEAR
    SPACER, PRIMARY DRIVEN GEAR
  • 3
    09263-29009 BEARING, PRIMARY DRIVEN (29X34X27)
    BEARING, PRIMARY DRIVEN (29X34X27)
  • 4-3
    21410-37E10 HUB, CLUTCH SLEEVE
    HUB, CLUTCH SLEEVE
  • 5-3
    21441-37E20 PLATE, CLUTCH DRIVE
    PLATE, CLUTCH DRIVE
  • 6-2
    21451-37E10 PLATE, CLUTCH DRIVEN
    PLATE, CLUTCH DRIVEN
  • 7-3
    21462-37E02 DISK, CLUTCH PRESSURE
    DISK, CLUTCH PRESSURE
  • 8
    09116-05019 BOLT, CLUTCH (5X25)
    BOLT, CLUTCH (5X25)
  • 9
    09140-18013 NUT, CLUTCH SLEEVE HUB
    NUT, CLUTCH SLEEVE HUB
  • 10
    09160-22067 WASHER, CLUTCH HUB THR (22X38X2)
    WASHER, CLUTCH HUB THR (22X38X2)
  • 11
    09167-22021 WASHER, CLUTCH HUB (22X42X0.8)
    WASHER, CLUTCH HUB (22X42X0.8)
  • 12-3
    09440-18029 SPRING, CLUTCH
    SPRING, CLUTCH
  • 13
    23111-37E00 ROD, CLUTCH PUSH
    ROD, CLUTCH PUSH
  • 14-2
    23121-37E01 PIECE, CLUTCH PUSH
    PIECE, CLUTCH PUSH
  • 14A
    09181-10186 SHIM (10X20X0.50)
    SHIM (10X20X0.50)
  • 15
    23200-37E00 CAMSHAFT, CLUTCH RELEASE
    CAMSHAFT, CLUTCH RELEASE
  • 16
    09263-10002 BEARING, CLUTCH RELEASE (10.1X22X2.8)
    BEARING, CLUTCH RELEASE (10.1X22X2.8)
  • 17
    09263-12024 BEARING, NO.2 (12X16X10)
    BEARING, NO.2 (12X16X10)
  • 18
    09285-12004 SEAL, CL RELEASE CAMSHAFT (12X19X5)
    SEAL, CL RELEASE CAMSHAFT (12X19X5)
