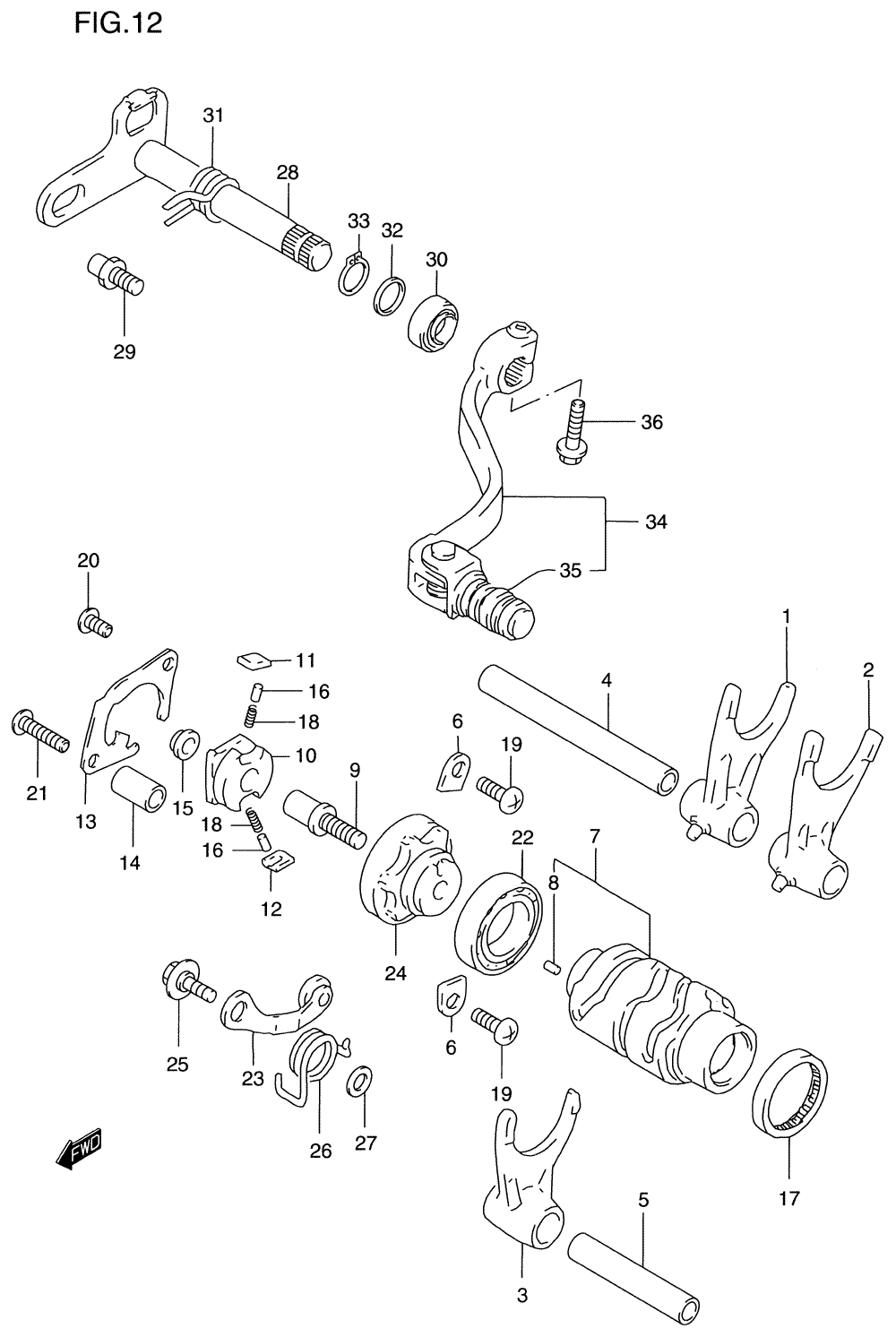

GEAR SHIFTING для Suzuki RM250Y - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    25211-28C01 FORK, GEAR SHIFT,NO.1
    FORK, GEAR SHIFT,NO.1
  • 2-2
    25221-37E10 FORK, GEAR SHIFT,NO.2
    FORK, GEAR SHIFT,NO.2
  • 3
    25231-28C02 FORK, GEAR SHIFT,NO.3
    FORK, GEAR SHIFT,NO.3
  • 4-2
    25411-27C01 SHAFT, GEAR FORK,NO.1
    SHAFT, GEAR FORK,NO.1
  • 5-2
    25421-27C01 SHAFT, GEAR FORK,NO.2
    SHAFT, GEAR FORK,NO.2
  • 6
    24741-21A00 RETAINER, SHIFT CAM BRG
    RETAINER, SHIFT CAM BRG
  • 7
    25310-37E00 CAM,GEAR SHIFT
    CAM,GEAR SHIFT
  • 8
    04221-04089 ...PIN, SHIFT CAM
    ...PIN, SHIFT CAM
  • 9-2
    25313-27C02 PIN, SHIFT
    PIN, SHIFT
  • 10-3
    25322-36E00 SHIFTER, GEAR SHIFT CAM
    SHIFTER, GEAR SHIFT CAM
  • 11
    25323-34201 PAWL, GEAR SHIFT,NO.1
    PAWL, GEAR SHIFT,NO.1
  • 12
    25324-34201 PAWL, GEAR SHIFT,NO.2
    PAWL, GEAR SHIFT,NO.2
  • 13
    25331-37E00 LIFTER, GEAR SHIFT PAWL
    LIFTER, GEAR SHIFT PAWL
  • 15
    09180-07014 ROLLER, GEAR CAM SHIFTER
    ROLLER, GEAR CAM SHIFTER
  • 16
    09261-05003 PIN, SHIFT POLE (5X8)
    PIN, SHIFT POLE (5X8)
  • 17
    09263-33004 BEARING, SHIFT CAM (LEFT) (33X38X8)
    BEARING, SHIFT CAM (LEFT) (33X38X8)
  • 18
    09440-04003 SPRING, SHIFT PAWL RETURN
    SPRING, SHIFT PAWL RETURN
  • 19
    02112-06123 SCREW, SHIFT CAM BRG
    SCREW, SHIFT CAM BRG
  • 20-2
    02122-06123 SCREW, SHIFT PAWL
    SCREW, SHIFT PAWL
  • 22
    08140-69050 BEARING, SHIFT CAM (RIGHT)
    BEARING, SHIFT CAM (RIGHT)
  • 23
    25350-28C20 STOPPER, SHIFT CAM
    STOPPER, SHIFT CAM
  • 24
    25381-28C20 PLATE, SHIFT CAM STOPPER
    PLATE, SHIFT CAM STOPPER
  • 25
    09111-06041 BOLT, SHIFT CAM STOPPER (6X14.3)
    BOLT, SHIFT CAM STOPPER (6X14.3)
  • 26-2
    09448-18025 SPRING, SHIFT CAM
    SPRING, SHIFT CAM
  • 27
    08211-06121 WASHER, SHIFT CAM
    WASHER, SHIFT CAM
  • 28
    25510-37E00 SHAFT, GEAR SHIFT
    SHAFT, GEAR SHIFT
  • 29
    25671-38B00 STOPPER, GEAR SHIFT ARM
    STOPPER, GEAR SHIFT ARM
  • 30
    09283-14006 SEAL, SHIFT SHAFT OIL (14X22X6)
    SEAL, SHIFT SHAFT OIL (14X22X6)
  • 31
    09444-20004 SPRING, SHIFT SHAFT RETURN
    SPRING, SHIFT SHAFT RETURN
  • 32-2
    09181-14139 WASHER, GEAR SHAFT (14X20X1.0)
    WASHER, GEAR SHAFT (14X20X1.0)
  • 33
    08331-31146 CIRCLIP, GEAR SHAFT
    CIRCLIP, GEAR SHAFT
  • 34-2
    25600-37E10 LEVER ASSY, GEAR SHIFT
    LEVER ASSY, GEAR SHIFT
  • 35
    25652-27C00 ...RUBBER, GEAR PEDAL
    ...RUBBER, GEAR PEDAL
  • 36
    01547-06253 BOLT, GEAR SHIFT
    BOLT, GEAR SHIFT
