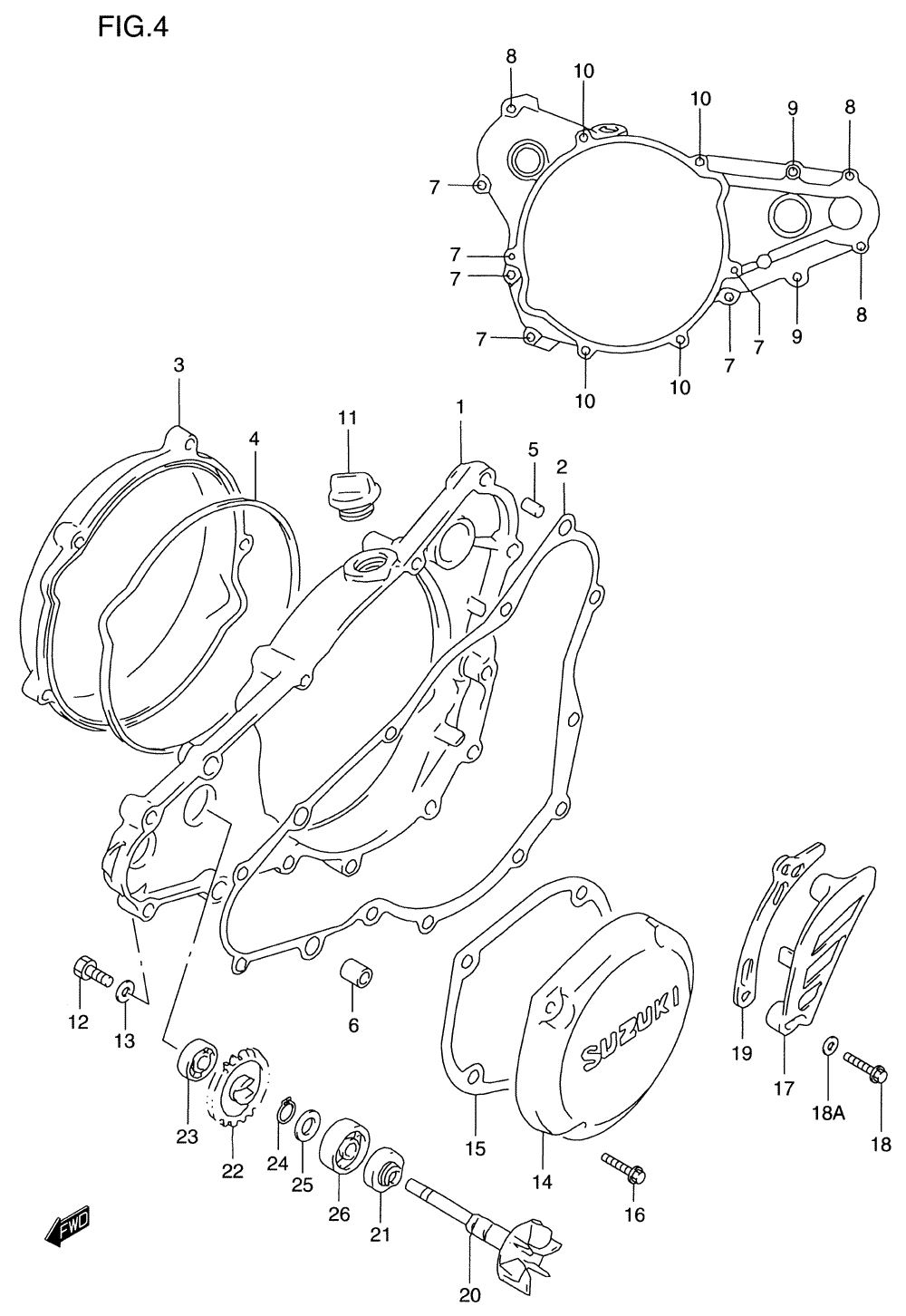

CRANKCASE COVER W/ WATER PUMP для Suzuki RM250Y - 2000 года выпуска`
-
№АртикулНазвание
-
111341-37E01 COVER, CLUTCHCOVER, CLUTCH
-
211482-37E01 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
311371-37E01 COVER, CLUTCH OUTERCOVER, CLUTCH OUTER
-
411484-37E00 O RING, CLUTCH OUTER COVERO RING, CLUTCH OUTER COVER
-
504211-09109 PINPIN
-
604211-11169 PINPIN
-
7-101547-06253 BOLT (UP TO FRAME NO.101530)BOLT (UP TO FRAME NO.101530)
-
7-201547-06253 BOLT (FRAME NO.101531 AND UP)BOLT (FRAME NO.101531 AND UP)
-
8-101547-06303 BOLT (UP TO FRAME NO.101530)BOLT (UP TO FRAME NO.101530)
-
8-201547-06303 BOLT (FRAME NO.101531 AND UP)BOLT (FRAME NO.101531 AND UP)
-
901547-06403 BOLTBOLT
-
1001547-06603 BOLTBOLT
-
1109200-20810 PLUG, OIL FILLERPLUG, OIL FILLER
-
12-209128-06044 SCREW, OIL LEVEL (6X10)SCREW, OIL LEVEL (6X10)
-
1309168-06004 GASKETGASKET
-
1411351-37E00 COVER, MAGNETOCOVER, MAGNETO
-
1511483-37E00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1601547-06203 BOLTBOLT
-
17-211360-36E00 COVER, SPROCKETCOVER, SPROCKET
-
18-201547-06303 BOLTBOLT
-
18A-209160-06126 WASHER (6.5X14X2)WASHER (6.5X14X2)
-
1927641-37E00 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
-
2017491-37E00 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
2117461-28C10 OIL SEAL, WATER PUMPOIL SEAL, WATER PUMP
-
22-217441-37E01 GEAR, WATER PUMP DRIVEN (NT:25)GEAR, WATER PUMP DRIVEN (NT:25)
-
2309262-08005 BEARING (RIGHT) (8X22X7)BEARING (RIGHT) (8X22X7)
-
2408331-31106 CIRCLIPCIRCLIP
-
25-209181-10111 WASHERWASHER
-
2609262-10014 BEARING (LEFT) (10X26X8)BEARING (LEFT) (10X26X8)
