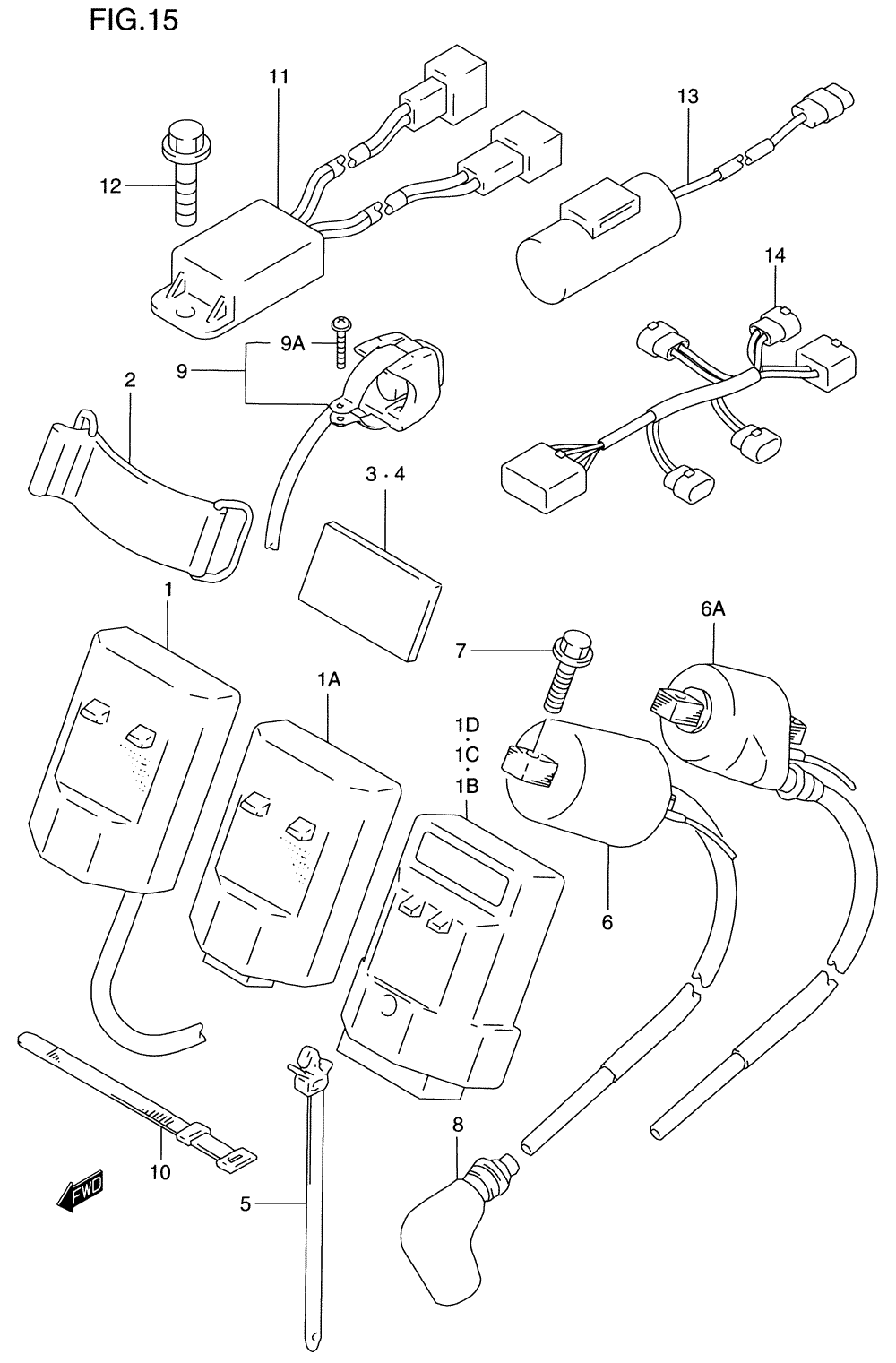

ELECTRICAL для Suzuki RM250Y - 2000 года выпуска`
-
№АртикулНазвание
-
1C32900-37E50 CDI, UNIT (USA)CDI, UNIT (USA)
-
1D32900-37E40 CDI, UNIT (CANADA)CDI, UNIT (CANADA)
-
2-232942-14111 BAND, CDI UNITBAND, CDI UNIT
-
333651-37000 PROTECTOR (170X95X3)PROTECTOR (170X95X3)
-
433651-37000 PROTECTOR (170X95X3)PROTECTOR (170X95X3)
-
5-109407-11402 CLAMP (L:105)CLAMP (L:105)
-
5-209407-25401 CLAMP (L:235)CLAMP (L:235)
-
6A33410-37E00 COIL ASSY, IGNITIONCOIL ASSY, IGNITION
-
701547-06163 BOLT, IGNITIONBOLT, IGNITION
-
833510-20A01 CAP, SPARK PLUGCAP, SPARK PLUG
-
937820-36E00 SWITCH ASSY, ENGINE STOPSWITCH ASSY, ENGINE STOP
-
9A02112-33165 ...SCREW...SCREW
-
1009407-12402 CLAMP, ENGINE STOP (L:128)CLAMP, ENGINE STOP (L:128)
-
1132800-37E20 RECTIFIER ASSYRECTIFIER ASSY
-
1201547-06123 BOLTBOLT
-
1333640-37E20 CONDENSER ASSYCONDENSER ASSY
-
1436610-37E40 HARNESS, WIRINGHARNESS, WIRING
