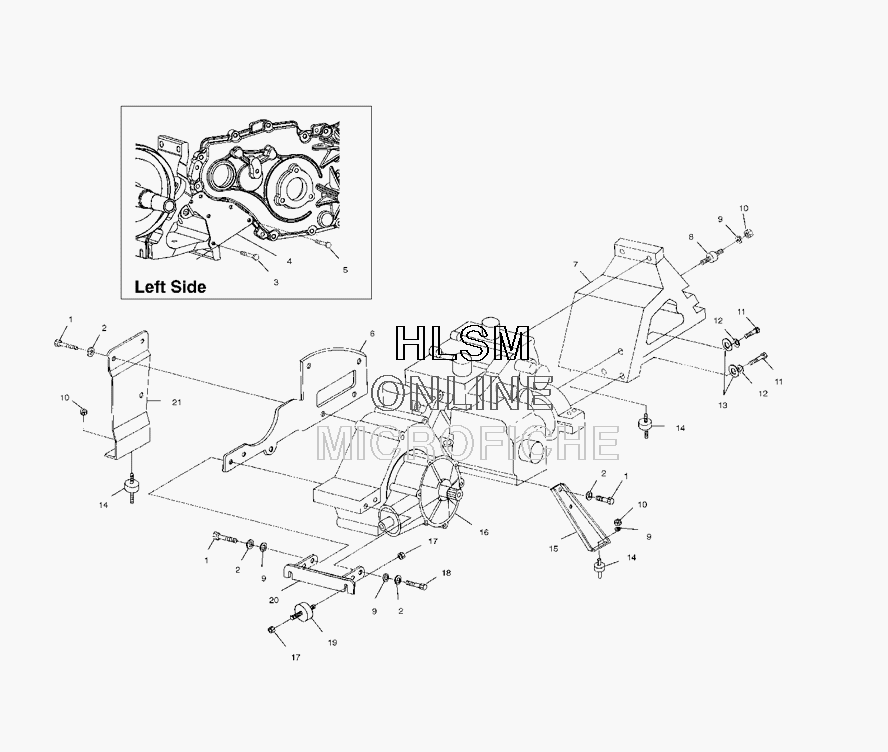

TRANSMISSION W/ ENGINE MOUNTING для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска
-
№АртикулНазвание
-
17512492 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37512232 BOLTBOLT
-
41040684-067 BRKT, ENG/TRANS, COUPLER, BKBRKT, ENG/TRANS, COUPLER, BK
-
75131692 COUPLER, ENG/TRANS, MACHCOUPLER, ENG/TRANS, MACH
-
83110080 MOUNT, ENGINEMOUNT, ENGINE
-
97552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
107547108 NUTNUT
-
117512589 BOLTBOLT
-
127552614 WASHER, LOCKWASHER, LOCK
-
137555743 WASHERWASHER
-
143110026 MOUNT, MOTORMOUNT, MOTOR
-
151040627-067 MT, RIGHT HAND, R.TRANS, BLACKMT, RIGHT HAND, R.TRANS, BLACK
-
177542403 NUT LOCKNUT LOCK
-
187515534 SCREWSCREW
-
193110068 ISOLATOR-3/8-24M/M, 45DUROISOLATOR-3/8-24M/M, 45DURO
-
201012806-067 MOUNT, TRANS, REAR, TOP, BLACKMOUNT, TRANS, REAR, TOP, BLACK
-
211040626-067 MT, LEFT HAND, R.TRANS, BLACKMT, LEFT HAND, R.TRANS, BLACK
