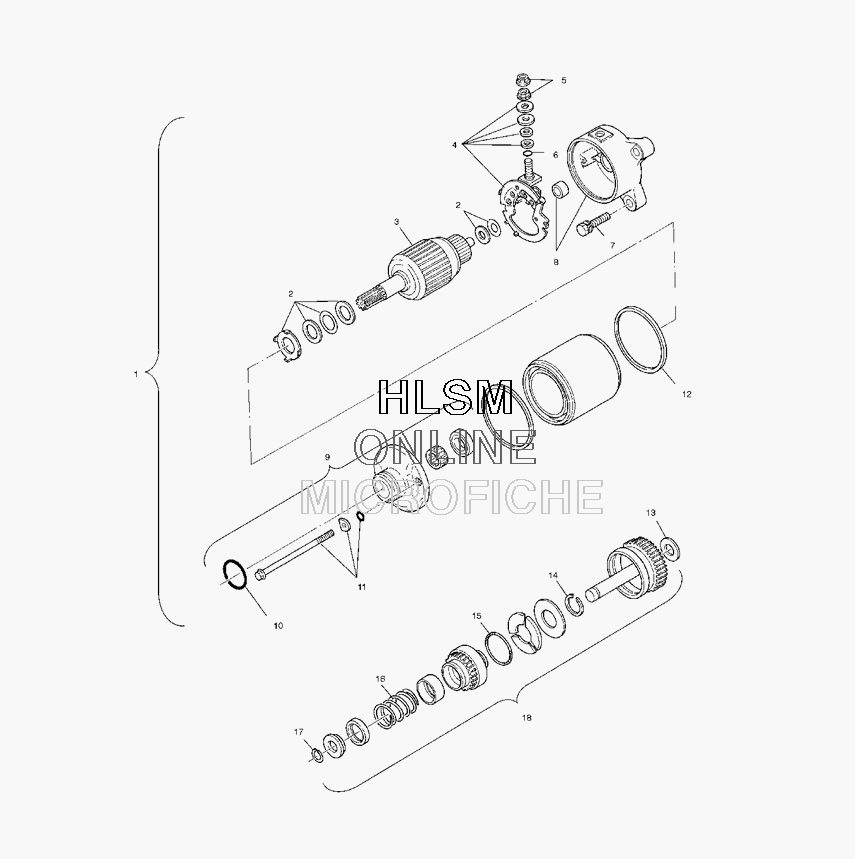

STARTING MOTOR для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска

  • №
    Артикул
    Название
  • 1
    3084981 ASM., MOTOR, STARTING (INC 2-6, 8-12)
    ASM., MOTOR, STARTING (INC 2-6, 8-12)
  • 2
    3084982 WASHER SET
    WASHER SET
  • 3
    3085353 ARMATURE ASM.
    ARMATURE ASM.
  • 4
    3084406 CARBON BRUSH SET
    CARBON BRUSH SET
  • 5
    3083649 NUT, FLANGE
    NUT, FLANGE
  • 6
    3084408 O-RING
    O-RING
  • 7
    3082038 BOLTANDWASHER ASM.
    BOLTANDWASHER ASM.
  • 8
    3085034 ASM., COVER, REAR
    ASM., COVER, REAR
  • 9
    3085033 ASM., BRACKET, FRONT (INC 10)
    ASM., BRACKET, FRONT (INC 10)
  • 10
    3240114 O-RING
    O-RING
  • 11
    3084983 BOLT ASM, SET (INC 6)
    BOLT ASM, SET (INC 6)
  • 12
    3084405 RING, RUBBER
    RING, RUBBER
  • 13
    3083737 WASHER
    WASHER
  • 14
    3084412 CLIP
    CLIP
  • 15
    3084411 SPRING, WEIGHT
    SPRING, WEIGHT
  • 16
    3084410 SPRING, RETURN
    SPRING, RETURN
  • 17
    3084409 CLIP
    CLIP
  • 18
    3085394 ASM-GEAR SHAFT (INC 13-17)
    ASM-GEAR SHAFT (INC 13-17)
