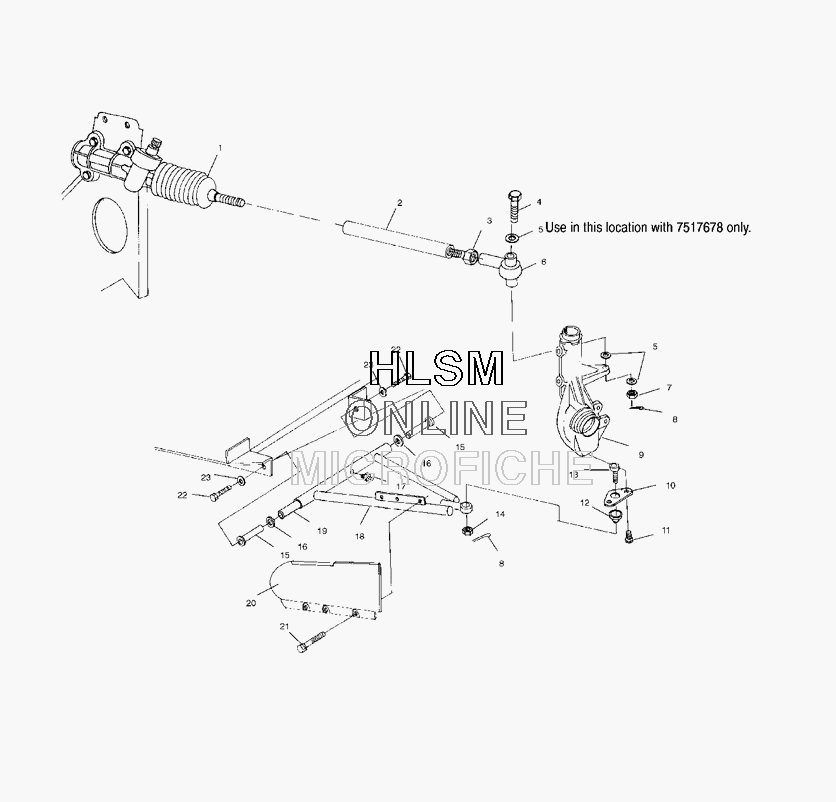

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска
-
№АртикулНазвание
-
21820709 ROD-TIE, LEFT HAND, M/F, RANGERROD-TIE, LEFT HAND, M/F, RANGER
-
21820710 ROD-TIE, RIGHT HAND, M/F, RANGERROD-TIE, RIGHT HAND, M/F, RANGER
-
37547028 NUT, JAM, LEFT HANDNUT, JAM, LEFT HAND
-
47517678 SCR-M-10X1.25, 60, HX (IF BUILT BEFORE 8/16/99)SCR-M-10X1.25, 60, HX (IF BUILT BEFORE 8/16/99)
-
47517674 BOLT-M10X1.25X65, HX WASH HD (IF BUILT AFTER 8/16/99)BOLT-M10X1.25X65, HX WASH HD (IF BUILT AFTER 8/16/99)
-
47517907 BOLT-7/16-20X2, HXCAP, GR5-Y (IF BUILT AFTER 1/01/01)BOLT-7/16-20X2, HXCAP, GR5-Y (IF BUILT AFTER 1/01/01)
-
57556099 WASHER (IF BUILT BEFORE 8/16/99) (IF BUILT AFTER 8/16/99 USE QTY. 4)WASHER (IF BUILT BEFORE 8/16/99) (IF BUILT AFTER 8/16/99 USE QTY. 4)
-
67061053 ROD-END, 10MM, 1/2-20LH, 42 DEG (IF BUILT BEFORE 8/16/99)ROD-END, 10MM, 1/2-20LH, 42 DEG (IF BUILT BEFORE 8/16/99)
-
67061054 ROD-END, 10MM, 1/2-20LH, 42 DEG (IF BUILT AFTER 8/16/99)ROD-END, 10MM, 1/2-20LH, 42 DEG (IF BUILT AFTER 8/16/99)
-
77546904 NUT, CASTLENUT, CASTLE
-
77547177 NUT-M10X1.25-HX-LOCK-Y (IF BUILT AFTER 1/01/01)NUT-M10X1.25-HX-LOCK-Y (IF BUILT AFTER 1/01/01)
-
87661203 PIN, COTTERPIN, COTTER
-
105211121 BRKT, BALL JOINTBRKT, BALL JOINT
-
117512284 BOLT, SOCKETBOLT, SOCKET
-
125410548 BOOT, RUBBERBOOT, RUBBER
-
137080673 BALL-JOINT, GREASELESS, STRUT (IF BUILT BEFORE 11/01/00)BALL-JOINT, GREASELESS, STRUT (IF BUILT BEFORE 11/01/00)
-
137080927 BALL-JOINT, GREASELESS, STRUT (IF BUILT AFTER 11/01/00)BALL-JOINT, GREASELESS, STRUT (IF BUILT AFTER 11/01/00)
-
147542438 NUT, CASTLENUT, CASTLE
-
155433066 BUSHING-A-ARM, LONG, BLKBUSHING-A-ARM, LONG, BLK
-
165020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
177080433 FITTING, LUBRICATION, THREADEDFITTING, LUBRICATION, THREADED
-
181040682-067 A-FRAME, LEFT HAND, BLACKA-FRAME, LEFT HAND, BLACK
-
181040683-067 A-FRAME, RIGHT HAND, BLACKA-FRAME, RIGHT HAND, BLACK
-
195131983 SHAFT-A-ARM (RANGER)SHAFT-A-ARM (RANGER)
-
205432731 SHIELD, RIGHT HAND, CV, BLACK.SHIELD, RIGHT HAND, CV, BLACK.
-
205432730 SHIELD, LEFT HAND, CV, BLACK.SHIELD, LEFT HAND, CV, BLACK.
-
217512084 SCREWSCREW
-
227512492 SCREWSCREW
-
237552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
