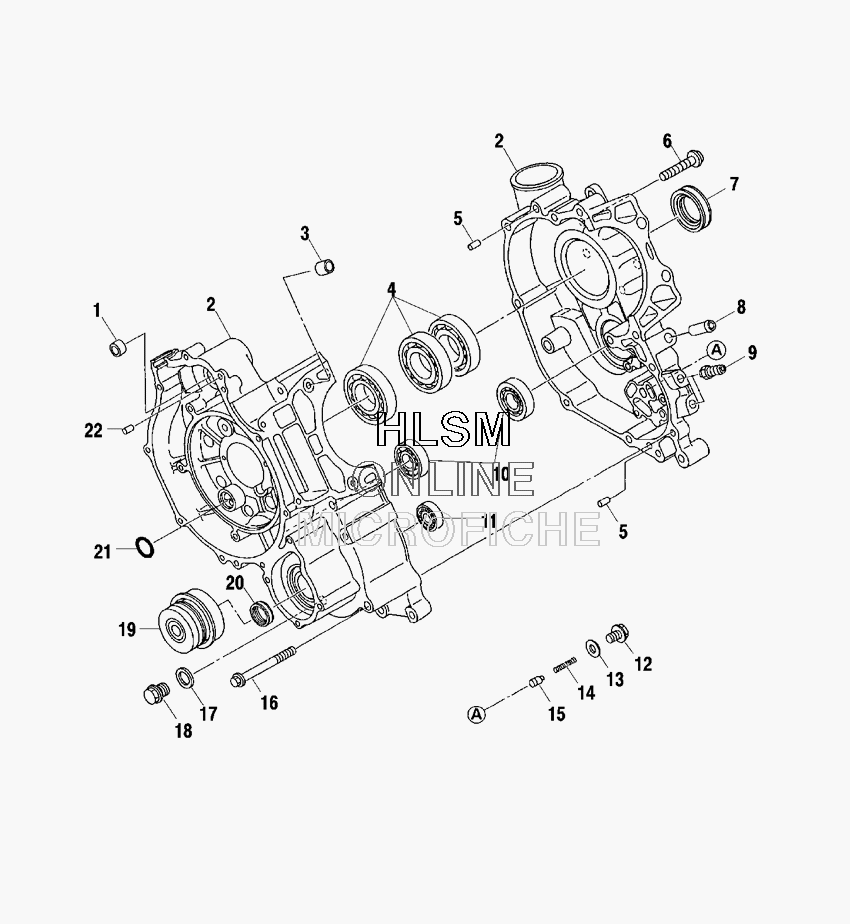

CRANKCASE для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска`
-
№АртикулНазвание
-
13083669 BUSHING, STARTERBUSHING, STARTER
-
23085633 CRANKCASE ASM. (INCL. 1, 4, 5, 7, 8, 10, 11, 16, 19, 20, 22)CRANKCASE ASM. (INCL. 1, 4, 5, 7, 8, 10, 11, 16, 19, 20, 22)
-
33084838 KNOCK, PIPEKNOCK, PIPE
-
43080676 BEARING, BALLBEARING, BALL
-
53084840 PIN, DOWELPIN, DOWEL
-
63084205 ASM., SCREW AND WASHERASM., SCREW AND WASHER
-
73084839 SEAL, OILSEAL, OIL
-
83085525 PIPE, AIR BREATHERPIPE, AIR BREATHER
-
93084842 UNIONUNION
-
103084834 BEARING, BALLBEARING, BALL
-
113084835 BEARING, BALLBEARING, BALL
-
123084845 PLUGPLUG
-
133084846 GASKET, (ALUM.)GASKET, (ALUM.)
-
143084844 SPRING, ONE WAY VALVESPRING, ONE WAY VALVE
-
153086810 VALVE-ONEWAYVALVE-ONEWAY
-
163084841 BOLT, FLANGEBOLT, FLANGE
-
173082956 GASKETGASKET
-
183083453 PLUGPLUG
-
193084837 SEAL, MECHANICALSEAL, MECHANICAL
-
203084836 SEAL, OILSEAL, OIL
-
213084847 O-RINGO-RING
-
223080103 PIN, DOWELPIN, DOWEL
