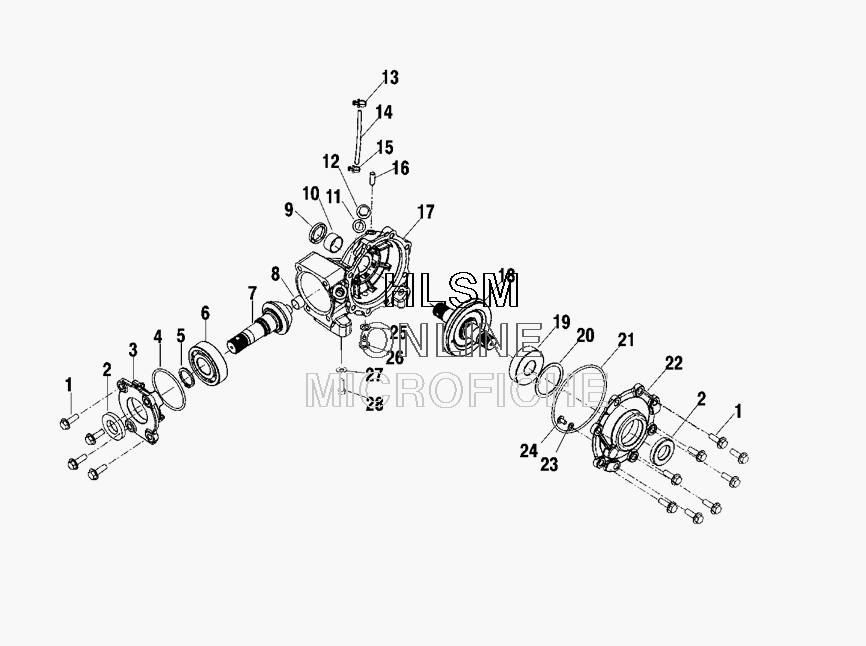

DIFFERENTIAL - FRONT (AFTER 1/01/99) для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска
-
№АртикулНазвание
-
-1341323 GEARCASE, FRONT, ASM. (INCL. 1-12, 16-26)GEARCASE, FRONT, ASM. (INCL. 1-12, 16-26)
-
13233252 SCREWSCREW
-
23233248 SEAL-TRIPLE LIPSEAL-TRIPLE LIP
-
33233701 INPUT COVER-FRONT HOUSINGINPUT COVER-FRONT HOUSING
-
43233700 O-RINGO-RING
-
53233699 RING-RETAININGRING-RETAINING
-
63233589 BEARING, BALLBEARING, BALL
-
73233726 PINION, INPUT, 14TPINION, INPUT, 14T
-
83233541 BUSHING, GARLOCKBUSHING, GARLOCK
-
93233319 SEALSEAL
-
103233697 BUSHINHG-GARLOCKBUSHINHG-GARLOCK
-
113233324 WASHERWASHER
-
123233711 PLUG, OIL FILLPLUG, OIL FILL
-
137080409 CLAMP, WIRE ROUTINGCLAMP, WIRE ROUTING
-
148450003-1525 LINE, FUEL, 1/4 ID (1525 CM.)LINE, FUEL, 1/4 ID (1525 CM.)
-
157080307 CLAMP, HOSECLAMP, HOSE
-
163233524 TUBE, VENTTUBE, VENT
-
173233696 GEARCASEGEARCASE
-
183233725 SHAFT, OUTPUT, 29TSHAFT, OUTPUT, 29T
-
193233020 BEARINGBEARING
-
203233554 SHIMSHIM
-
213233693 O-RINGO-RING
-
223233724 COVER, OUTPUTCOVER, OUTPUT
-
233233583 SHIM .450 X .265SHIM .450 X .265
-
243233582 BUTTON, THRUSTBUTTON, THRUST
-
253233254 WASHER, PLUGWASHER, PLUG
-
263233253 PLUG-HEX FLANGEPLUG-HEX FLANGE
-
277552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
287512492 SCREWSCREW
