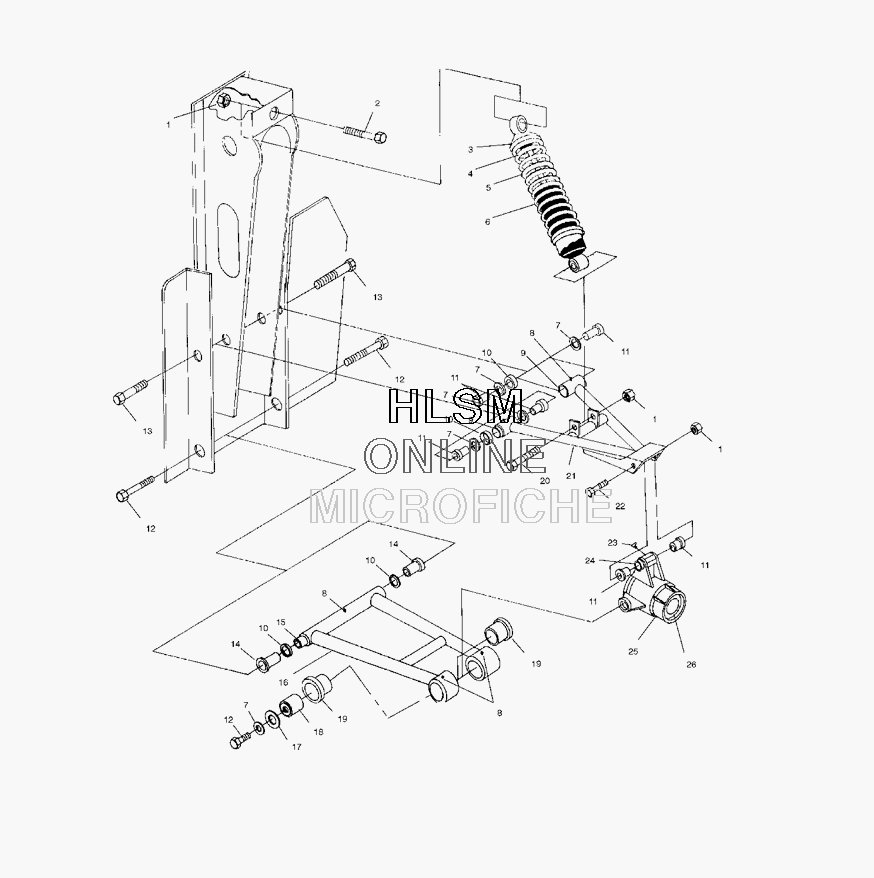

SUSPENSION - MIDDLE SHOCK MOUNTING для Polaris RANGER 500 [A99RF50AA] - 1999 года выпуска
-
№АртикулНазвание
-
17542403 NUT LOCKNUT LOCK
-
27515433 SCREWSCREW
-
35210953 RETAINER, SPRINGRETAINER, SPRING
-
45220225 RETAINER-TOPRETAINER-TOP
-
57041658-195 SPRING, MID AXLESPRING, MID AXLE
-
67041663 SHOCK, MIDDLE AXLESHOCK, MIDDLE AXLE
-
77552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87080433 FITTING, LUBRICATION, THREADED(10FITTING, LUBRICATION, THREADED(10
-
95020951 SHAFT, A-ARM, SHORT, MID AXLESHAFT, A-ARM, SHORT, MID AXLE
-
105020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
115433063 BUSHING-A-ARM-SHORT, BLKBUSHING-A-ARM-SHORT, BLK
-
127517297 SCREWSCREW
-
137512492 SCREWSCREW
-
145433066 BUSHING-A-ARM, LONG, BLKBUSHING-A-ARM, LONG, BLK
-
155020681 SHAFT, A-ARMSHAFT, A-ARM
-
161040635-067 A-ARM, MID-AXLE, LOW, BLACKA-ARM, MID-AXLE, LOW, BLACK
-
177555936 WASHERWASHER
-
185131883 BUSHING, BRNG.CARRIERBUSHING, BRNG.CARRIER
-
195433065 BUSHING-CONTROL, LOWER, BLKBUSHING-CONTROL, LOWER, BLK
-
207515415 SCREWSCREW
-
211040636-067 A-ARM, MID AXLE, UP.BLACKA-ARM, MID AXLE, UP.BLACK
-
227515472 BOLTBOLT
-
237080586 FITTING, LUBE, 45 DEG.FITTING, LUBE, 45 DEG.
-
245020826 SHAFT, A-ARM, SHORTSHAFT, A-ARM, SHORT
-
255131738 CARRIER-BEARING, WHEEL (MACH)CARRIER-BEARING, WHEEL (MACH)
-
263585502 BEARINGBEARING
