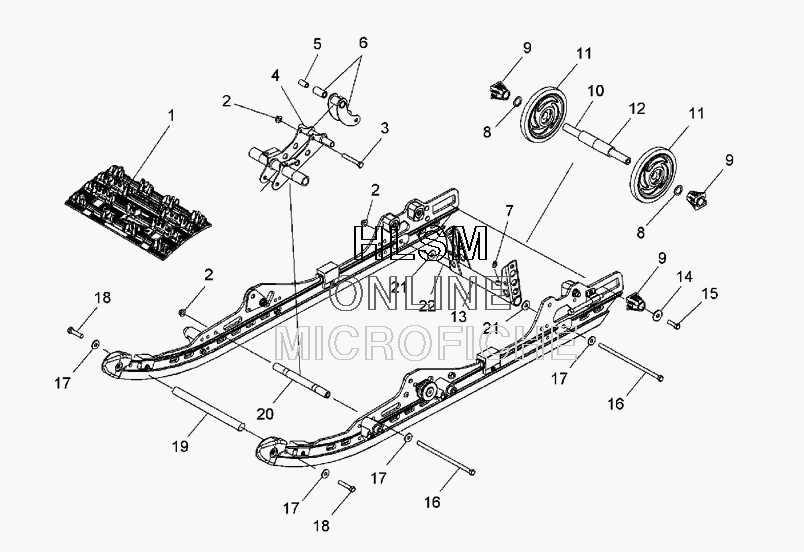

SUSPENSION - REAR для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска
-
№АртикулНазвание
-
15412281 TRACK-121'' X 15'' X .91'' SHOCKWATRACK-121'' X 15'' X .91'' SHOCKWA
-
15222840 CLIP-GUIDE, CAMOPLAST TRACKCLIP-GUIDE, CAMOPLAST TRACK
-
27547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
37515417 SCREWSCREW
-
41542465-067 BRACKETBRACKET
-
55333906 SLEEVE, .385X.560X1.72SLEEVE, .385X.560X1.72
-
61542059-067 SHOCK PIVOT, BLACKSHOCK PIVOT, BLACK
-
65134600 BUSHINGBUSHING
-
77080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
87555918 BUSHINGBUSHING
-
95432535 SPACER, IDLERSPACER, IDLER
-
105335232 SHAFT-IDLER, .784 X 12.275SHAFT-IDLER, .784 X 12.275
-
111590388-070 ASM-WHEEL, SCRLD, 7.25, 6004, BLACKASM-WHEEL, SCRLD, 7.25, 6004, BLACK
-
117710444 RING, RETAININGRING, RETAINING
-
113514384 BEARING-.7874X1.6535X.4724, NTNBEARING-.7874X1.6535X.4724, NTN
-
125333283 SPACER, IDLER, CTRIGHT HANDSPACER, IDLER, CTRIGHT HAND
-
131541928-067 REAR PIVOT ARM, 4.00, BLACKREAR PIVOT ARM, 4.00, BLACK
-
147556130 WASHER-.406X1.25X.125WASHER-.406X1.25X.125
-
157517731 BOLT, 3/8-16X1.25BOLT, 3/8-16X1.25
-
167517921 SCR-3/8-24X9.875, HX/LP, GR8-YSCR-3/8-24X9.875, HX/LP, GR8-Y
-
177556188 WASHER-FLEFT HAND390X.750X.065-YWASHER-FLEFT HAND390X.750X.065-Y
-
187518005 SCR-3/8-16X1.50-HX/CP-GR5-P80YSCR-3/8-16X1.50-HX/CP-GR5-P80Y
-
195134078 SHAFT-C'BORE, .688X8.665, 2045SHAFT-C'BORE, .688X8.665, 2045
-
205134517 SHAFT-.795X8.665, 6066SHAFT-.795X8.665, 6066
-
217555893 WASHER, FLATWASHER, FLAT
-
225333404 SHAFTSHAFT
