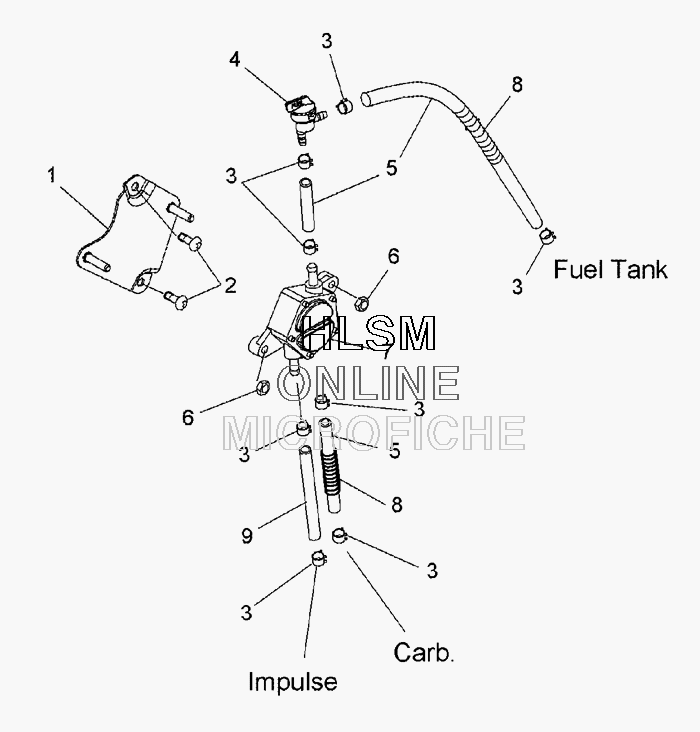

FUEL PUMP W/LINES для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска`
-
№АртикулНазвание
-
11015544 ASM-BRKT-FUEL PUMP MNTASM-BRKT-FUEL PUMP MNT
-
27515148 SCREWSCREW
-
37080003 CLAMP, HOSECLAMP, HOSE
-
41253424 ASM-VALVE, FUEL, PLASTIC 90°5/16ASM-VALVE, FUEL, PLASTIC 90°5/16
-
58350017-160 FUEL, LINE, ETHER, RED, 5/16''FUEL, LINE, ETHER, RED, 5/16''
-
67542122 NUT-NYLOKNUT-NYLOK
-
72520694 PUMP-FUEL, 5/16 IN/OUT, 600HOPUMP-FUEL, 5/16 IN/OUT, 600HO
-
88360052-305 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
98450040-600 LINE FUEL, 1/4 ID (600 CM.)LINE FUEL, 1/4 ID (600 CM.)
