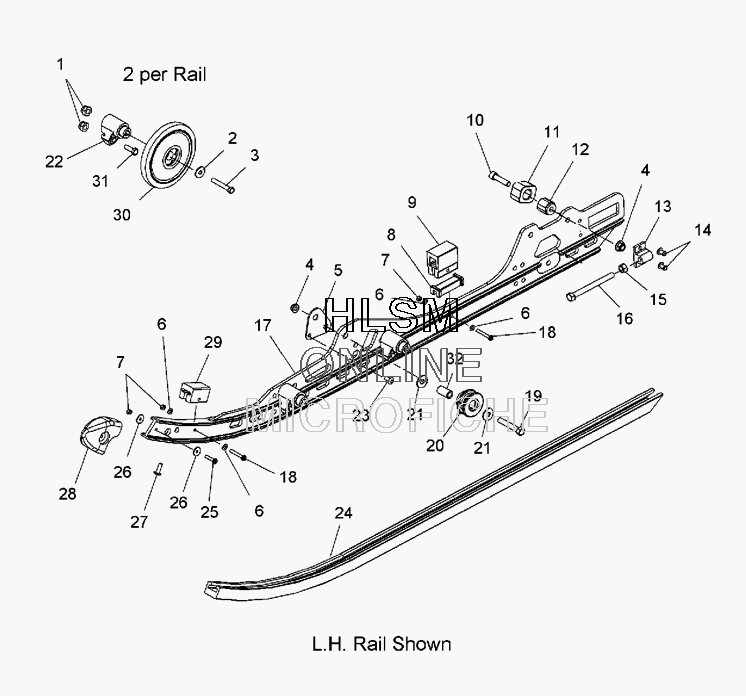

SUSPENSION - RAIL MOUNTING для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27556179 WASHER-SPRING, CON 5/16X.090-YWASHER-SPRING, CON 5/16X.090-Y
-
37515346 SCREWSCREW
-
47547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
55248414 BRKT-RAIL REINFBRKT-RAIL REINF
-
67555783 WASHER, FLATWASHER, FLAT
-
77541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
85432946 LINER, BUMPERLINER, BUMPER
-
95521498 BUMPER, JOUNCE REARBUMPER, JOUNCE REAR
-
107515537 BOLTBOLT
-
115410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
125131113 MOUNT, BUMPERMOUNT, BUMPER
-
135130530 BLOCK-IDLER BOLT ADJ.BLOCK-IDLER BOLT ADJ.
-
147621501 RIVETRIVET
-
157542404 NUTNUT
-
167517227 SCREWSCREW
-
171542332 ASM-RAIL, IQ, 121 BASIC, LEFT HAND [INCL 6-9, 13, 14, 18, 25, 26, 28, 29]ASM-RAIL, IQ, 121 BASIC, LEFT HAND [INCL 6-9, 13, 14, 18, 25, 26, 28, 29]
-
171542333 ASM-RAIL, IQ, 121 BASIC, RIGHT HAND [INCL 6-9, 13, 14, 18, 25, 26, 28, 29]ASM-RAIL, IQ, 121 BASIC, RIGHT HAND [INCL 6-9, 13, 14, 18, 25, 26, 28, 29]
-
187510504 SCREWSCREW
-
197515415 SCREW[10]SCREW[10]
-
205432982 ROLLER, SPRING, SQUARE, X10ROLLER, SPRING, SQUARE, X10
-
217555983 WASHER, FLATWASHER, FLAT
-
225631446 BLOCK-WHEEL MOUNT, 6004BLOCK-WHEEL MOUNT, 6004
-
237661845 RIVETRIVET
-
245521632 SLIDER, .45/61'', SERVICE, BASICSLIDER, .45/61'', SERVICE, BASIC
-
257518335 BOLT-10-24X1BOLT-10-24X1
-
267555792 WASHERWASHER
-
277515199 SCREWSCREW
-
285435527 CAP-RAIL TIP, UHMWCAP-RAIL TIP, UHMW
-
295521499 BUMPER, JOUNCE FRONTBUMPER, JOUNCE FRONT
-
301590419-070 ASM-WHEEL, 5.62, 6004, BLACKASM-WHEEL, 5.62, 6004, BLACK
-
303514384 BEARING-.7874X1.6535X.4724, NTN [1 PER WHEEL]BEARING-.7874X1.6535X.4724, NTN [1 PER WHEEL]
-
307710444 RING, RETAINING [1 PER WHEEL]RING, RETAINING [1 PER WHEEL]
-
317515317 BOLTBOLT
-
325135933 BUSHINGBUSHING
