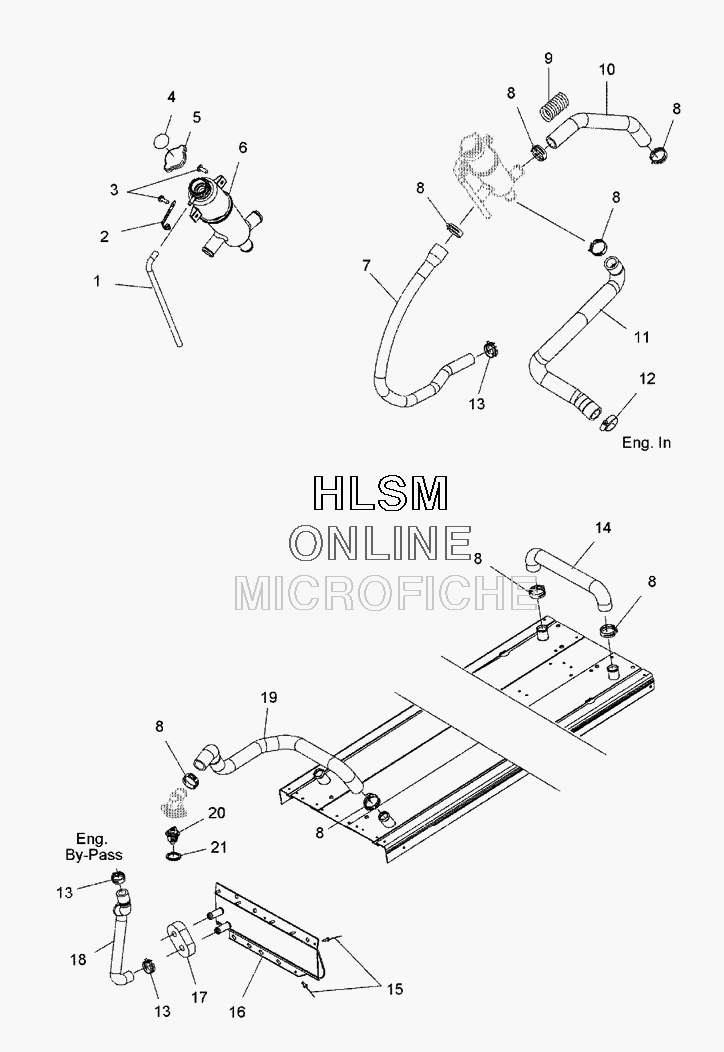

COOLING SYSTEM для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска
-
№АртикулНазвание
-
18450003-1525 LINE, FUEL, 1/4 ID (1525 CM.)LINE, FUEL, 1/4 ID (1525 CM.)
-
27080884 CLIP, JCLIP, J
-
37515148 SCREWSCREW
-
47170063 DECAL-WATER BOTTLE CAPDECAL-WATER BOTTLE CAP
-
51240169 CAP-PRESSURECAP-PRESSURE
-
62520469 COOLANT BOTTLECOOLANT BOTTLE
-
75413046 HOSE-CENTER COOLER/BOTTLEHOSE-CENTER COOLER/BOTTLE
-
87080844 CLAMP, SPRINGBAND 35/12, BLACKCLAMP, SPRINGBAND 35/12, BLACK
-
95521510 TUBING-CONVOLUTED 1.25''X3''TUBING-CONVOLUTED 1.25''X3''
-
105413045 HOSE-TUNNEL COOLER/BOTTLEHOSE-TUNNEL COOLER/BOTTLE
-
115413006 HOSE-BOTTLE/INLETHOSE-BOTTLE/INLET
-
127080560 CLAMP, HOSE S.S.CLAMP, HOSE S.S.
-
137080841 CLAMP, SPRINGBAND 27/12, GREENCLAMP, SPRINGBAND 27/12, GREEN
-
145413240 HOSE-CROSSOVER, TUNNELHOSE-CROSSOVER, TUNNEL
-
157661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
161240263 WELD-COOLER, BULKHEADWELD-COOLER, BULKHEAD
-
175813082 SEAL-FRT CLOSEOFF COOLERSEAL-FRT CLOSEOFF COOLER
-
185413199 HOSE-BY-PASS/CENTER COOLERHOSE-BY-PASS/CENTER COOLER
-
195413053 HOSE-ENGINE OUT/TUNNEL COOLHOSE-ENGINE OUT/TUNNEL COOL
-
207052433 THERMO-120°F W/O BYPASS HDTHERMO-120°F W/O BYPASS HD
-
215411521 O-RING, LIPSEALO-RING, LIPSEAL
