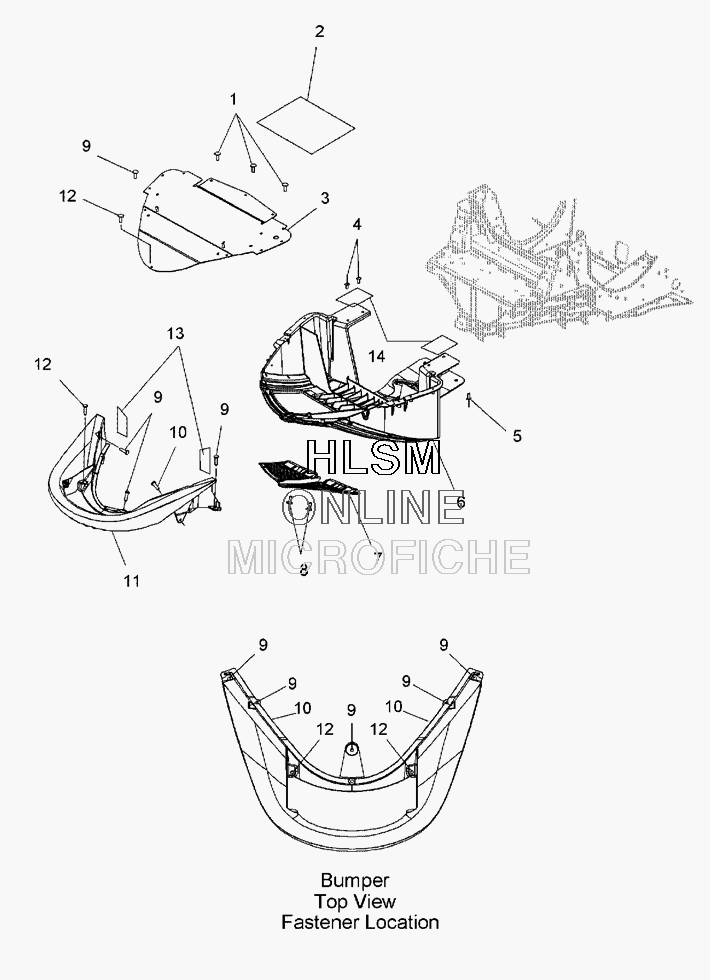

FRONT BUMPER W/NOSEPAN для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска
-
№АртикулНазвание
-
17518284 SCR-#10-24 5/8 TOP R TH TX YSCR-#10-24 5/8 TOP R TH TX Y
-
25813121 FOIL-AIR DAMFOIL-AIR DAM
-
31015582 ASM-AIR DAM,W/FIBERASM-AIR DAM,W/FIBER
-
47621418 RIVET,POPRIVET,POP
-
57621467 RIVET, BLINDRIVET, BLIND
-
65435075-070 NOSEPAN-BLACKNOSEPAN-BLACK
-
75435344-070 SCREEN-NOSEPAN, LEFT HAND, BLACKSCREEN-NOSEPAN, LEFT HAND, BLACK
-
87670101 CLIP,X-MAS TREECLIP,X-MAS TREE
-
97517441 SCREW, .75SCREW, .75
-
107512026 SCREWSCREW
-
115435794-070 BUMPER-FRONT, BLACKBUMPER-FRONT, BLACK
-
127512078 SCREW, 1.12SCREW, 1.12
-
135813113 FOIL-FRT BUMPERFOIL-FRT BUMPER
-
145812414 FOIL-3.5 X 3.5FOIL-3.5 X 3.5
Все узлы модели:
- AIR INTAKE SYSTEM
- BRAKE ASSEMBLY
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CARBURETOR - LOWER
- CARBURETOR - UPPER
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CHASSIS ASSEMBLY
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER - L.H.
- FENDER - R.H.
- • FRONT BUMPER W/NOSEPAN
- FUEL PUMP W/LINES
- FUEL TANK
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD - SCREENS - HINGES
- HOOD ASSEMBLY W/ HEADLIGHT
- OIL PUMP W/LINES
- OIL TANK ASSEMBLY
- REED VALVE W/CARB ADAPTOR
- SEAT W/ TAILLIGHT
- SIDE PANELS
- SKI ASSEMBLY
- SPEEDOMETER W/INDICATOR LIGHTS
- STARTER - RECOIL ASSEMBLY
- STEERING - LOWER W/TIE RODS
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SWAYBAR
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
- WIRING HARNESS
