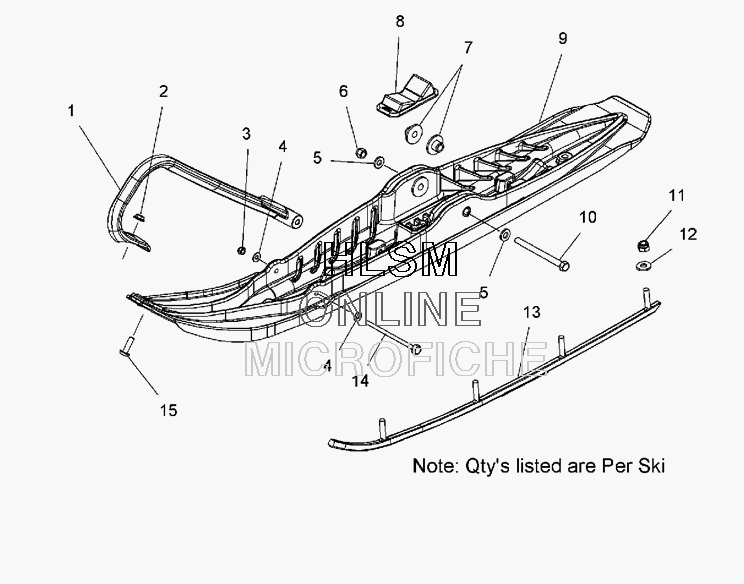

SKI ASSEMBLY для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска`
![](/wa-data/public/shop/sheme/polaris/snow/6bc6b44a-246e-4279-8501-193cf0f5f939.gif)
-
№АртикулНазвание
-
15435681-070 TOE-PLASTIC SKI, BLACKTOE-PLASTIC SKI, BLACK
-
27542321 NUT, FLANGENUT, FLANGE
-
37542122 NUT-NYLOKNUT-NYLOK
-
47558301 WASHER, FLATWASHER, FLAT
-
57556130 WASHER-.406X1.25X.125WASHER-.406X1.25X.125
-
67547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
75134797 BUSHING-PLSTC SKI, .390 ID, LONGBUSHING-PLSTC SKI, .390 ID, LONG
-
85413116 STOP-SKI RUBBER, CRSTOP-SKI RUBBER, CR
-
91822933-070 ASM-SKI, IQ2 TRAK, SVC, BLACK [INCL 7]ASM-SKI, IQ2 TRAK, SVC, BLACK [INCL 7]
-
107518481 SCR-3/8-24X6.00-HXCP-GR8-YSCR-3/8-24X6.00-HXCP-GR8-Y
-
117542324 NUT, NYLOKNUT, NYLOK
-
127555843 WASHER, WROUGHTWASHER, WROUGHT
-
132875954 CARBIDE SKAG 3'' 60 DEG. IQ [PAIR]CARBIDE SKAG 3'' 60 DEG. IQ [PAIR]
-
147518047 BOLT-1/4-20X4.75 HX/CP GRSBOLT-1/4-20X4.75 HX/CP GRS
-
157516317 SCREW-5/16-18X1.00, TORX, NYLONSCREW-5/16-18X1.00, TORX, NYLON
