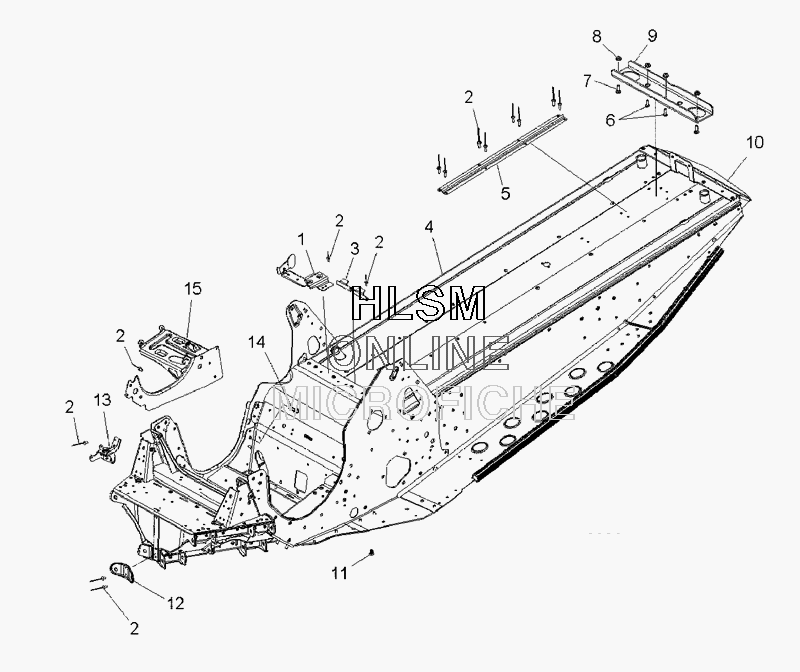

CHASSIS ASSEMBLY для Polaris 600 IQ SHIFT AND EURO (S09PB6FS/FE) - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    5249094 BRKT-OIL BOTTLE, LOWER
    BRKT-OIL BOTTLE, LOWER
  • 2
    7661637 RIVET, INTERLOCK, Z
    RIVET, INTERLOCK, Z
  • 3
    5249666 BRKT-AIRBOX, LOWER
    BRKT-AIRBOX, LOWER
  • 4
    1016331-309 ASM-CHASSIS, 121, RC6, HO, NAT
    ASM-CHASSIS, 121, RC6, HO, NAT
  • 5
    5251356 BRACKET
    BRACKET
  • 6
    7512297 SCREW
    SCREW
  • 7
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 8
    7542153 NUT, NYLOK, FLANGED
    NUT, NYLOK, FLANGED
  • 9
    52516251 BRKT-REINFORCE, TUNNEL
    BRKT-REINFORCE, TUNNEL
  • 10
    5250893 CLOSEOFF-REAR TUNNEL
    CLOSEOFF-REAR TUNNEL
  • 11
    7670067 CLIP, DART
    CLIP, DART
  • 12
    5247372 BRACE-FRT LOWER A-ARM
    BRACE-FRT LOWER A-ARM
  • 13
    1261403 BRKT CHASSIS TUNED PIPE
    BRKT CHASSIS TUNED PIPE
  • 14
    7517810 SCR, 5/16X24X3/4 TRXPNHD
    SCR, 5/16X24X3/4 TRXPNHD
  • 15
    1015042-067 BRACKET
    BRACKET
