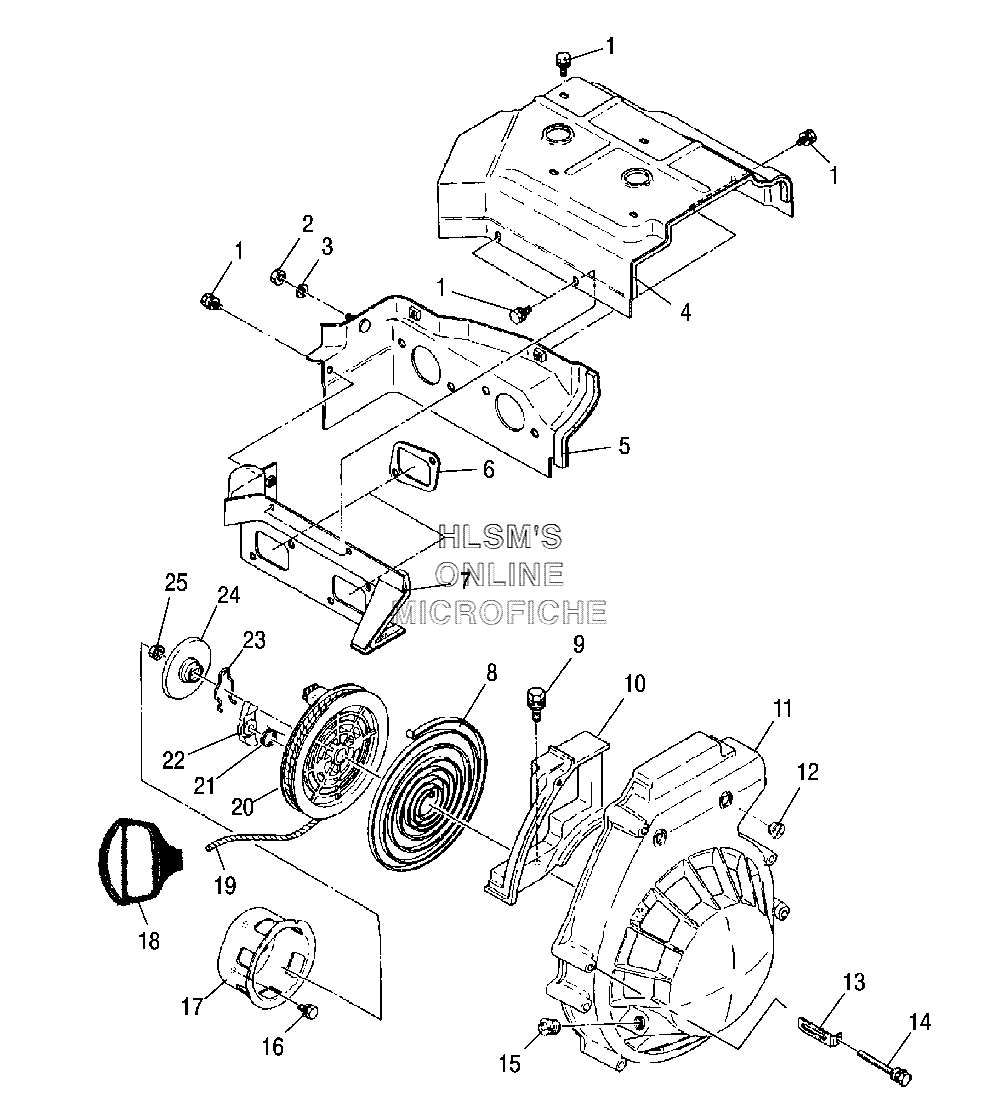

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска`
-
№АртикулНазвание
-
13085359 BOLT, FLANGEBOLT, FLANGE
-
23084375 NUTNUT
-
33080077 WASHER SPRINGWASHER SPRING
-
43084420 CYLINDER BAFFLE NO. 1 ASSYCYLINDER BAFFLE NO. 1 ASSY
-
53089504 CYLINDER BAFFLE NO. 2 ASSYCYLINDER BAFFLE NO. 2 ASSY
-
63085846 GASKET INTAKEGASKET INTAKE
-
73085847 CYLINDER BAFFLE 3 ASSY (INCL. 6)CYLINDER BAFFLE 3 ASSY (INCL. 6)
-
83083376 SPRING, SPIRALSPRING, SPIRAL
-
93081663 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
103083591 HOUSING, BLOWER #2HOUSING, BLOWER #2
-
113089467 RECOIL STARTER ASSY (INCL. 8, 15, 19 25)RECOIL STARTER ASSY (INCL. 8, 15, 19 25)
-
113083589 CASE, STARTER ASSYCASE, STARTER ASSY
-
123086792 PLUG, RUBBERPLUG, RUBBER
-
133083590 CLAMPCLAMP
-
143083729 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
153083107 GUIDE ROPEGUIDE ROPE
-
163081665 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
173083108 PULLEY STARTINGPULLEY STARTING
-
185431499-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
192870621 ROPE, 100 FT, NYLON STARTER (BULK, CUT TO FIT)ROPE, 100 FT, NYLON STARTER (BULK, CUT TO FIT)
-
203083377 REEL ASSYREEL ASSY
-
213083463 SPRING, RETURNSPRING, RETURN
-
223087207 RATCHETRATCHET
-
233083379 SPRING, FRICTIONSPRING, FRICTION
-
243083464 PLATE, FRICTIONPLATE, FRICTION
-
253083381 NUT, FLANGENUT, FLANGE
