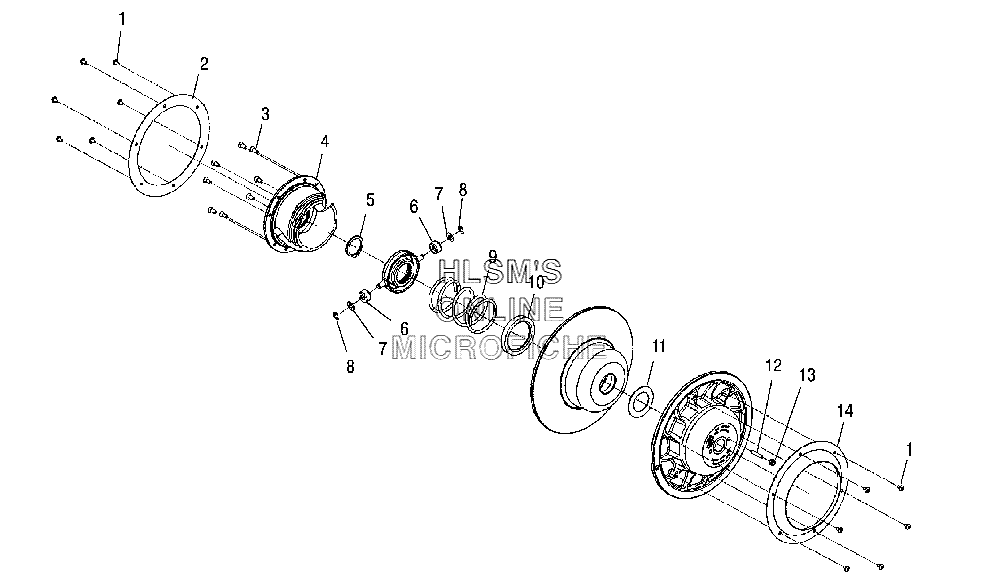

CLUTCH - DRIVEN для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска
-
№АртикулНазвание
-
17518023 SCREWSCREW
-
25246216 PLATE WINDAGE MOVPLATE WINDAGE MOV
-
33233996 SCREW, CAP TORXSCREW, CAP TORX
-
45134263 RAMP DRIVEN (54/38 .25)RAMP DRIVEN (54/38 .25)
-
57710522 RETAINING RING EXT (1.500)RETAINING RING EXT (1.500)
-
65434534 ROLLERROLLER
-
77556226 WASHER THRUSTWASHER THRUST
-
87710523 RETAINING E-RING (.375)RETAINING E-RING (.375)
-
97043064 SPRING DRIVEN CLUTCH (LEFT/BLUE/BLACK)SPRING DRIVEN CLUTCH (LEFT/BLUE/BLACK)
-
107556227 WASHER THRUSTWASHER THRUST
-
113234033 SPACERSPACER
-
123234228 SCREW SET HEXAGONSCREW SET HEXAGON
-
133233289 NUT, FLEXLOCKNUT, FLEXLOCK
-
145246217 PLATE WINDAGE STATPLATE WINDAGE STAT
-
-1322433 DRIVEN CLUTCH ASSY, BASIC # 216 HP (INCL. 3, 5 8, 10-13)DRIVEN CLUTCH ASSY, BASIC # 216 HP (INCL. 3, 5 8, 10-13)
