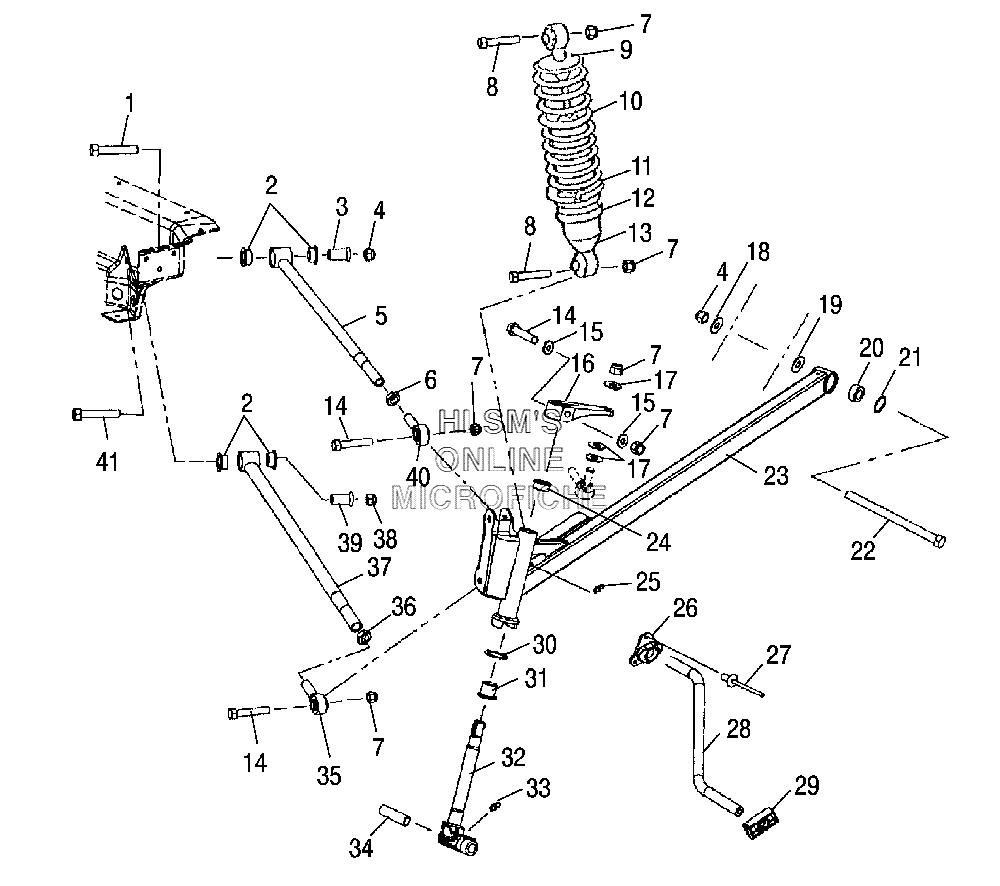

SUSPENSION - FRONT для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска

№

Артикул

Название
1

7517980 BOLT, HEXAGON CAP

BOLT, HEXAGON CAP

1 000 ₽
2

5434036 BUSHING, PIVOT (INNER)

BUSHING, PIVOT (INNER)

2 560 ₽
3

5132779 BUSHING SHOULDER

BUSHING SHOULDER

1 730 ₽
4

7547066 NUT, NYLOK

NUT, NYLOK

460 ₽
5

1820679-385 WELD RADIUS ROD (UPPPER/SILVER)

WELD RADIUS ROD (UPPPER/SILVER)

12 480 ₽
6

7542520 NUT, JAM

NUT, JAM

110 ₽
7

7542439 NUT, NYLOK

NUT, NYLOK

110 ₽
8

7515433 SCREW

SCREW

250 ₽
9

5630580 RETAINER, SPRING, SLOTTED

RETAINER, SPRING, SLOTTED

5 620 ₽
10

7041551-067 SPRING COMP (BLACK)

SPRING COMP (BLACK)

12 480 ₽
11

5431734 RING, SPRING PRELOAD ADJUST

RING, SPRING PRELOAD ADJUST

8 740 ₽
12

1500063 RETAINER, SPRING, BODY

RETAINER, SPRING, BODY

8 530 ₽
13

7041932 SHOCK IFS, NITREX

SHOCK IFS, NITREX

37 440 ₽
14

7517583 SCREW, HEXAGON CAP

SCREW, HEXAGON CAP

630 ₽
15

7555832 WASHER

WASHER

630 ₽
16

5132728 ARM STEERING, MACHINED

ARM STEERING, MACHINED

16 640 ₽
17

7555797 WASHER, FLAT

WASHER, FLAT

460 ₽
18

7555820 WASHER, FLAT

WASHER, FLAT

460 ₽
19

5132364 CUP, TRAILING ARM MOUNT

CUP, TRAILING ARM MOUNT

2 500 ₽
20

7061042 BEARING SPHERICAL, PLASTIC (7/16)

BEARING SPHERICAL, PLASTIC (7/16)

6 660 ₽
21

7710437 RING, RETAINING

RING, RETAINING

750 ₽
22

7512099 SCREW

SCREW

3 120 ₽
23

1821165-385 TRAILING ARM ASSY (SILVER) (INCL. 20, 21)

TRAILING ARM ASSY (SILVER) (INCL. 20, 21)

60 320 ₽
23

1821166-385 TRAILING ARM ASSY (SILVER) (INCL. 20, 21)

TRAILING ARM ASSY (SILVER) (INCL. 20, 21)

58 240 ₽
24

3573909 BUSHING FLANGE

BUSHING FLANGE

420 ₽
25

7080433 FITTING, LUBRICATION, THREADED

FITTING, LUBRICATION, THREADED

250 ₽
26

5433814 BUSHING, TORSION BAR (9/16'')

BUSHING, TORSION BAR (9/16'')

5 160 ₽
27

7621452 RIVET

RIVET

250 ₽
28

5244557-067 BAR, TORSION (9/16) (42.5'') (BLACK)

BAR, TORSION (9/16) (42.5'') (BLACK)

13 520 ₽
29

5434371 SLIDE TORSION BAR, ANTIRATT (9/16)

SLIDE TORSION BAR, ANTIRATT (9/16)

4 370 ₽
30

7556509 BUSHING

BUSHING

60 ₽
31

3574208 BUSHING, FLANGED

BUSHING, FLANGED

580 ₽
32

6230225-067 SHAFT SPINDLE WITH STEER STOP (BLACK)

SHAFT SPINDLE WITH STEER STOP (BLACK)

25 380 ₽
33

7080306 FITTING, LUBE WITH BALL CHECK

FITTING, LUBE WITH BALL CHECK

880 ₽
34

5010158 BUSHING, PIVOT

BUSHING, PIVOT

2 140 ₽
35

7061060 ROD END, RADIUS (1/2)

ROD END, RADIUS (1/2)

9 780 ₽
36

7542711 NUT JAM

NUT JAM

110 ₽
37

1820677-385 WELD RADIUS ROD, (LOWER/SILVER)

WELD RADIUS ROD, (LOWER/SILVER)

12 480 ₽
38

7547065 NUT NYLOK

NUT NYLOK

630 ₽
39

5132780 BUSHING SHOULDER (.505X.750X1.215)

BUSHING SHOULDER (.505X.750X1.215)

1 730 ₽
40

7061061 ROD END, RADIUS (7/16)

ROD END, RADIUS (7/16)

9 780 ₽
41

7512684 BOLT

BOLT

1 250 ₽
