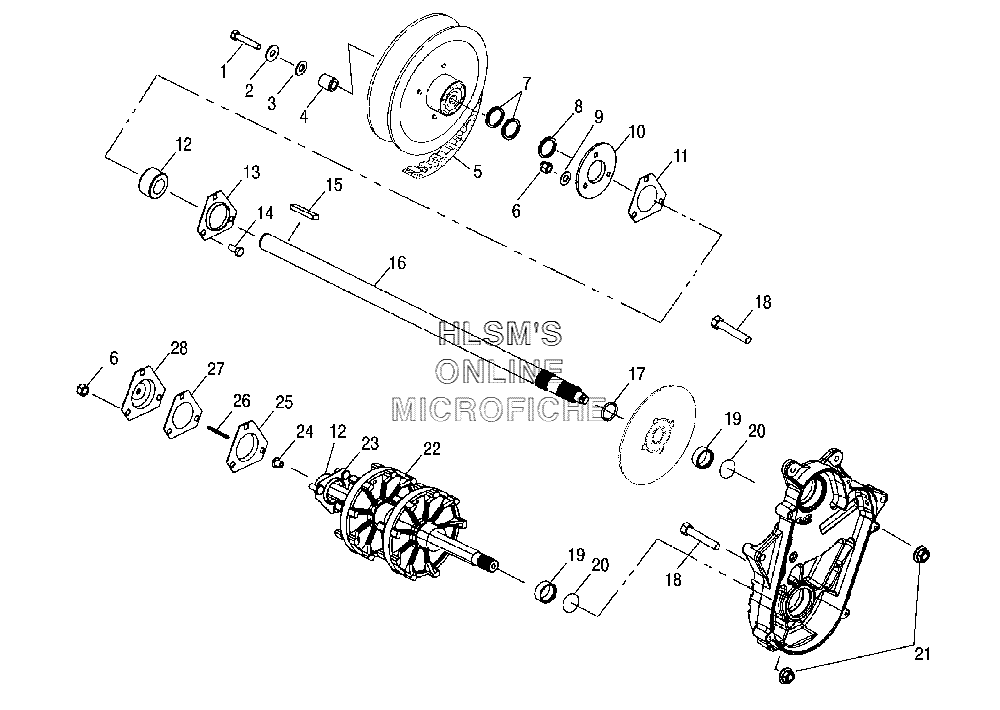

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 340 Touring (S06NT3AS) - 2006 года выпуска
-
№АртикулНазвание
-
17517820 BOLT, HEXAGONBOLT, HEXAGON
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020291 SPACERSPACER
-
53211078 BELT DRIVEBELT DRIVE
-
67542324 NUT, NYLOKNUT, NYLOK
-
77555917 WASHERWASHER
-
87556509 BUSHINGBUSHING
-
97558402 WASHER, FLATWASHER, FLAT
-
105241359 FLANGE, RELUBE WITH ZERKFLANGE, RELUBE WITH ZERK
-
107080561 FITTING, LUB/VENFITTING, LUB/VEN
-
115811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
123514525 BEARINGBEARING
-
135222751 FLANGETTEFLANGETTE
-
147512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
157721116 KEYKEY
-
161332283 JACKSHAFT WITH BEARING ASSY (15 TEETH) (1.06) (INCL. 12, 17)JACKSHAFT WITH BEARING ASSY (15 TEETH) (1.06) (INCL. 12, 17)
-
177710422 RING, RETAININGRING, RETAINING
-
187515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
195020588 SLEEVE, SEALSLEEVE, SEAL
-
205410613 O-RINGO-RING
-
217542423 NUT, FLANGENUT, FLANGE
-
221590370 DRIVESHAFT ASSY (8 TEETH) (SMOOTH) (INCL. 23, 24)DRIVESHAFT ASSY (8 TEETH) (SMOOTH) (INCL. 23, 24)
-
231012945 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
243280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
255243529 FLANGETTE OFFSET WITH HOLEFLANGETTE OFFSET WITH HOLE
-
263280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
275830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
283280197 ADAPTER, DRIVE WITH ZERKADAPTER, DRIVE WITH ZERK
